HYGIENICPRO GRATING SQUARE - (790.218.000.60 S)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.60 S
EAN no.: 5705499138658
Size: 250x250

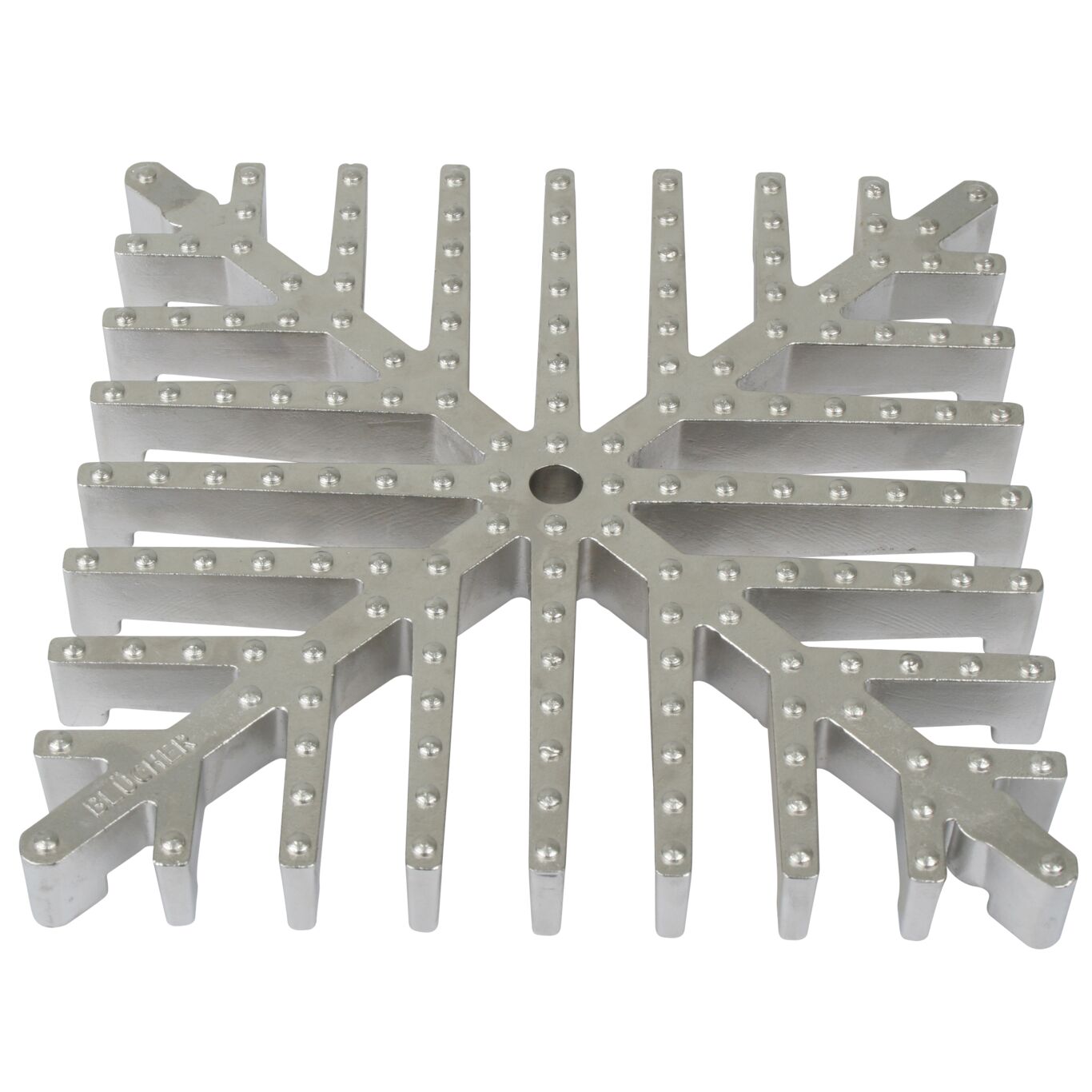

HYGIENICPRO GRATING SQUARE
-Grating: 220x220mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load Class EN1433 | A15 |
| Material | AISI 316L |
| Material (EN) | EN 1.4408 |
| Minimum Height (mm) | 24 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 250x250 |
| Size of Frame (Inch) | 9-7/8 x 9-7/8 |
| Weight (kg) | 3.31 |
| Weight (lbs) | 7.3 |
-
Approval Information
For approval information, please refer to the below approval certificates.
