ADJUSTABLE SHOWER DRAIN SQUARE - (155.300.110 S)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 155.300.110 S
EAN no.: 5705499123845
VVS no.: 153594346

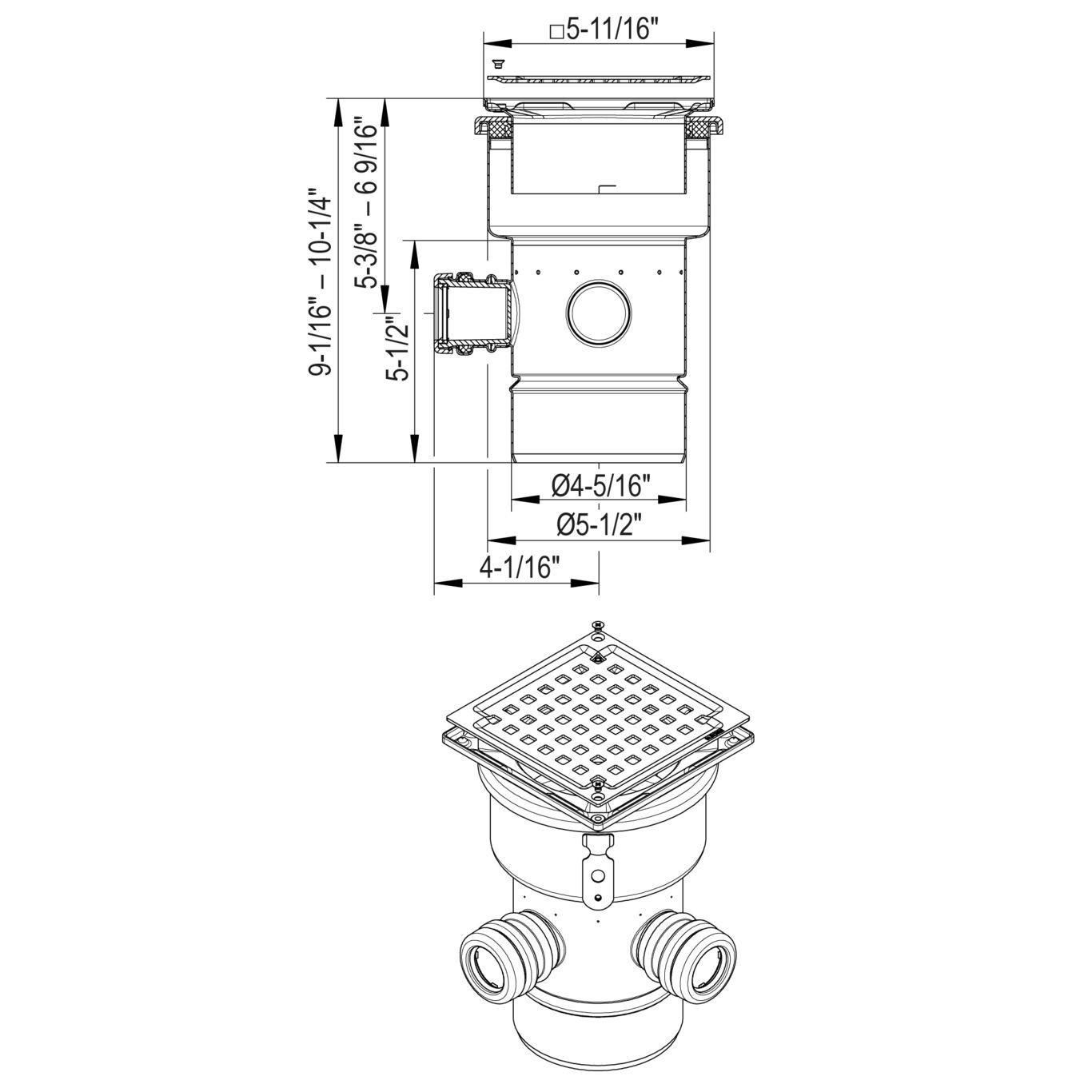

Size: 145x145

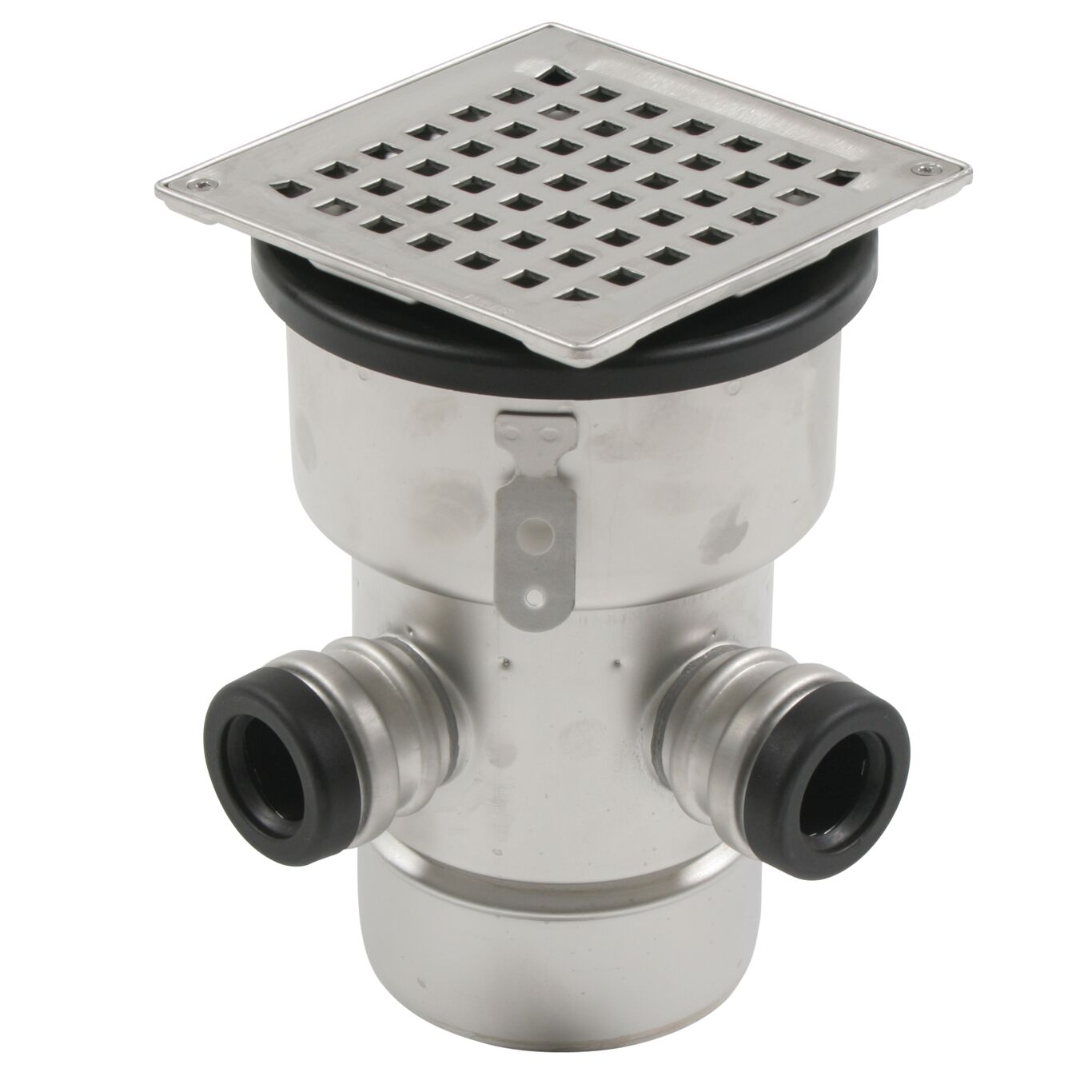

ADJUSTABLE SHOWER DRAIN SQUARE
-With side inlets
-Floor: concrete and tiled
-No membrane, frame: 5-3/4 x 5-3/4 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 260 |
| Membrane Type | No Membrane |
| Number of Inlets | 2 (Ø32/40mm) |
| Number of Inlets (Inch) | 2 (Ø1-1/4 inch, 1-1/2 inch) |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 145x145 |
| Size of Frame (Inch) | 5-3/4 x 5-3/4 |
| Weight (kg) | 1.58 |
| Weight (lbs) | 3.48 |
-
Approval Information
For approval information, please refer to the below approval certificates.
