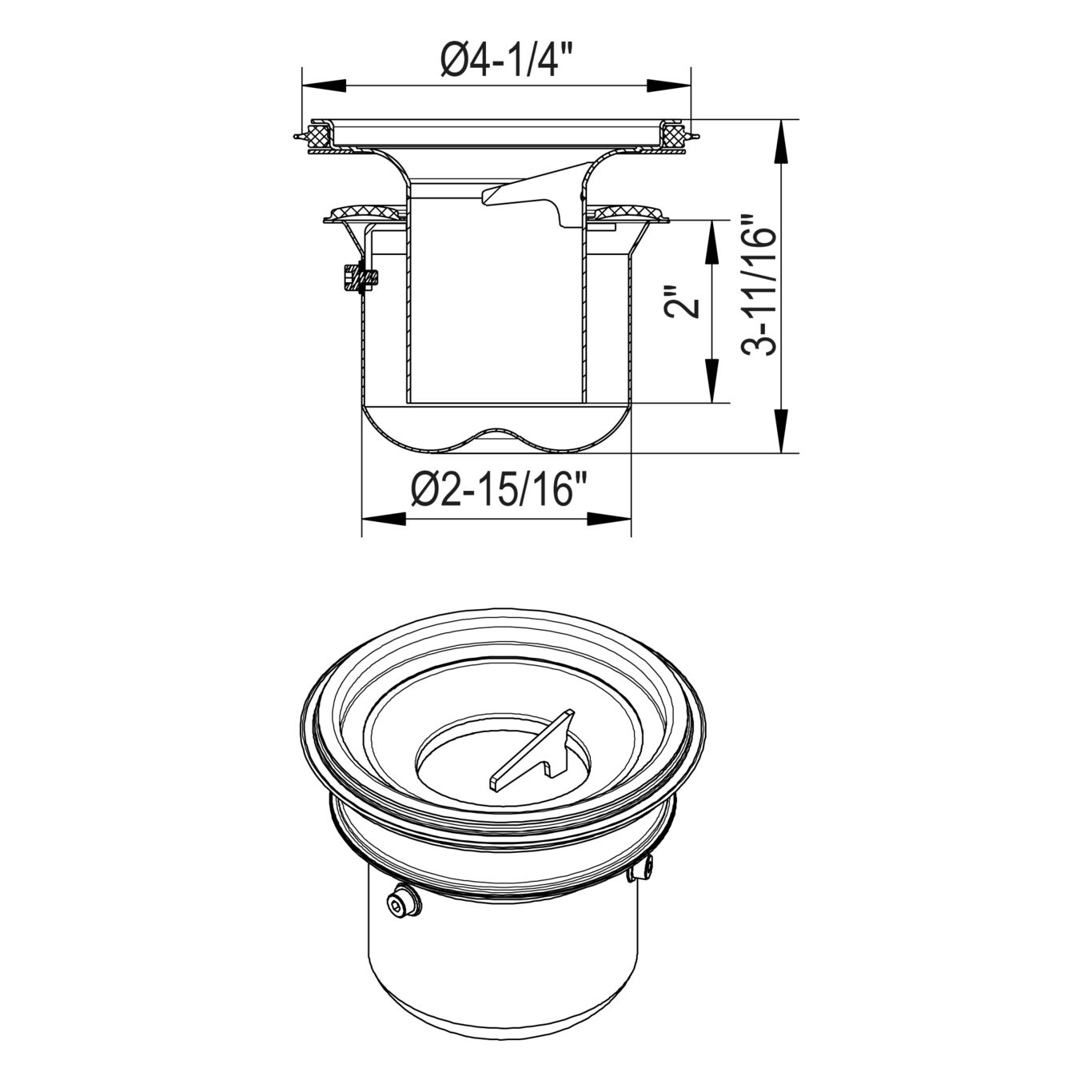

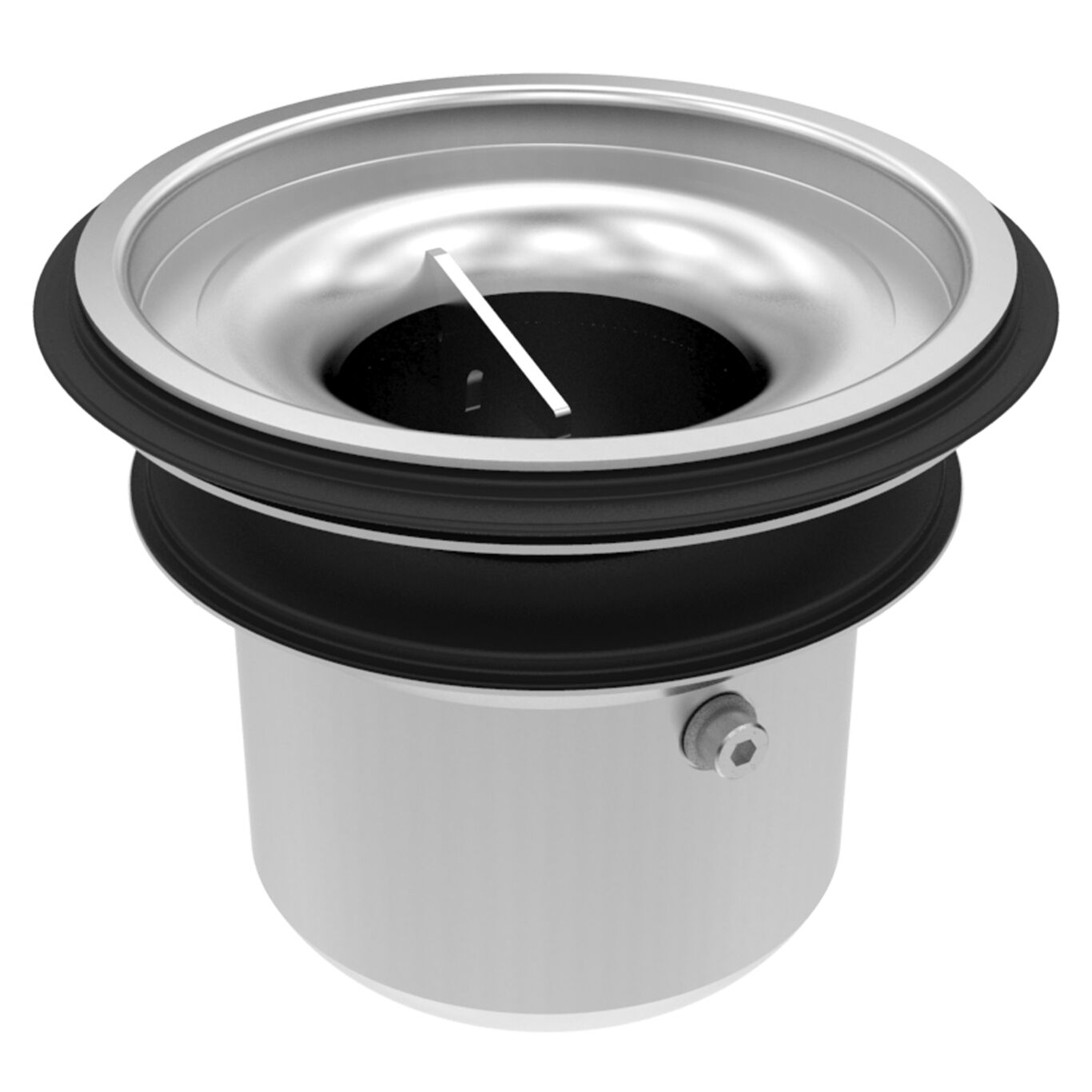

REMOVABLE WATER TRAP WITH ODOUR STOP - (503.001.110)

Part Of the Series: Water trap-110

Type no.: 503.001.110

EAN no.: 5705499134728

VVS no.: 153415546

RSK no.: 7120299

NRF no.: 3394665

LVI no.: 3304911


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic / Industrial
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 1.3
Minimum Height (mm) 93
Outlet dia. (mm) 108
Outlet Diameter (Inch) 4
Water Seal Height (mm) 51
Weight (kg) 0.37
Weight (lbs) 0.82
