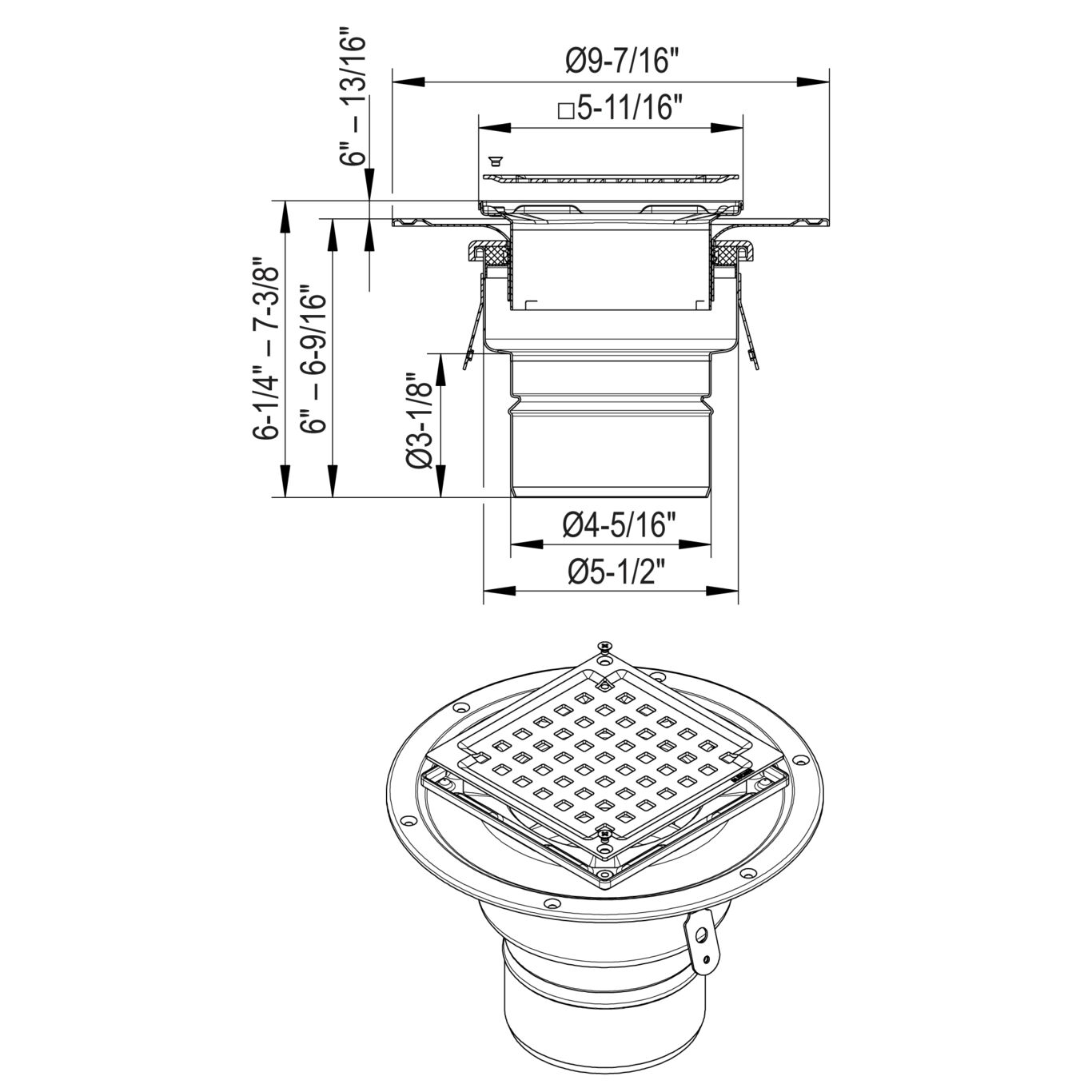

ADJUSTABLE SHOWER DRAIN SQUARE - (350.300.110)

Part Of the Series: Drain-Liquid membrane-145

Type no.: 350.300.110

EAN no.: 5705499105360

VVS no.: 153585116

RSK no.: 7119396

NRF no.: 3394686

Size: 145x145


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 188
Membrane Type Liquid Membrane
Number of Inlets 0
Number of Screw Holes 2
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 1.5
Weight (lbs) 3.31
