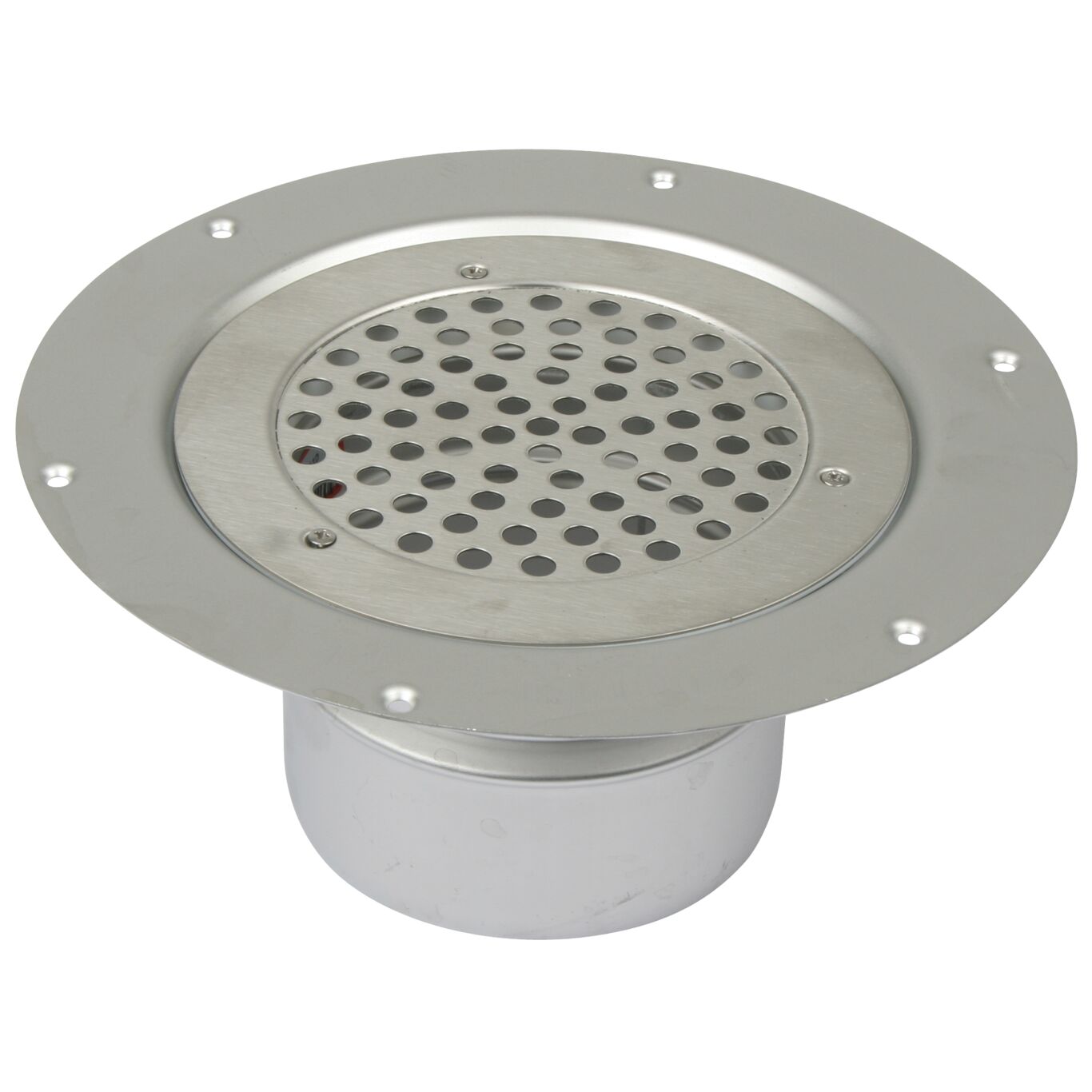

SHOWER DRAIN CIRCLE - (260.300.110)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 260.300.110
EAN no.: 5705499105209
VVS no.: 153610316
NRF no.: 3394599
Size: Ø155

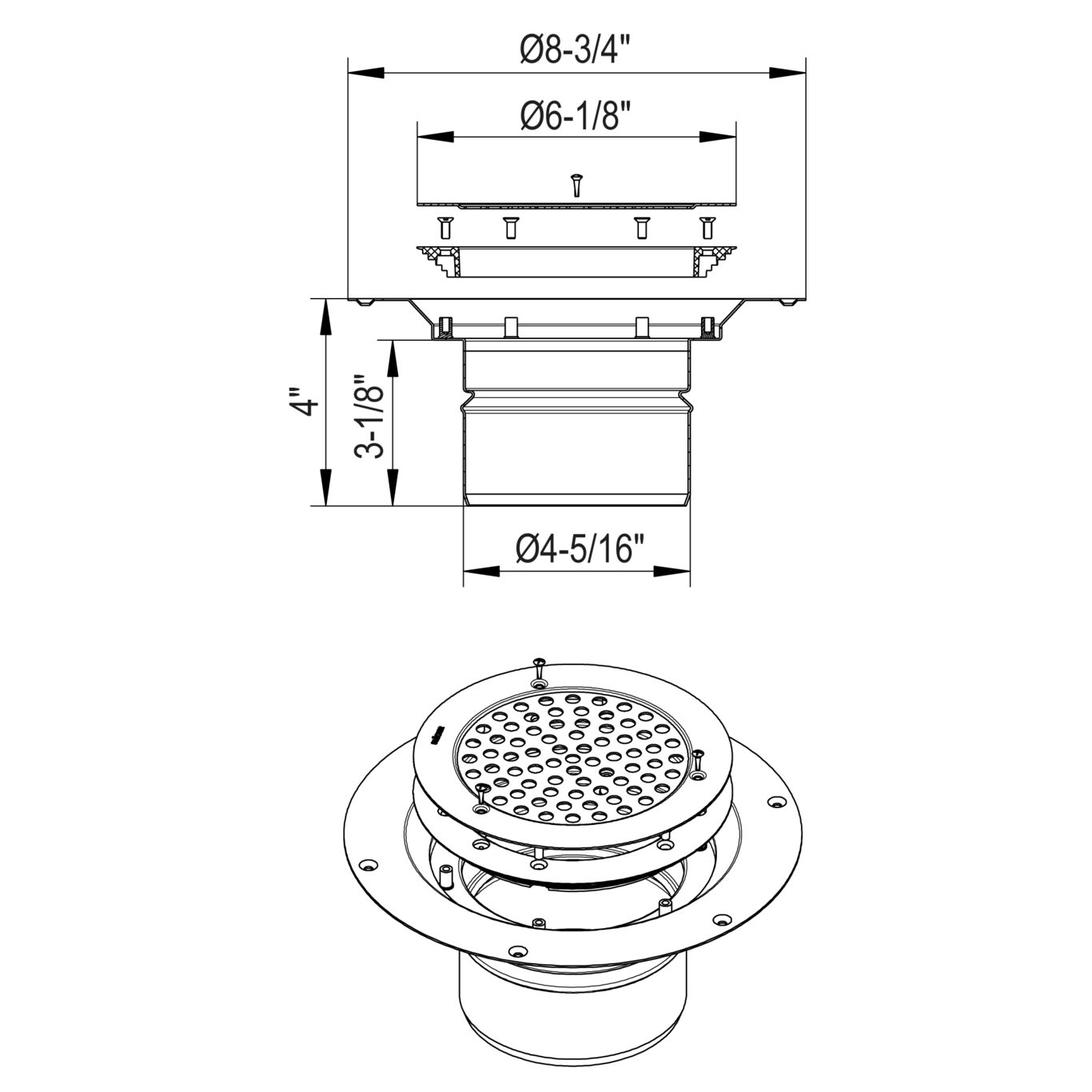

SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø6-1/8 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 101 |
| Number of Inlets | 0 |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 0.65 |
| Weight (lbs) | 1.43 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
SE - RISE 0193-98
DK - VA 2.42/19049-22
HACCP Food Safety Programme - Europe
BLÜCHER® Drains EPD
NO - PS3199
FI - Tyyppihyväksyntäpäätös EUF129-23001919-TH1 Declaration of Conformity - EN1253-001 Declaration of Conformity - BSEN1253-002 PL - Hygienic Certificate - All Products
