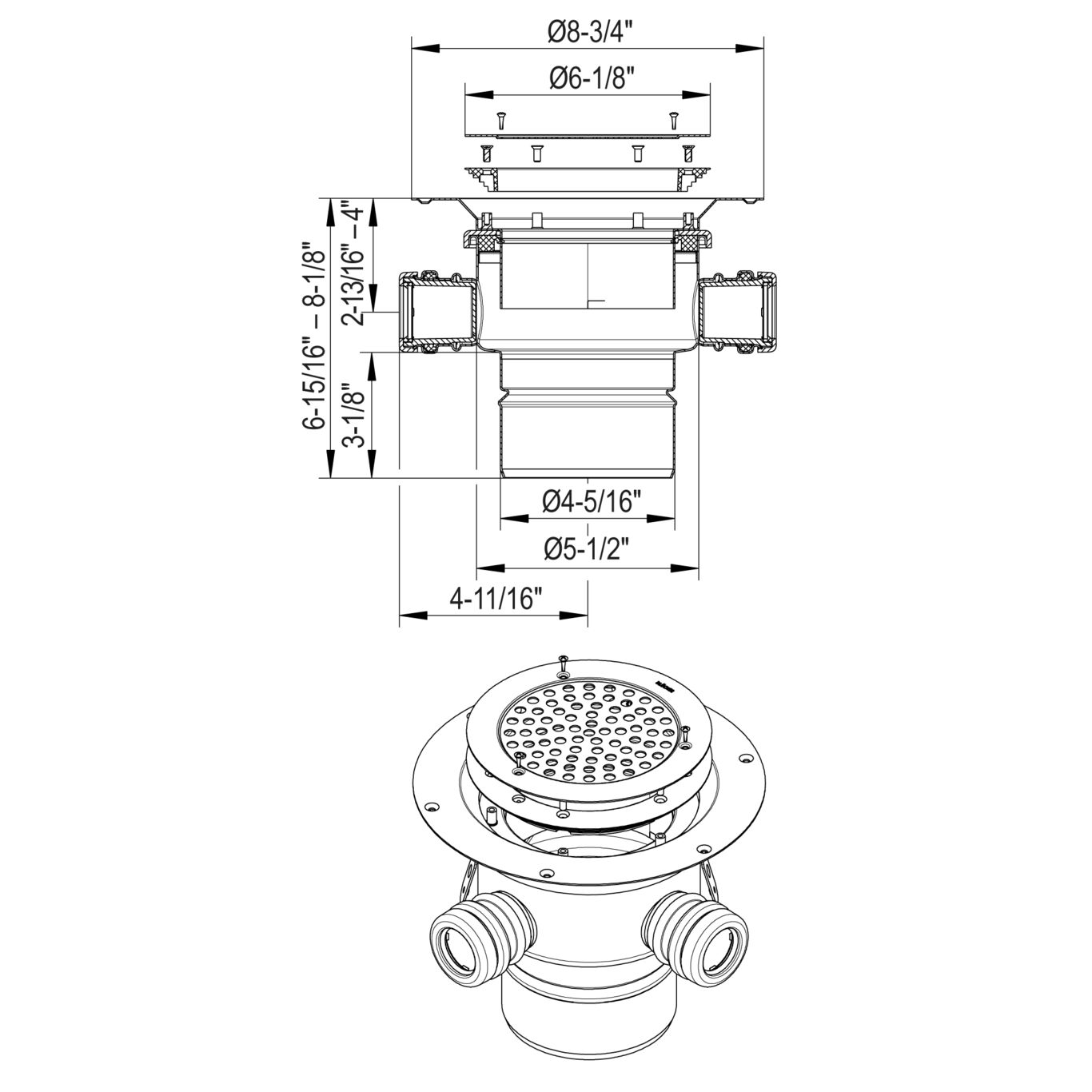

ADJUSTABLE SHOWER DRAIN CIRCLE - (251.300.110 S)

Part Of the Series: Drain-Vinyl-155

Type no.: 251.300.110 S

EAN no.: 5705499105179

VVS no.: 153612246

LVI no.: 3304243

Size: Ø155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Vinyl
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 316L
Material (EN) EN 1.4404
Maximum Height (mm) 206
Minimum Height (mm) 176
Number of Inlets 3 (Ø32/40mm)
Number of Inlets (Inch) 3 (Ø1-1/4 inch, 1-1/2 inch)
Number of Screw Holes 3
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Round
Size (mm) Ø155
Size of Frame (Inch) Ø6-1/8
Weight (kg) 1.56
Weight (lbs) 3.44
