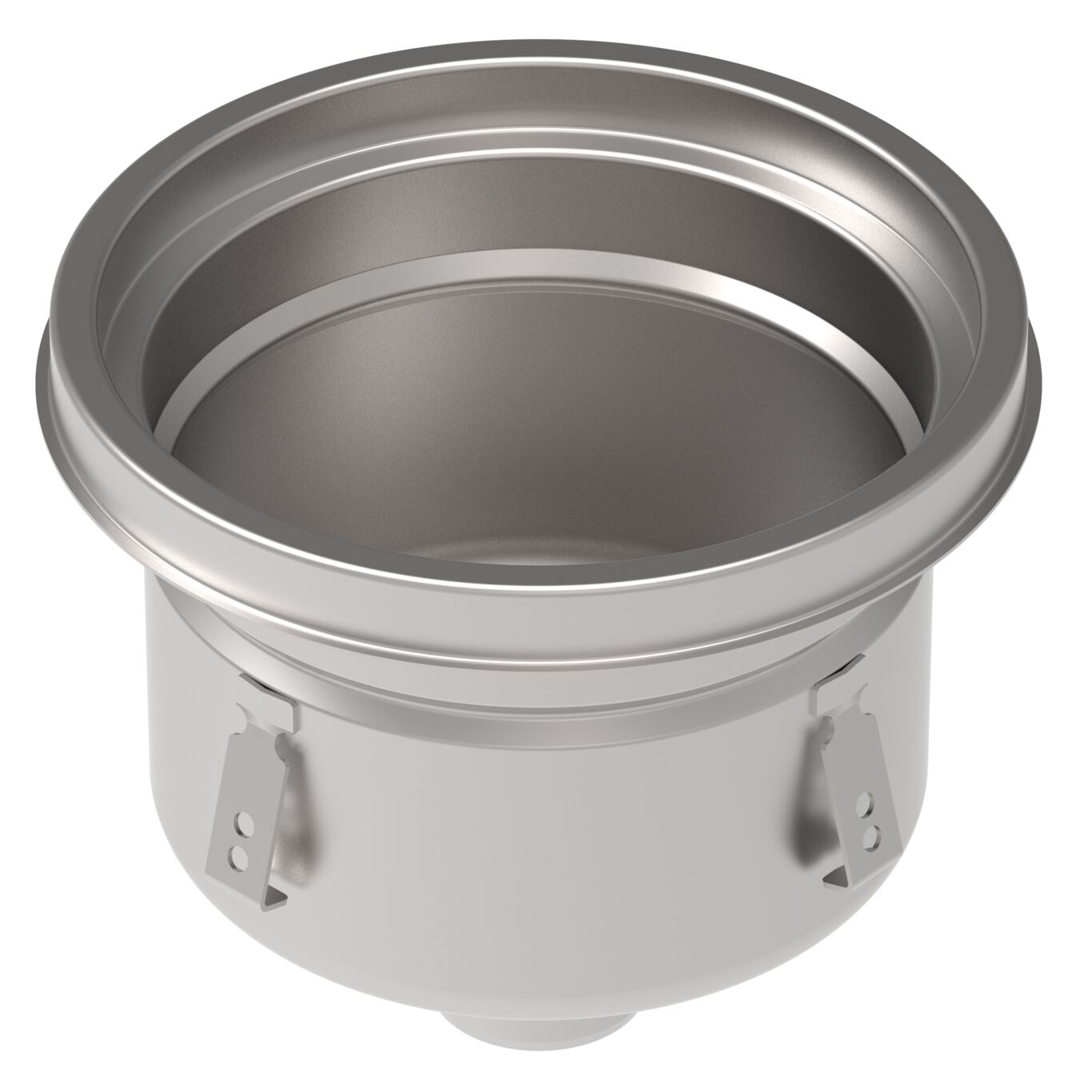

INDUSTRIAL DRAIN, LOW - (766.503.075)

Part Of the Series: Drain-No membrane-305

Type no.: 766.503.075

EAN no.: 5705499110487

LVI no.: 3303585

Size: Ø305


Download CAD Collections

2d DWG files

3d STP files

Product Specification
Adjustable No
Field of Application Industrial
Floor Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane

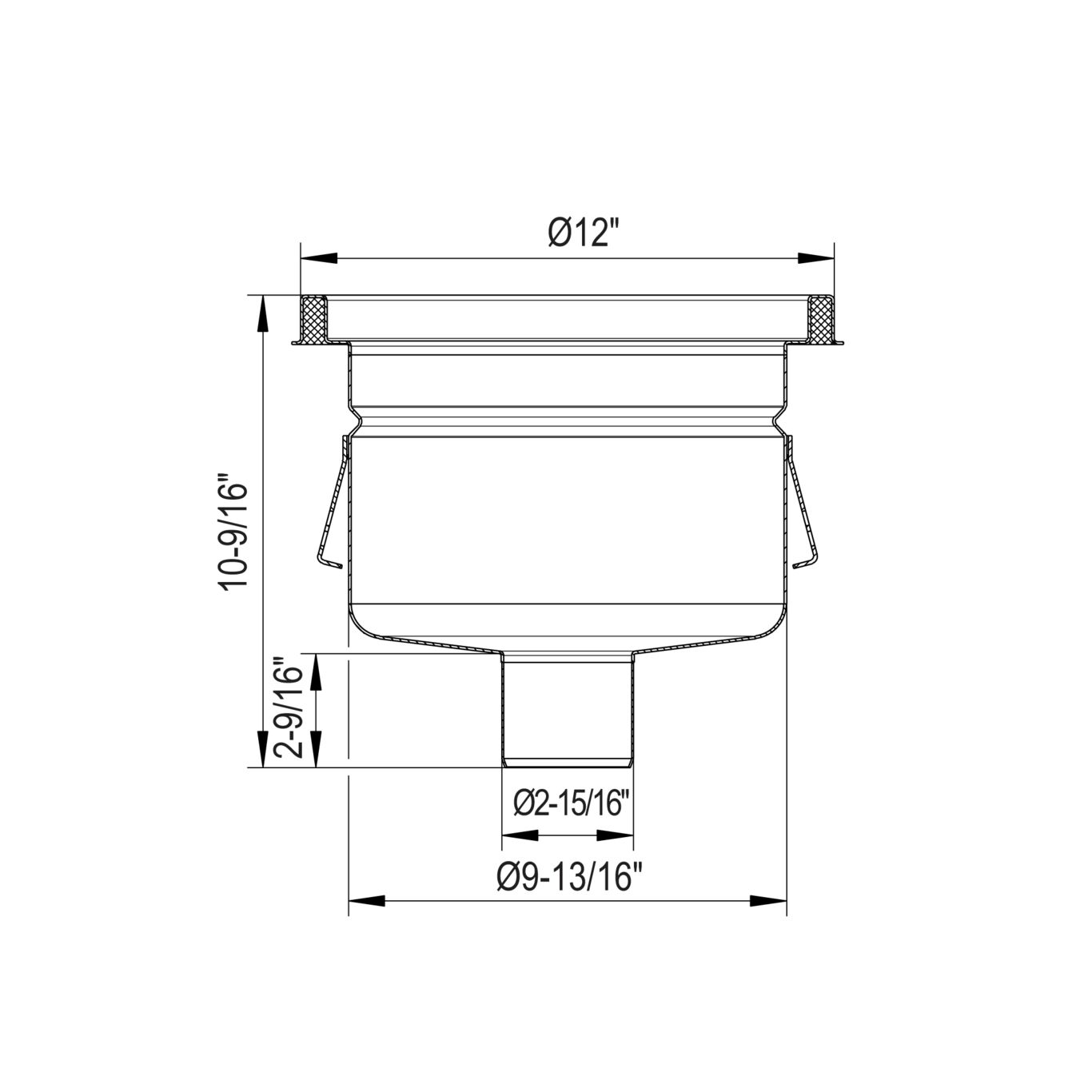

Minimum Height (mm) 269
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Vertical
Shape Round
Size (mm) Ø305
Size of Frame (Inch) Ø12
Weight (kg) 5.04
Weight (lbs) 11.11
