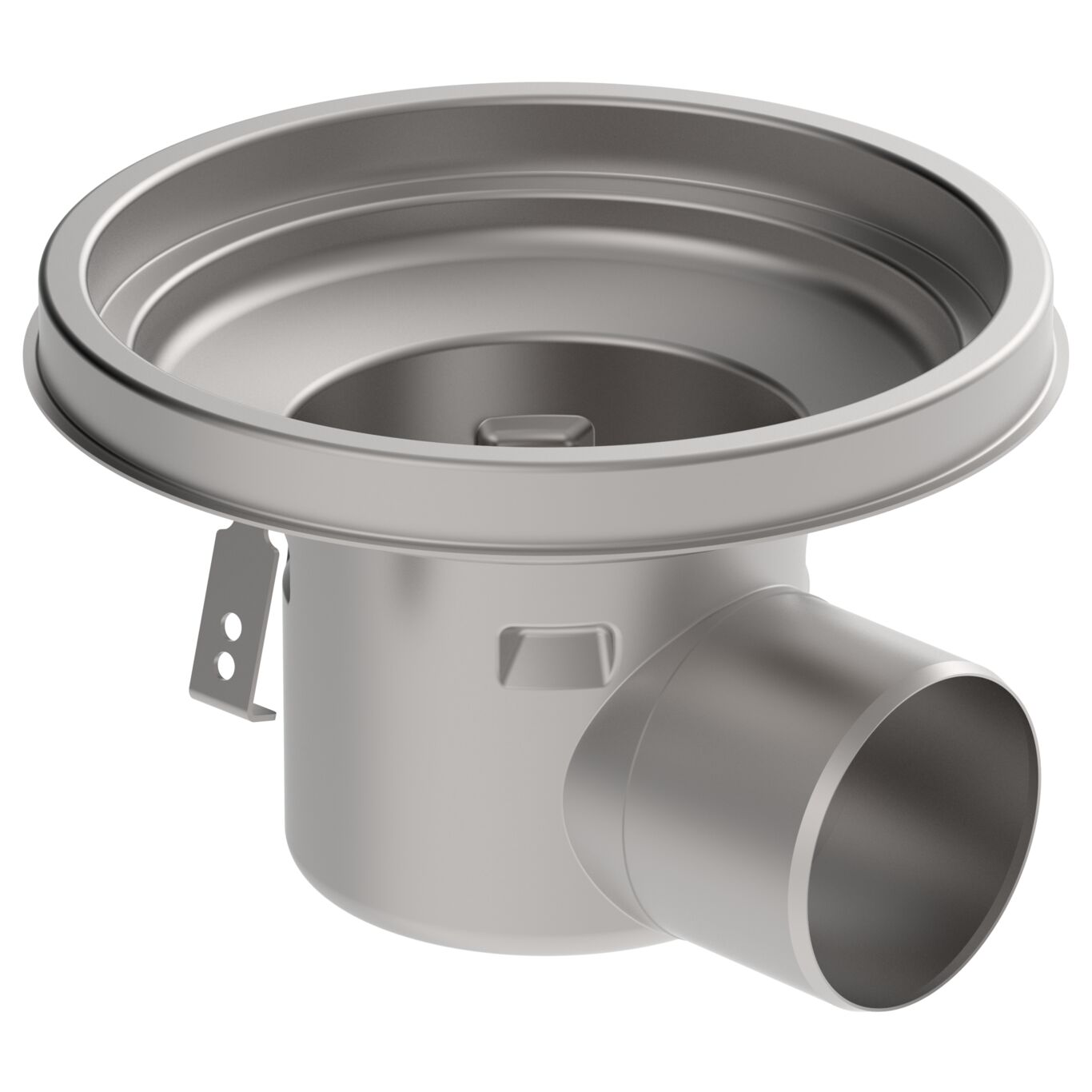

HYGIENICPRO INDUSTRIAL DRAIN, LOW - (756.513.110 S)

Part Of the Series: Drain-No membrane-305

Type no.: 756.513.110 S

EAN no.: 5705499137873

VVS no.: 153043416

LVI no.: 3305609

Size: Ø305


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Adjustable No
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Minimum Height (mm) 198
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Horizontal
Shape Round
Size (mm) Ø305
Size of Frame (Inch) Ø12
Weight (kg) 3.39
Weight (lbs) 7.47
