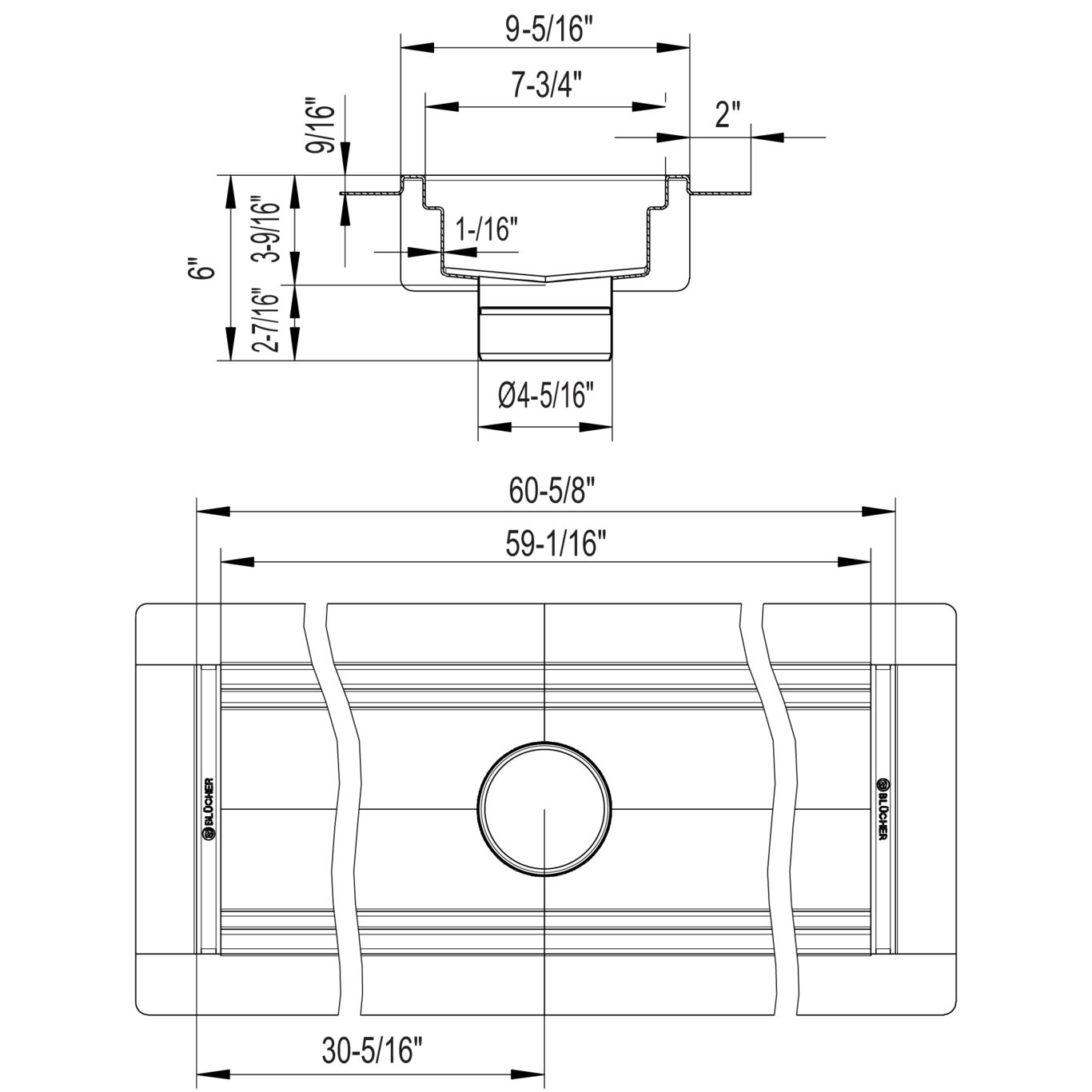

CHANNEL 200x1500 CENTER OUTLET - (674DH015-08BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674DH015-08BA

EAN no.: 5705499130966

Size: 200x1500


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 200x1500
Size of Frame (Inch) 7-7/8 x 59
Weight (kg) 14.07
Weight (lbs) 31.02
