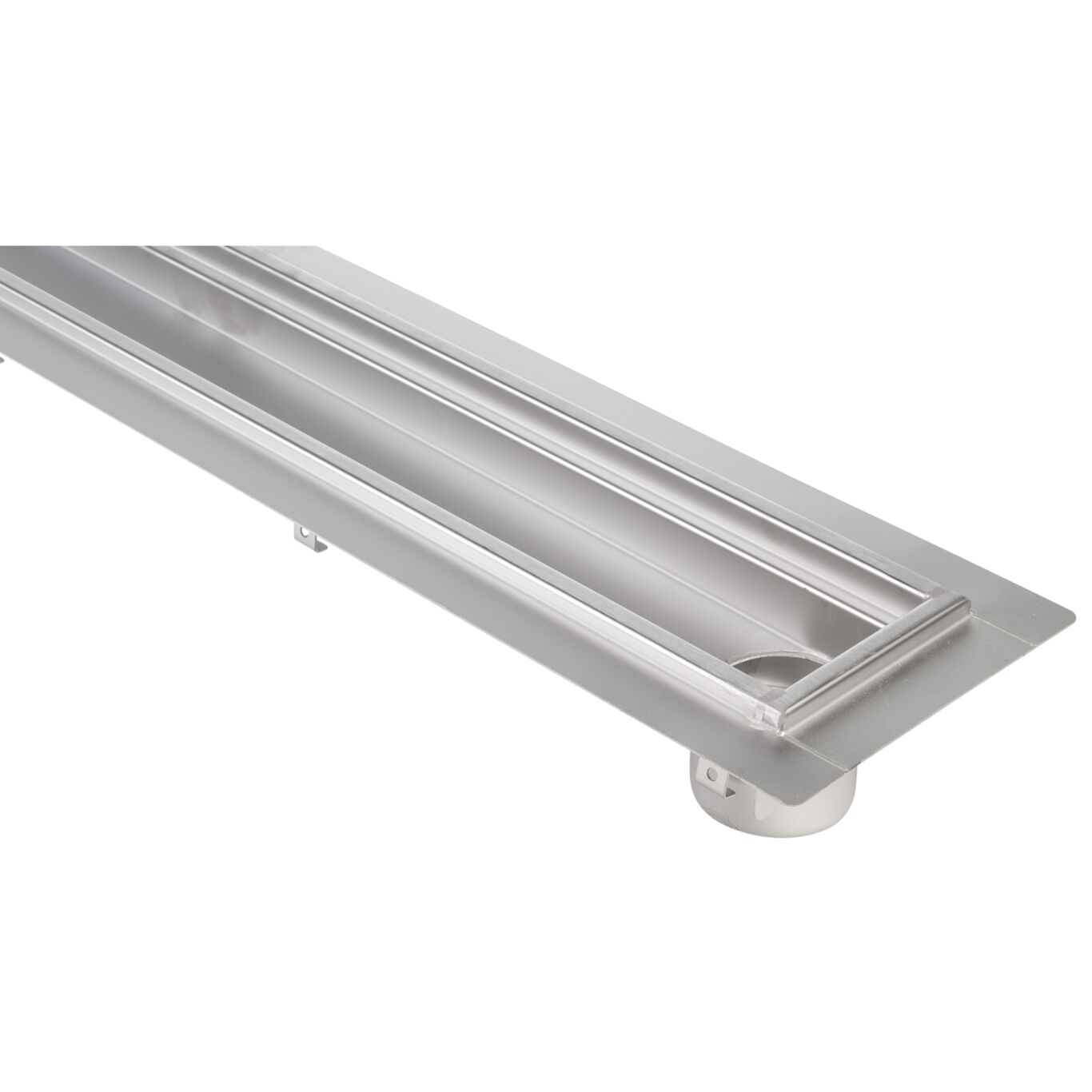

CHANNEL 150x3000 END OUTLET - (674CH030-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674CH030-00BA

EAN no.: 5705499130850

NRF no.: 3397122

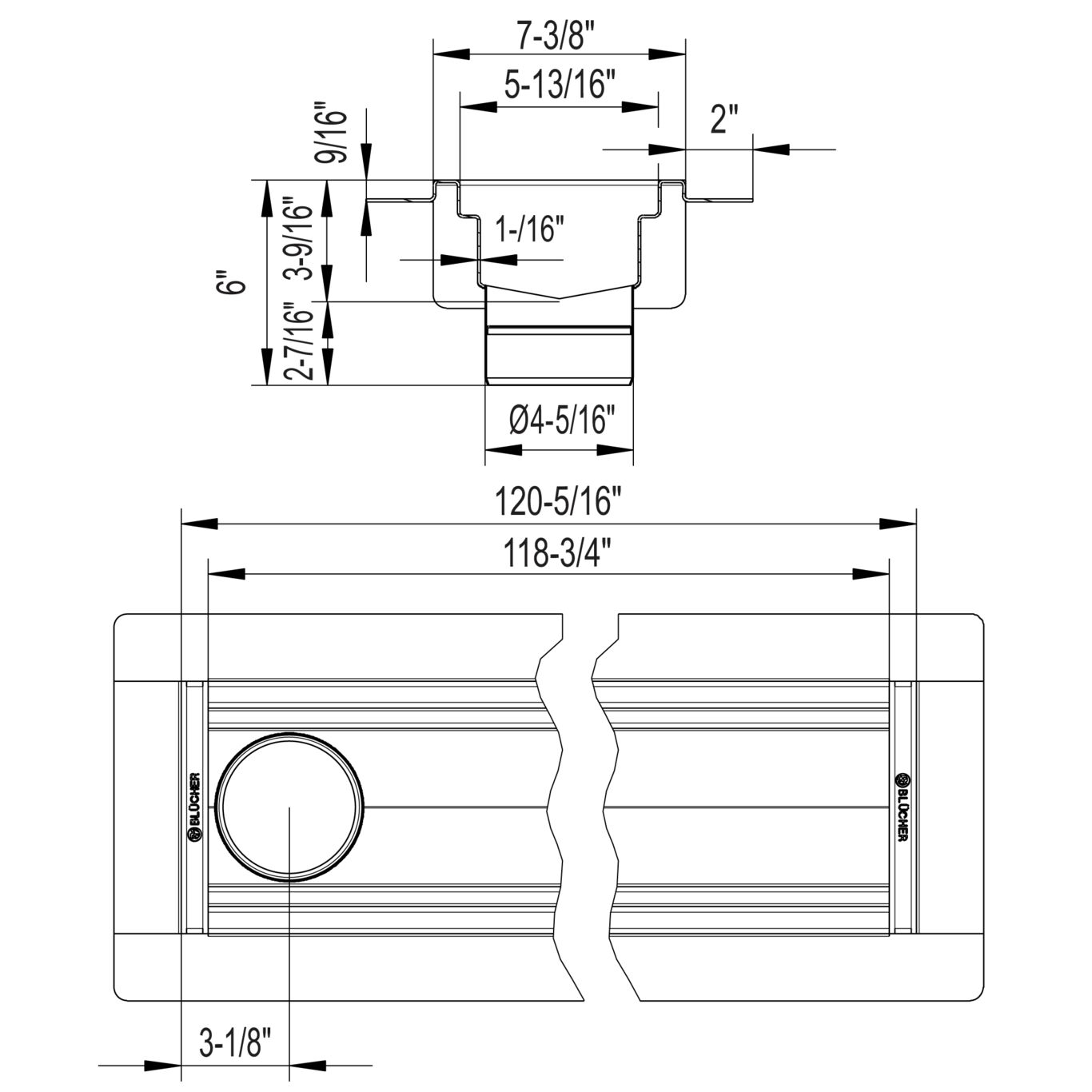

Size: 150x3000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 150x3000
Size of Frame (Inch) 5-7/8 x 118-1/8
Weight (kg) 22.03
Weight (lbs) 48.57
