CHANNEL 150x1400 END OUTLET - (674CH014-00BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 674CH014-00BA
EAN no.: 5705499135091
RSK no.: 7121796
NRF no.: 3397116
LVI no.: 3304160

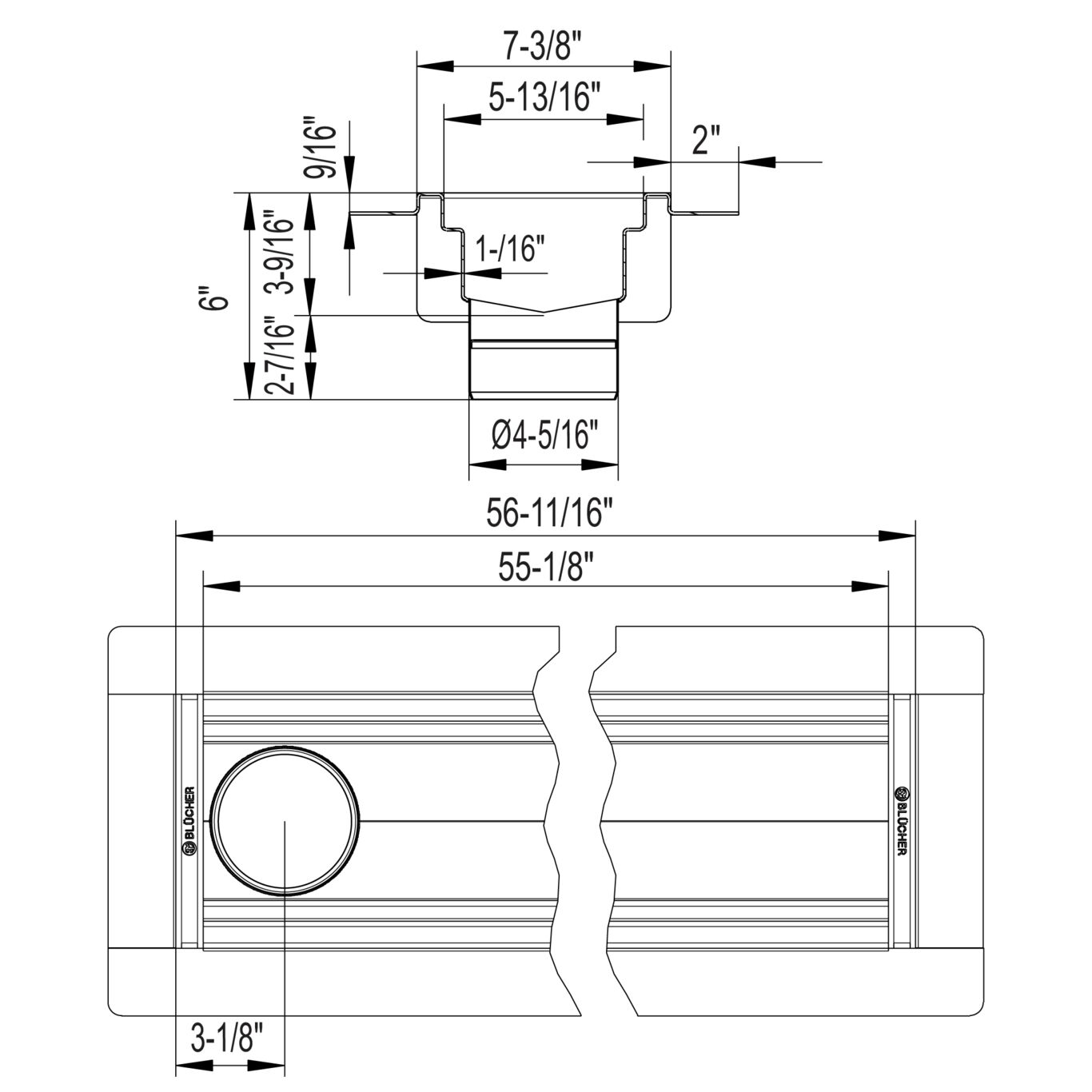

Size: 150x1400
CHANNEL 5-7/8 x 55-1/8 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x1400 |
| Size of Frame (Inch) | 5-7/8 x 55-1/8 |
| Weight (kg) | 11.11 |
| Weight (lbs) | 24.49 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
