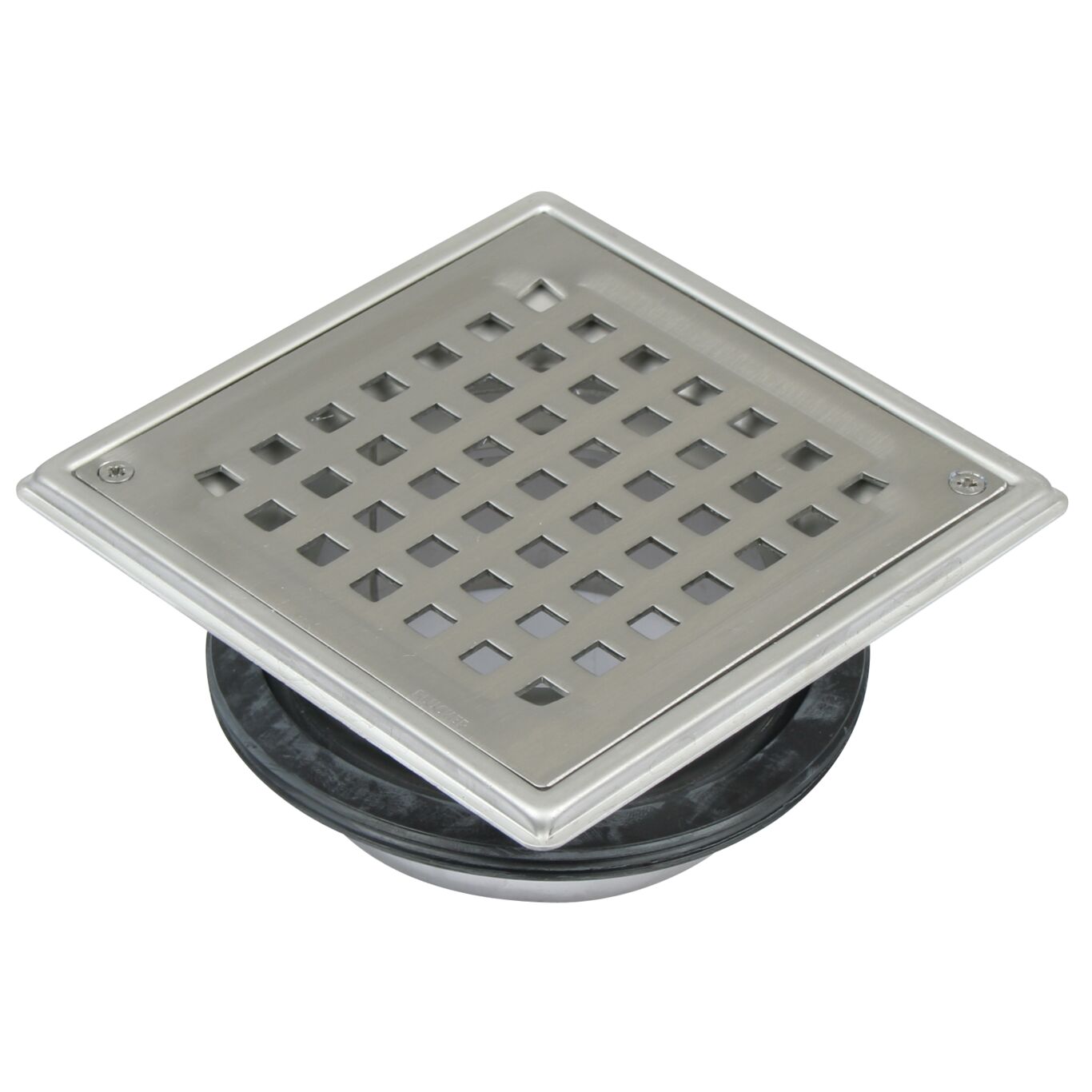

UPPER PART MARINE - (472.300.110)
×
![]()
Part Of the Series: Marine-upper part-155
Type no.: 472.300.110
EAN no.: 5705499106374
NRF no.: 3396729

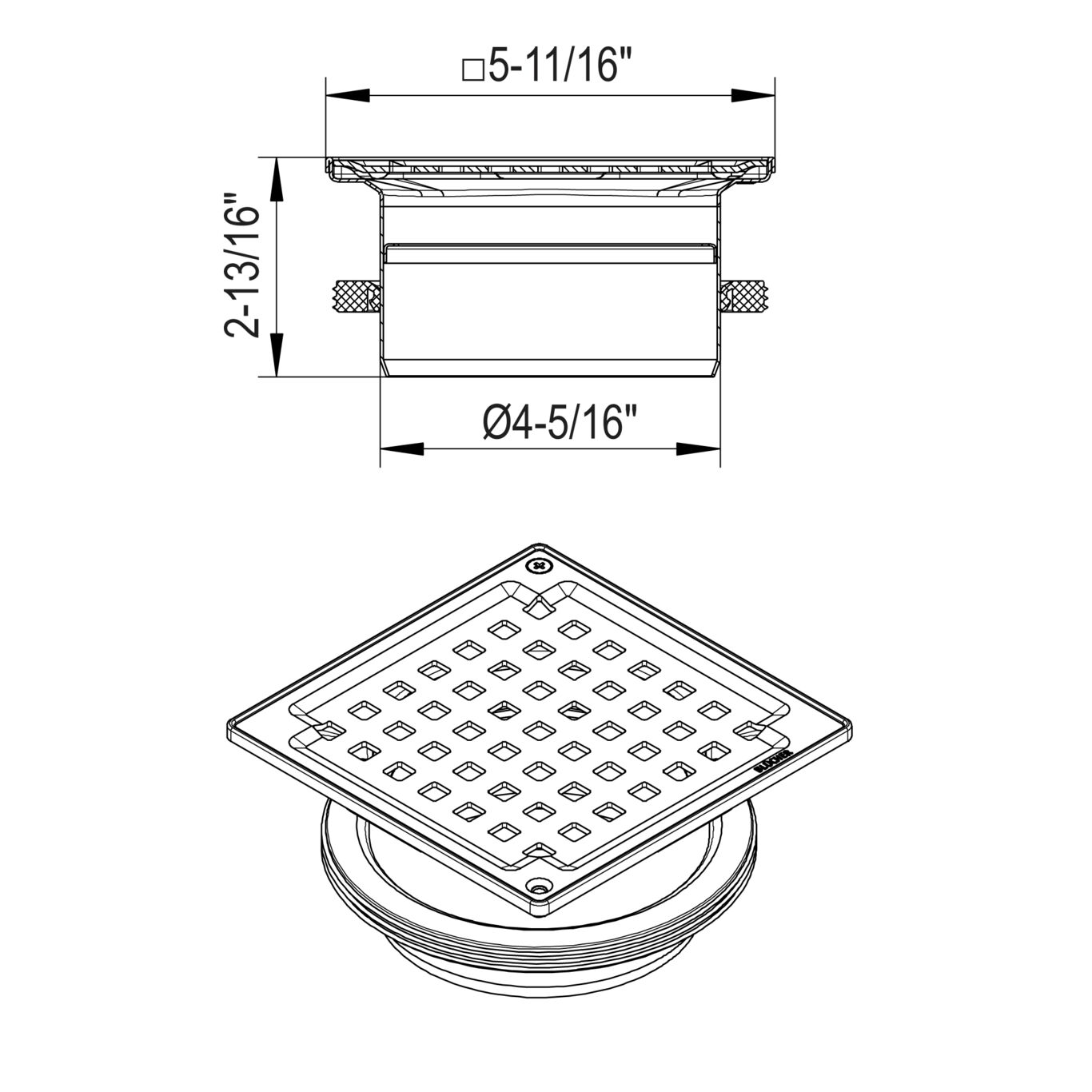

Size: 155x155
UPPER PART MARINE
-With supporting ring for water trap
-Floor: tiled and wooden
-Frame: 6-1/8 x 6-1/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Tiled / Wooden |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 74 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 155x155 |
| Size of Frame (Inch) | 6-1/8 x 6-1/8 |
| Weight (kg) | 0.7 |
| Weight (lbs) | 1.54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev4, Marine Drains
BLÜCHER® Drains EPD KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA Achilles Certificate - 46702 DNV - MERB0001N3Z, Rev0 Bureau Veritas - 03456-H0 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes
