LOWER PART MARINE - (470.000.050)
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 470.000.050
EAN no.: 5705499106138
NRF no.: 3396347

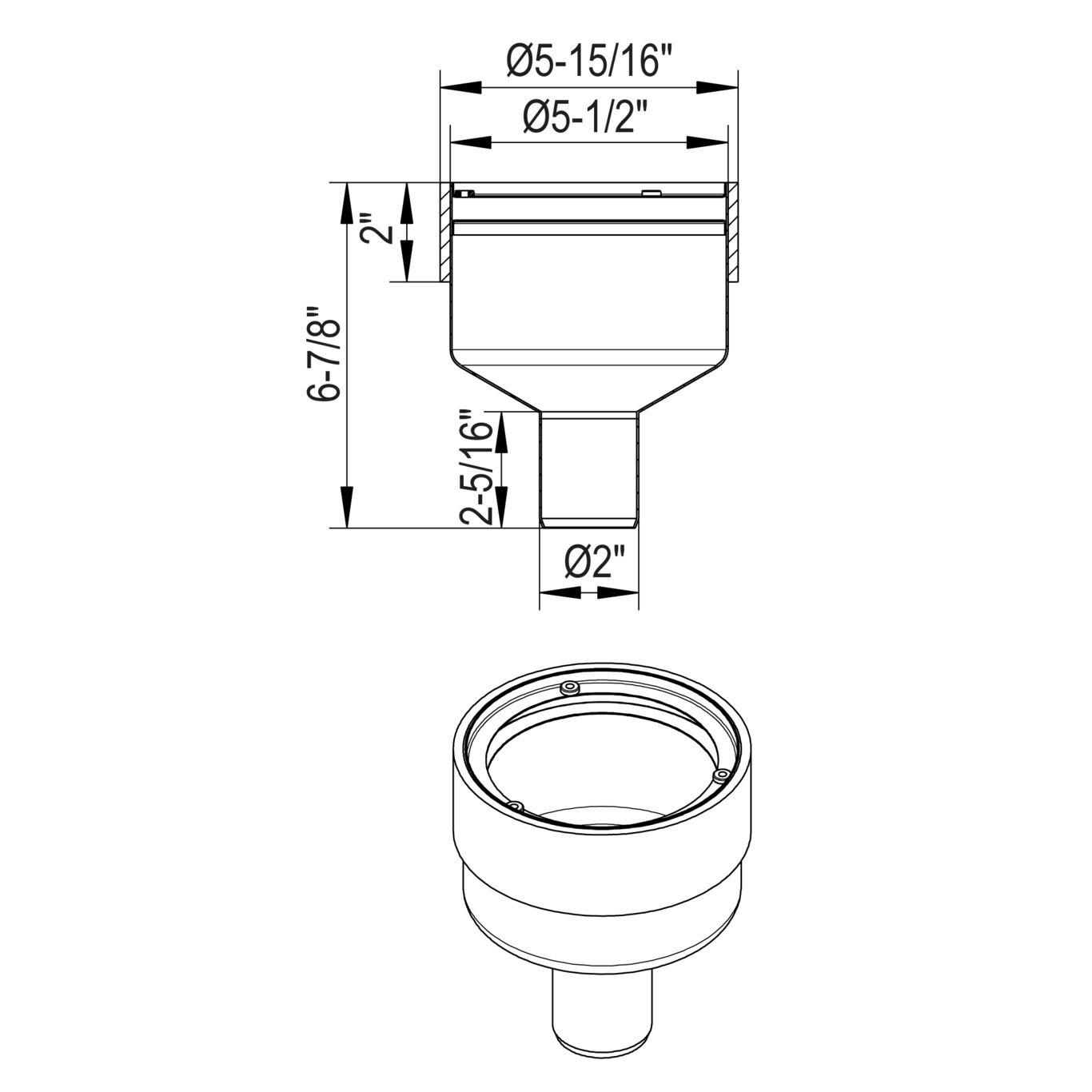

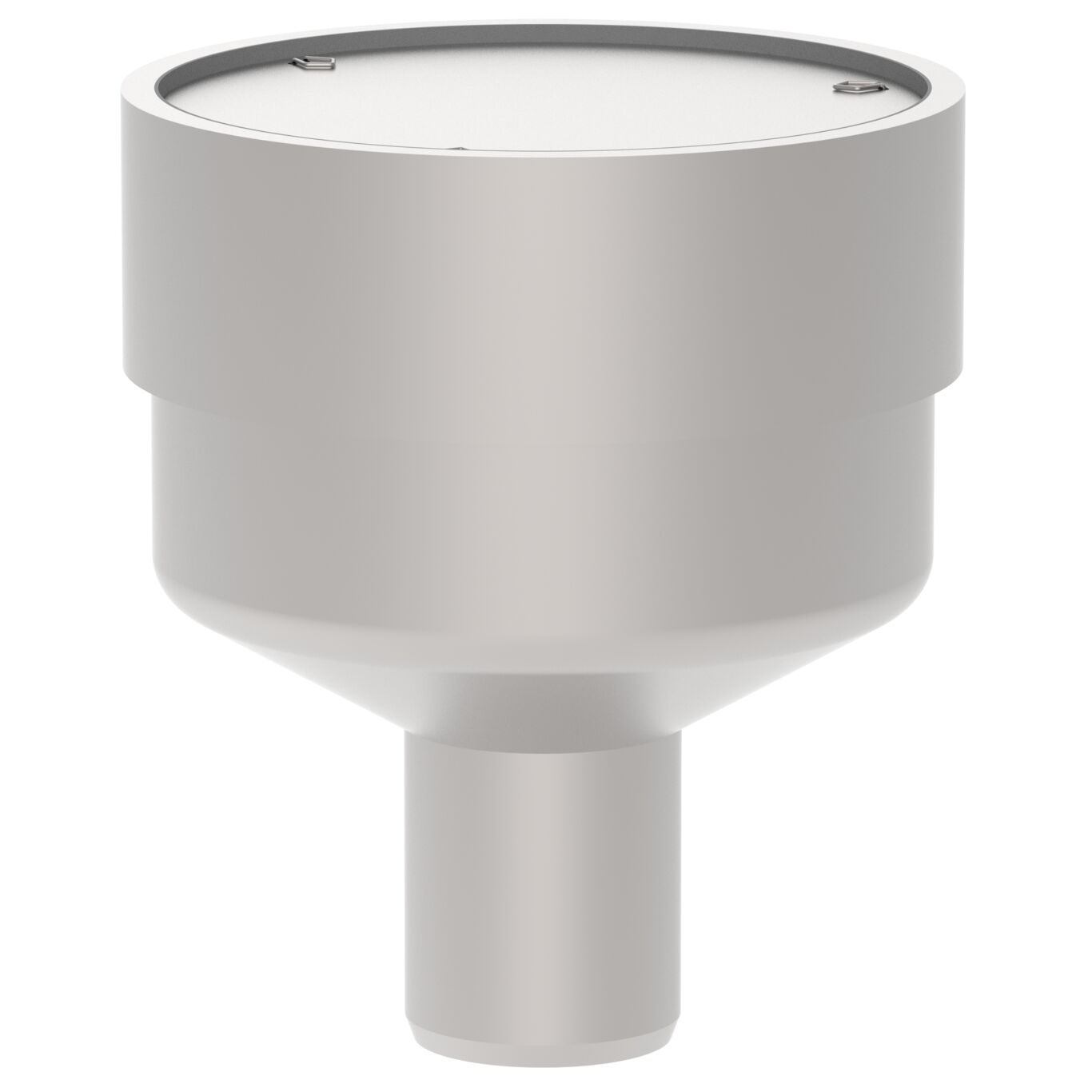

LOWER PART MARINE
-With welding sleeve
-Deck: steel
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Deck) | A0-A60 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 174 |
Number of Inlets | 0 |
Outlet dia. (mm) | 50 |
Outlet Diameter (Inch) | 2 |
Outlet Direction | Vertical |
Weight (kg) | 1.73 |
Weight (lbs) | 3.81 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3 ABS - LD1716353-PDA Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM RS - 22.10017.262 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA Bureau Veritas - 03456-H0 DNV - TAP0000023-rev4, Sanitary discharge pipes
