GRATING CIRCLE VIENNA - (474.300.110)
×
![]()
Part Of the Series: Marine-upper part-135
Type no.: 474.300.110
EAN no.: 5705499106411
NRF no.: 3396349
Size: Ø135

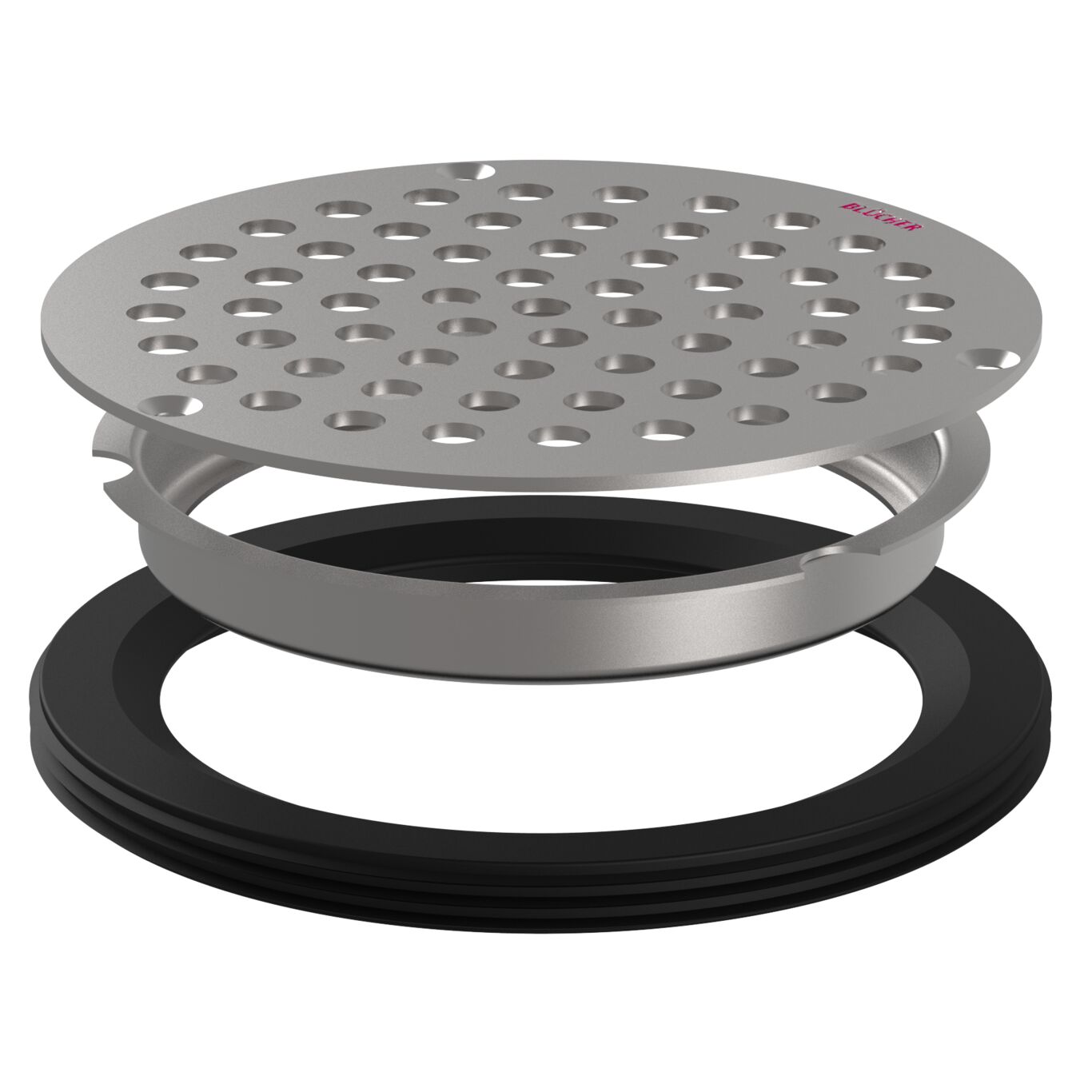

GRATING CIRCLE VIENNA
-With supporting ring for water trap
-Grating: Ø5-3/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screws | 3 |
| Shape | Round |
| Size (mm) | Ø135 |
| Size of Frame (Inch) | Ø5-3/8 |
| Weight (kg) | 0.2 |
| Weight (lbs) | 0.44 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev4, Marine Drains
BLÜCHER® Drains EPD DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe Achilles Certificate - 46702 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - MERB0001N3Z, Rev0 Bureau Veritas - 03456-H0 Lloyds Register LR22419510TA TÜRK LOYDU - 25041616077231247 ABS - LD1716353-PDA
