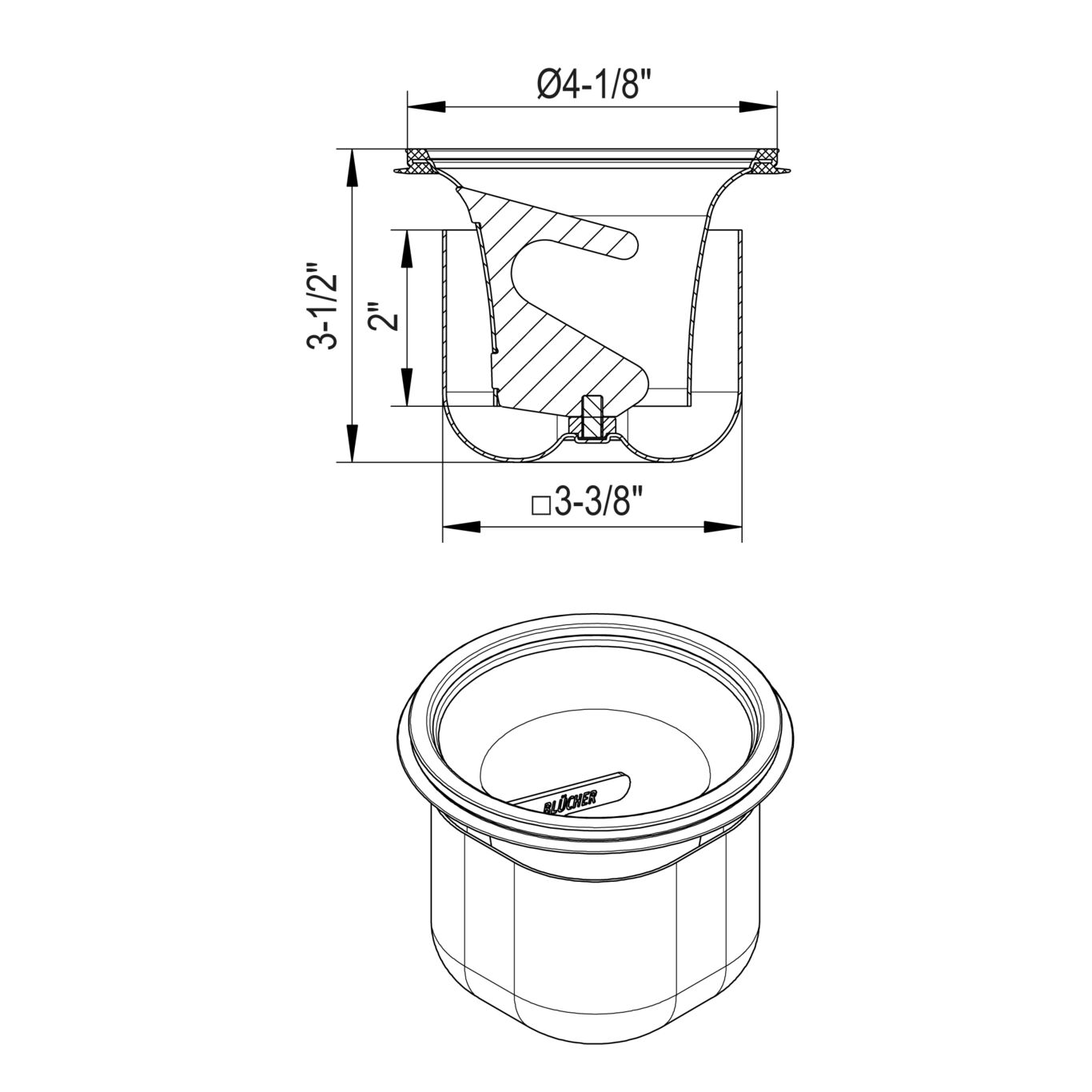

REMOVABLE TWO-PART WATER TRAP - (502.050.110 M)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.050.110 M
EAN no.: 5705499133264
REMOVABLE TWO-PART WATER TRAP
-Water seal height = 2 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.7 |
| Minimum Height (mm) | 89 |
| Outlet dia. (mm) | 108 |
| Outlet Diameter (Inch) | 4 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0.36 |
| Weight (lbs) | 0.79 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB00000MA, Rev3
