S-TRAP 180° - (525.180.050 S)
×
![]()
Part Of the Series: Water trap-S
Type no.: 525.180.050 S
EAN no.: 5705499114096
NRF no.: 3395047

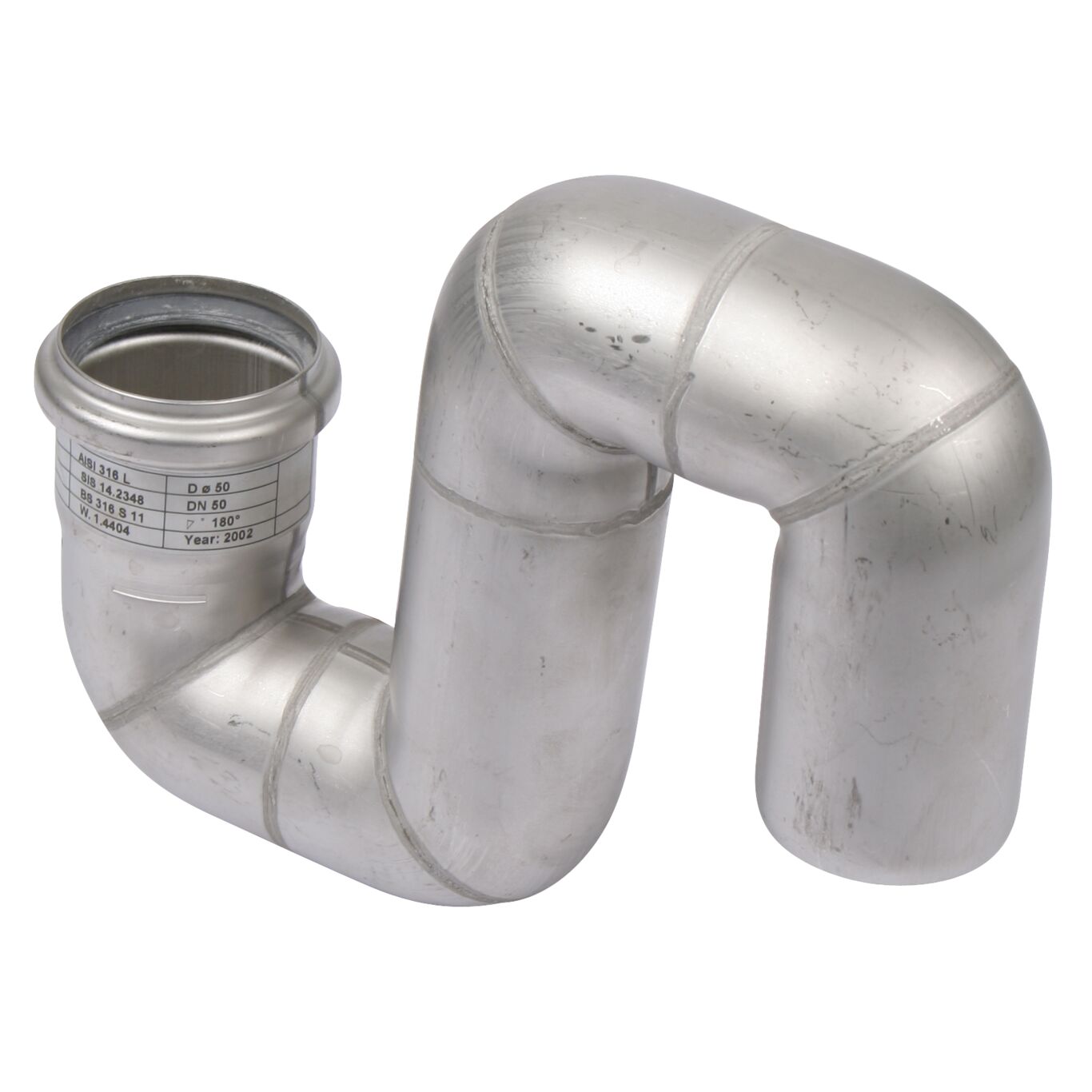

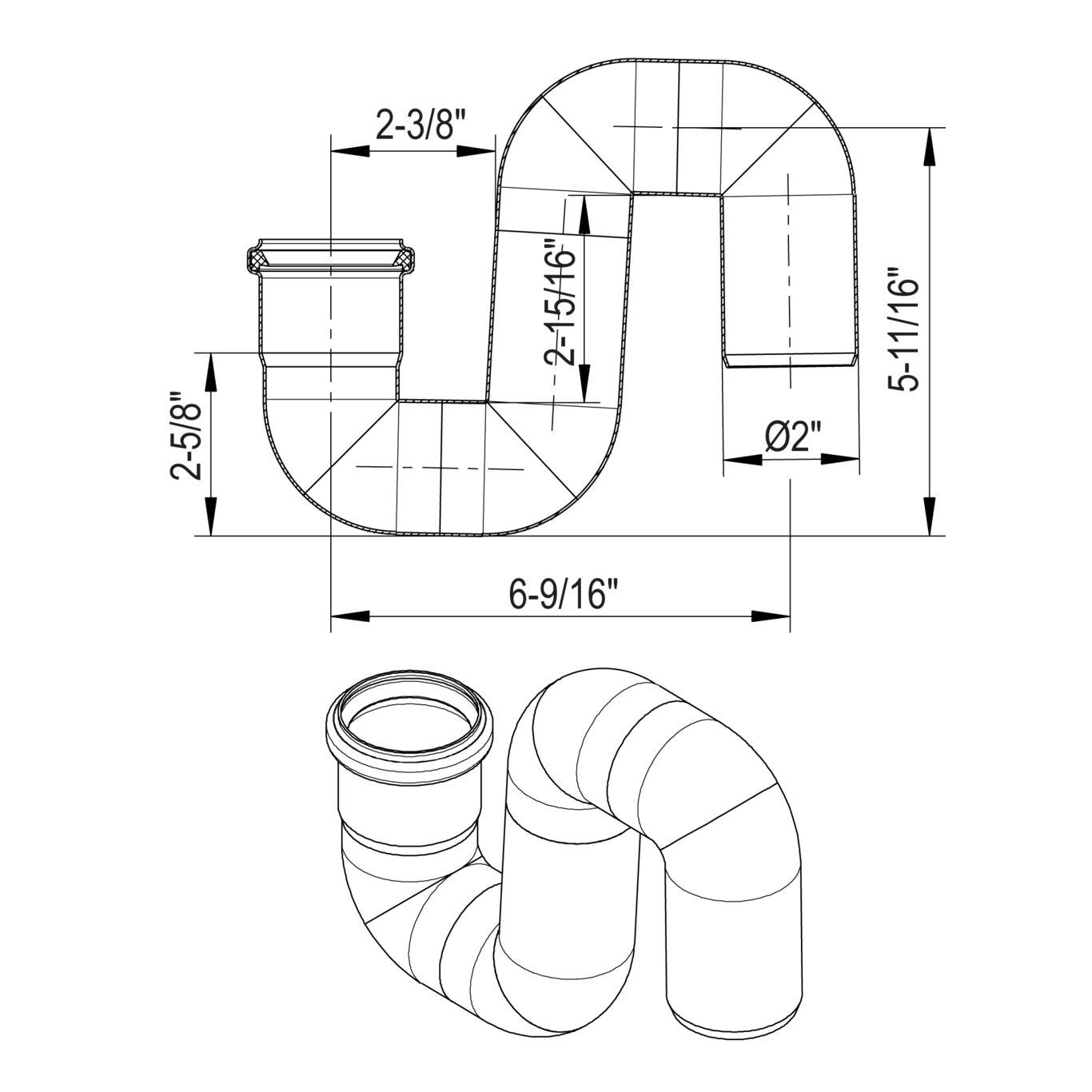

S-TRAP 180°
-Diameter: Ø2 inch
-Water seal height = 3 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 180 |
| Field of Application | Domestic |
| Length (mm) | 67 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Water Seal Height (mm) | 74 |
| Weight (kg) | 0.54 |
| Weight (lbs) | 1.19 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24 KR - Type Approval CPH42135-PE001 Bureau Veritas - 03456-H0 TÜRK LOYDU - 25041616077231247 PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA
