SHOWER DRAIN SQUARE - (160.300.050)

Part Of the Series: Drain-No membrane-145

Type no.: 160.300.050

EAN no.: 5705499123586

LVI no.: 3305765

Size: 145x145

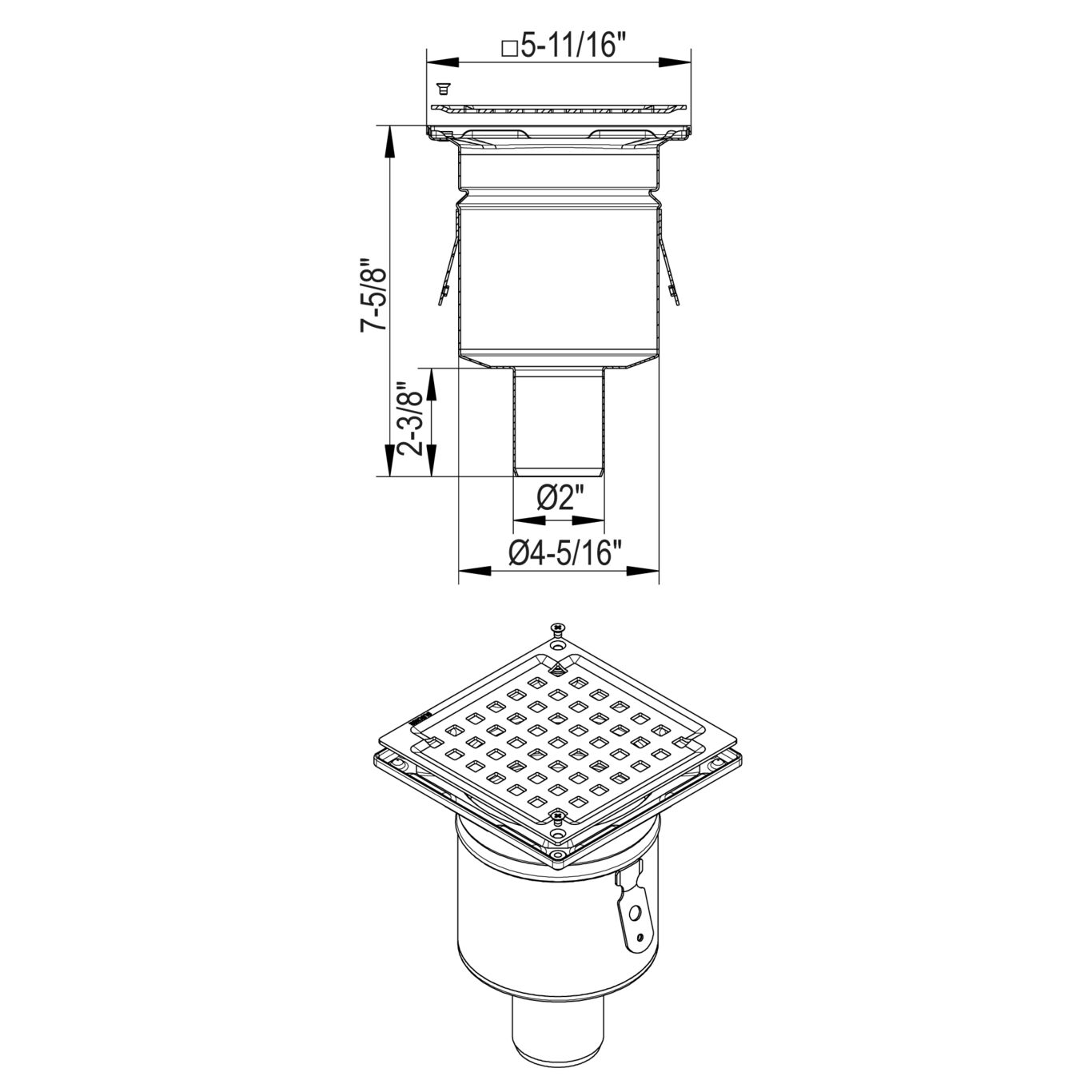

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Number of Inlets 0
Number of Screw Holes 2
Outlet dia. (mm) 50
Outlet Diameter (Inch) 2
Outlet Direction Vertical
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 0.55
Weight (lbs) 1.21
