INDUSTRIAL DRAIN, LOW - (766.603.075 S)
×
![]()
Part Of the Series: Drain-Vinyl-332
Type no.: 766.603.075 S
EAN no.: 5705499110593
LVI no.: 3303596
Size: Ø332

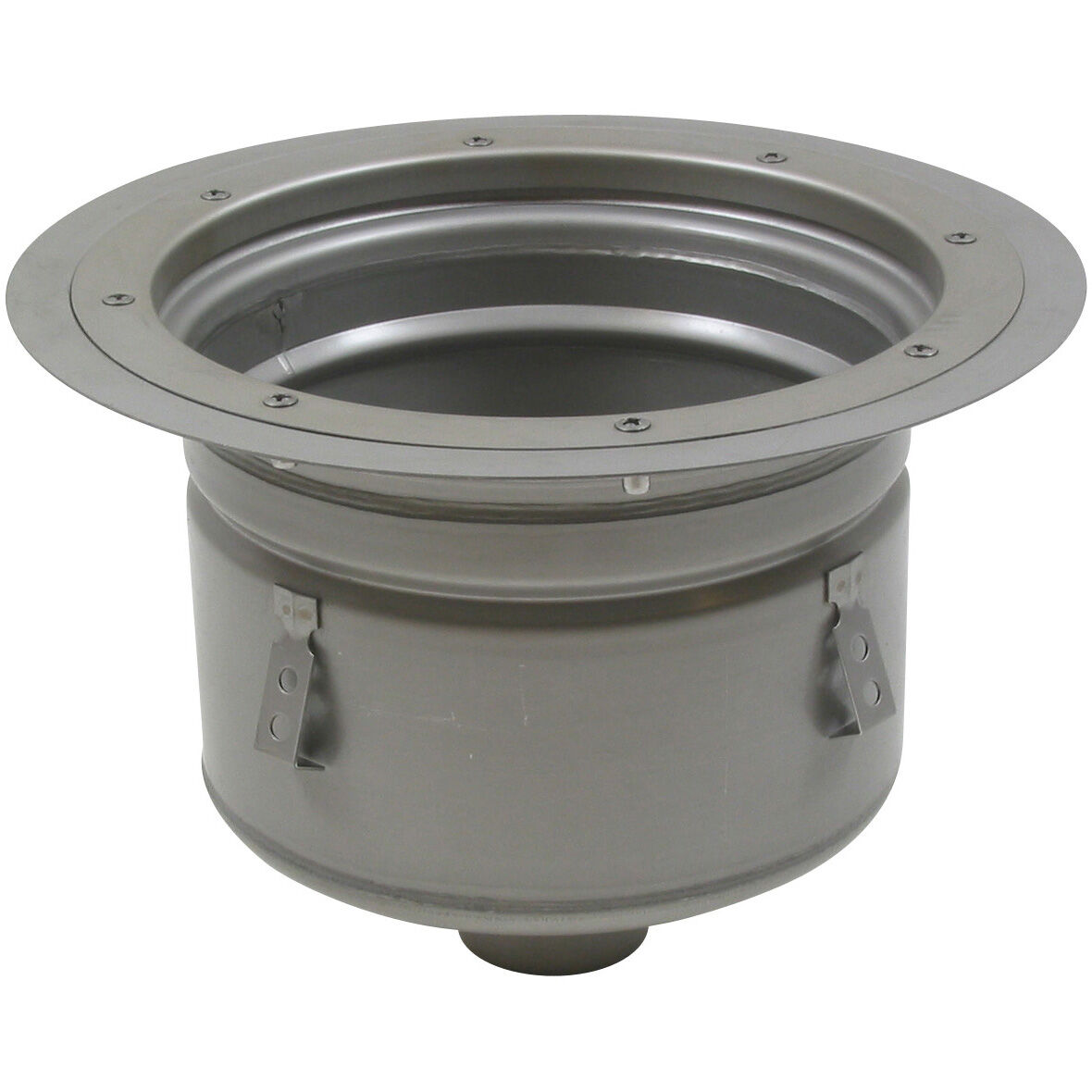

INDUSTRIAL DRAIN, LOW
-Floor: vinyl
-Frame: Ø332mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 275 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø332 |
| Size of Frame (Inch) | Ø13-1/8 |
| Weight (kg) | 4.58 |
| Weight (lbs) | 10.1 |
-
Approval Information
For approval information, please refer to the below approval certificates.
