SHOWER CHANNEL WATERLINE 1000 - (398.100.056.20)
×
![]()
Part Of the Series: Shower channel-Sheet membrane
Type no.: 398.100.056.20
EAN no.: 5705499138412
VVS no.: 155063010
RSK no.: 7121707
NRF no.: 3394729
Size: 50x1000

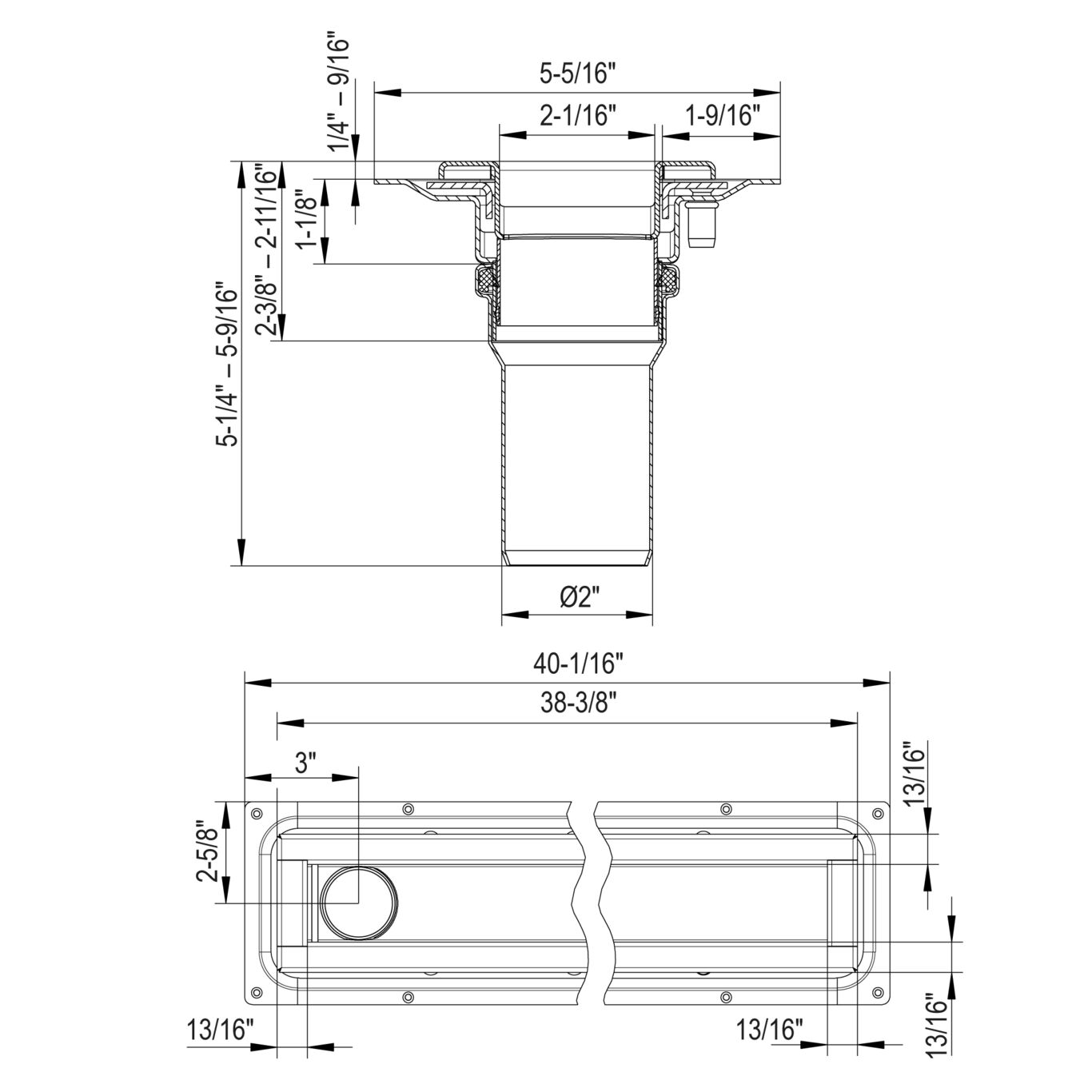

SHOWER CHANNEL WATERLINE 1000
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |
| Outlet Box | No |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Product Family | WaterLine |
| Shape | Rectangular |
| Size (mm) | 50x1000 |
| Size of Frame (Inch) | 2 x 39-3/8 |
| Weight (kg) | 4.68 |
| Weight (lbs) | 10.32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
