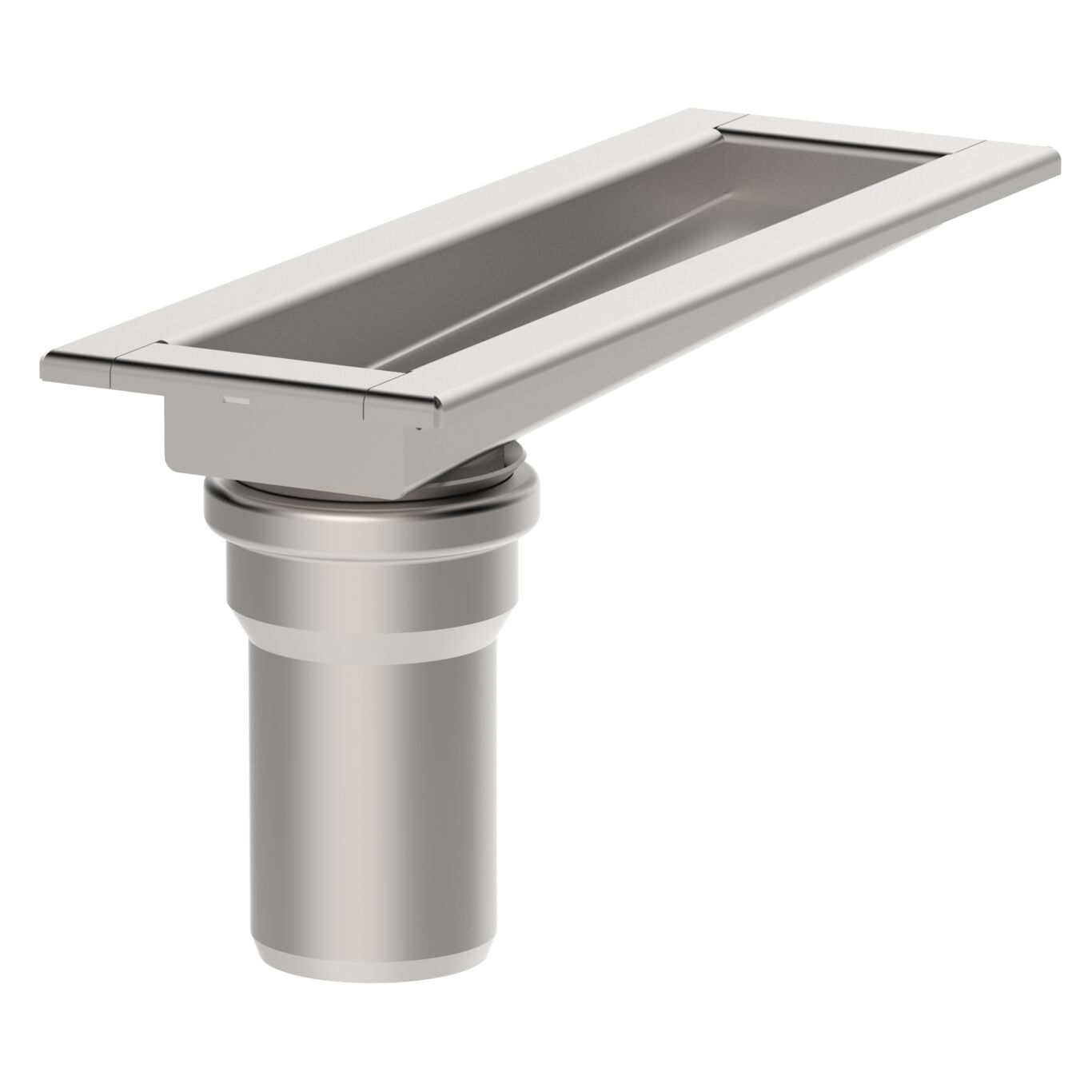

SHOWER CHANNEL WATERLINE 300 - (178.030.056.20)
×
![]()
Part Of the Series: Shower channel-No membrane
Type no.: 178.030.056.20
EAN no.: 5705499138108
VVS no.: 155061003
NRF no.: 3394807
Size: 50x300
SHOWER CHANNEL WATERLINE 300
-Floor: concrete and tiled
-No membrane, frame: rectangular
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Outlet Box | No |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Product Family | WaterLine |
| Shape | Rectangular |
| Size (mm) | 50x300 |
| Size of Frame (Inch) | 2 x 11-3/4 |
| Weight (kg) | 0.67 |
| Weight (lbs) | 1.48 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
