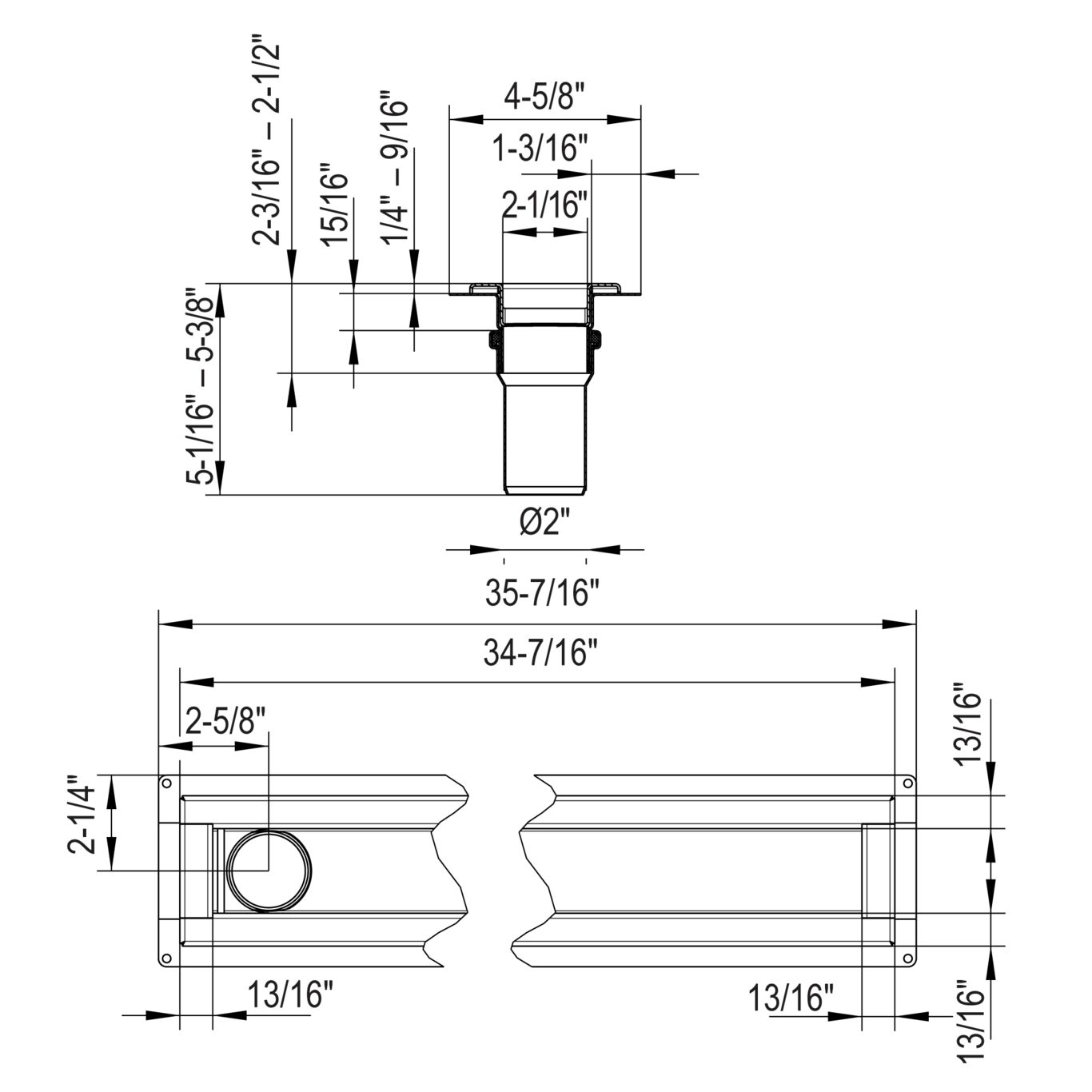

SHOWER CHANNEL WATERLINE 900 - (378.090.056.20)

Part Of the Series: Shower channel-Liquid membrane

Type no.: 378.090.056.20

EAN no.: 5705499138160

VVS no.: 155062009

RSK no.: 7121694

LVI no.: 3304417

Size: 50x900


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Outlet Box No
Outlet dia. (mm) 50
Outlet Diameter (Inch) 2
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 50x900
Size of Frame (Inch) 2 x 35-3/8
Weight (kg) 2.84
Weight (lbs) 6.26
