SHOWER CHANNEL WATERLINE 800 - (378.080.056.20 B)
×
![]()
Part Of the Series: Shower channel-Liquid membrane
Type no.: 378.080.056.20 B
EAN no.: 5705499139228
VVS no.: 155062108
Size: 50x800

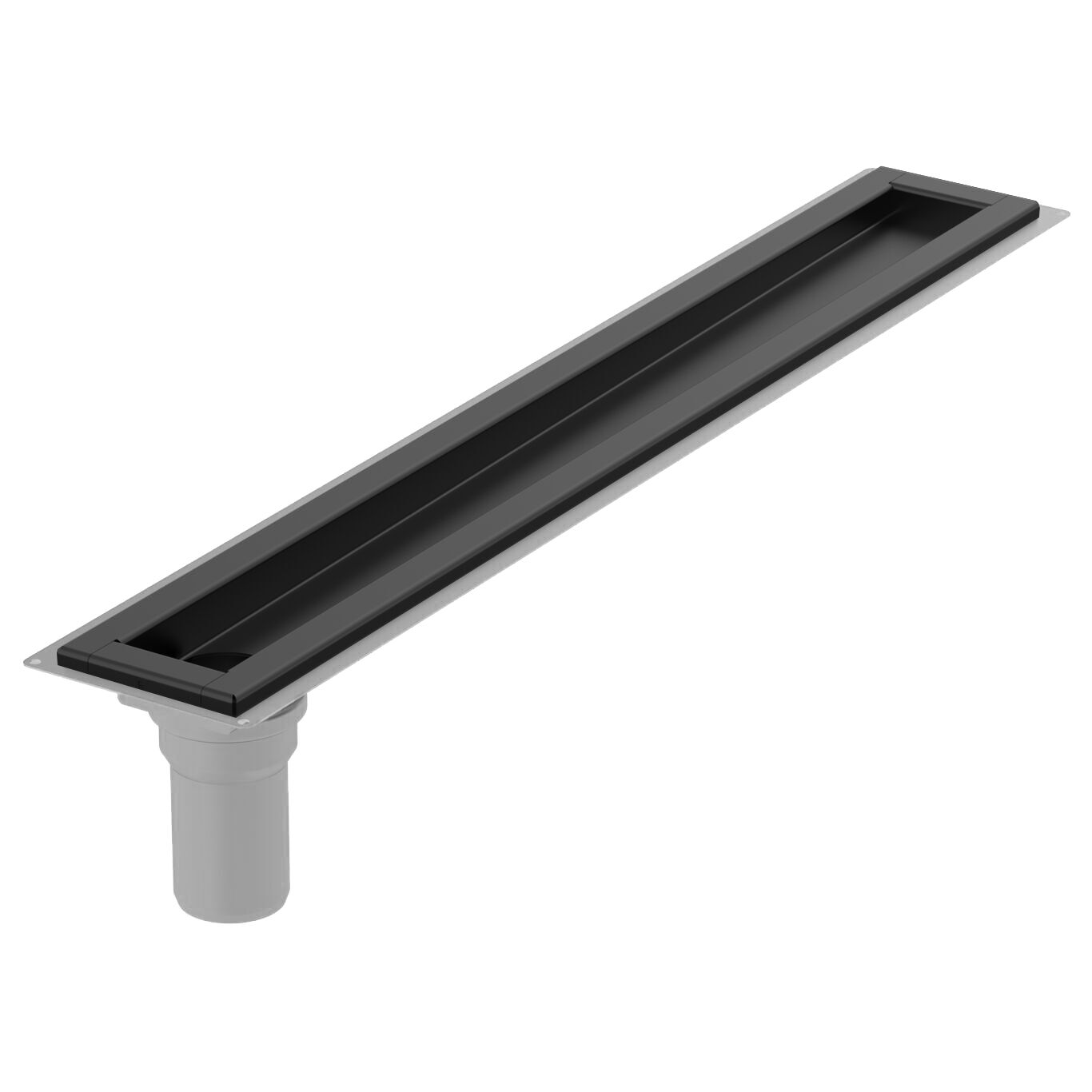

SHOWER CHANNEL WATERLINE 800
- Floor: concrete and tiled
- Frame: rectangular
- Outlet: Ø2 inch, vertical
- Colour: Black
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Product Family | WaterLine |
| Shape | Rectangular |
| Size (mm) | 50x800 |
| Size of Frame (Inch) | 2 x 31-1/2 |
| Weight (kg) | 2.56 |
| Weight (lbs) | 5.64 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
