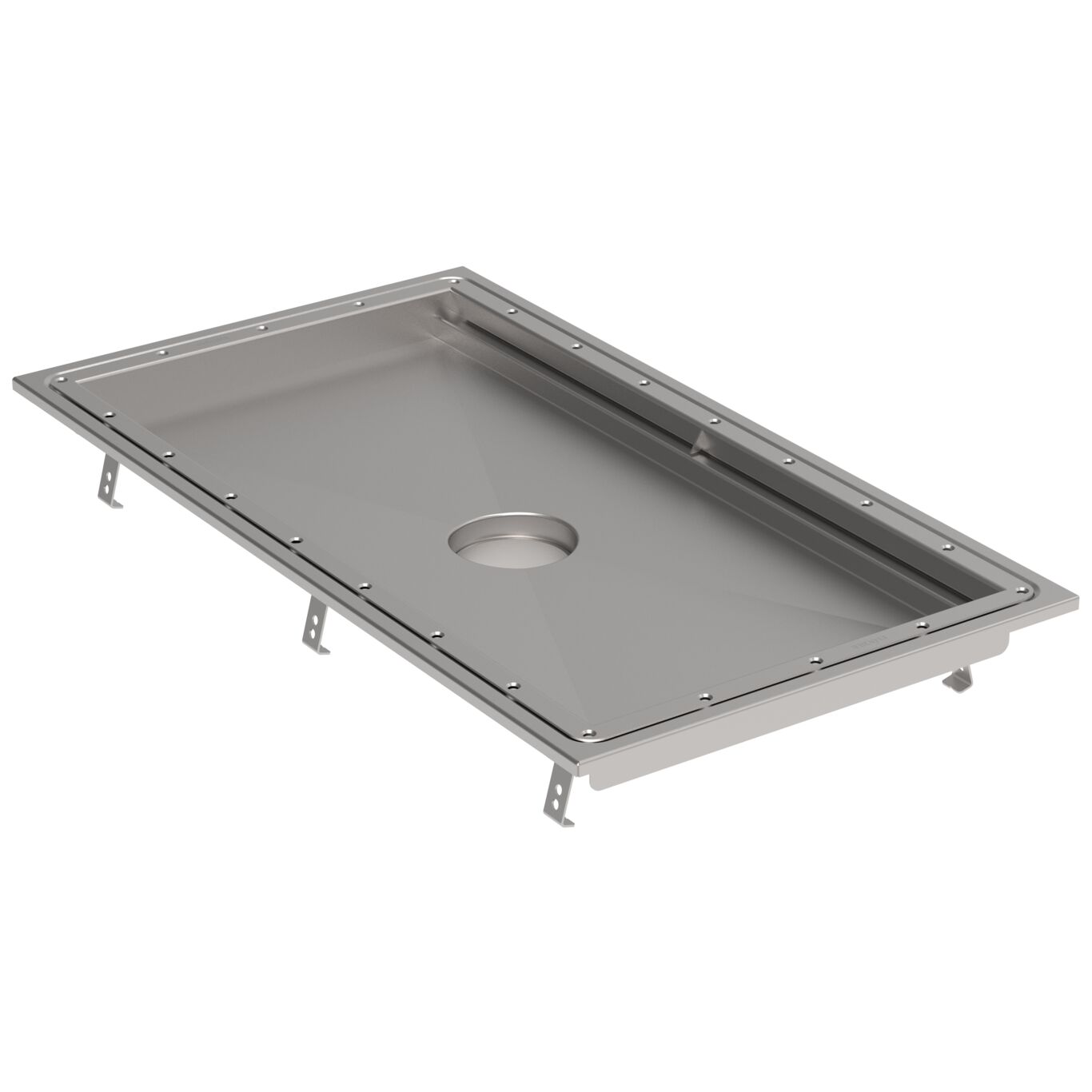

KITCHEN CHANNEL 400x800 - (662FH008-06)
Part Of the Series: Kitchen channel-Vinyl
Type no.: 662FH008-06
EAN no.: 5705499126457
Size: 400x800
KITCHEN CHANNEL 16 x 32
-Floor: vinyl
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 121 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Outlet Direction | Vertical |
Shape | Rectangular |
Size (mm) | 400x800 |
Size of Frame (Inch) | 16 x 32 |
Weight (kg) | 13.61 |
Weight (lbs) | 30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - PS3079-21
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
HACCP Food Safety Programme - Europe RINA -MAC320524XG EuroPipe ABS - LD1716353-PDA Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products TÜRK LOYDU - 25041616077231247
