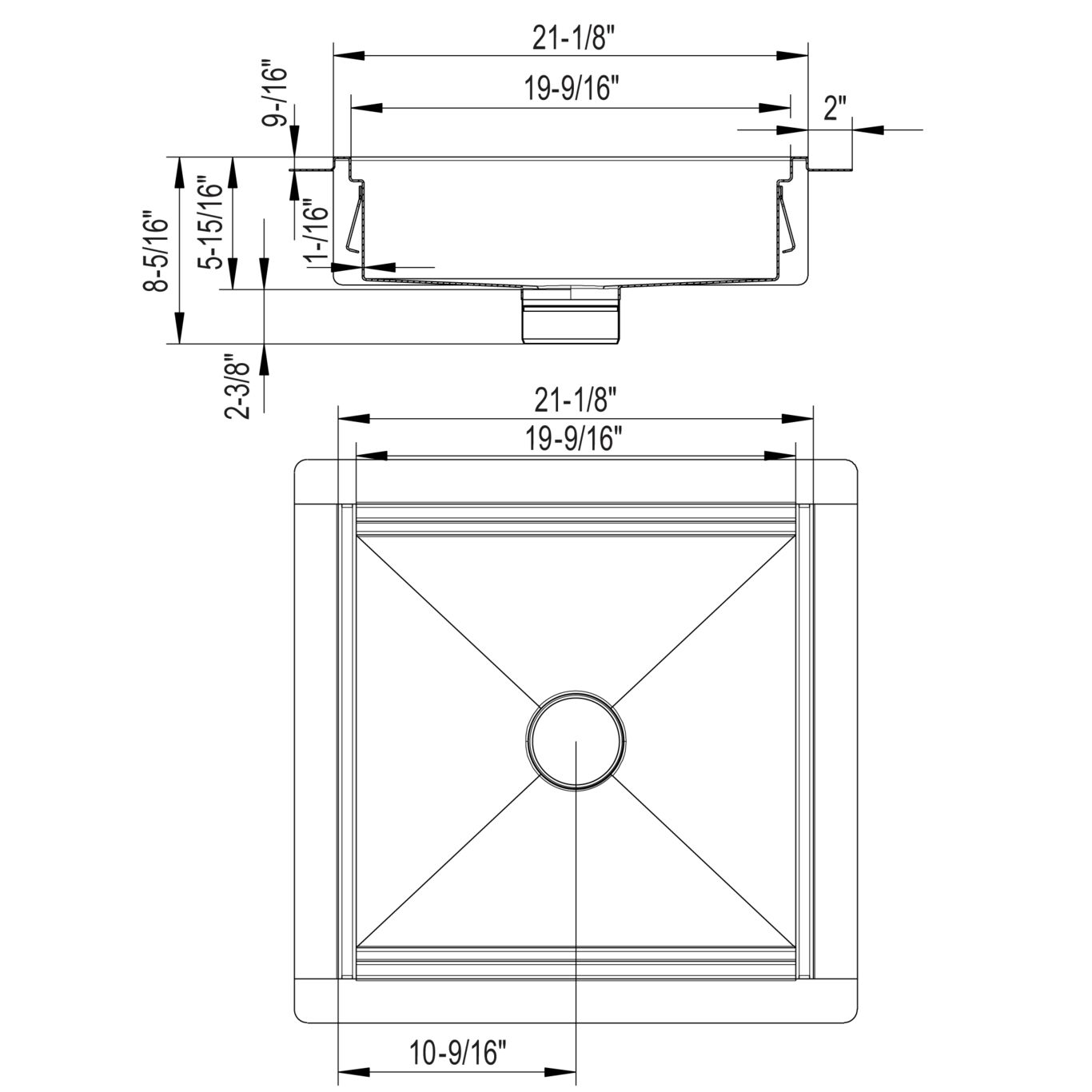

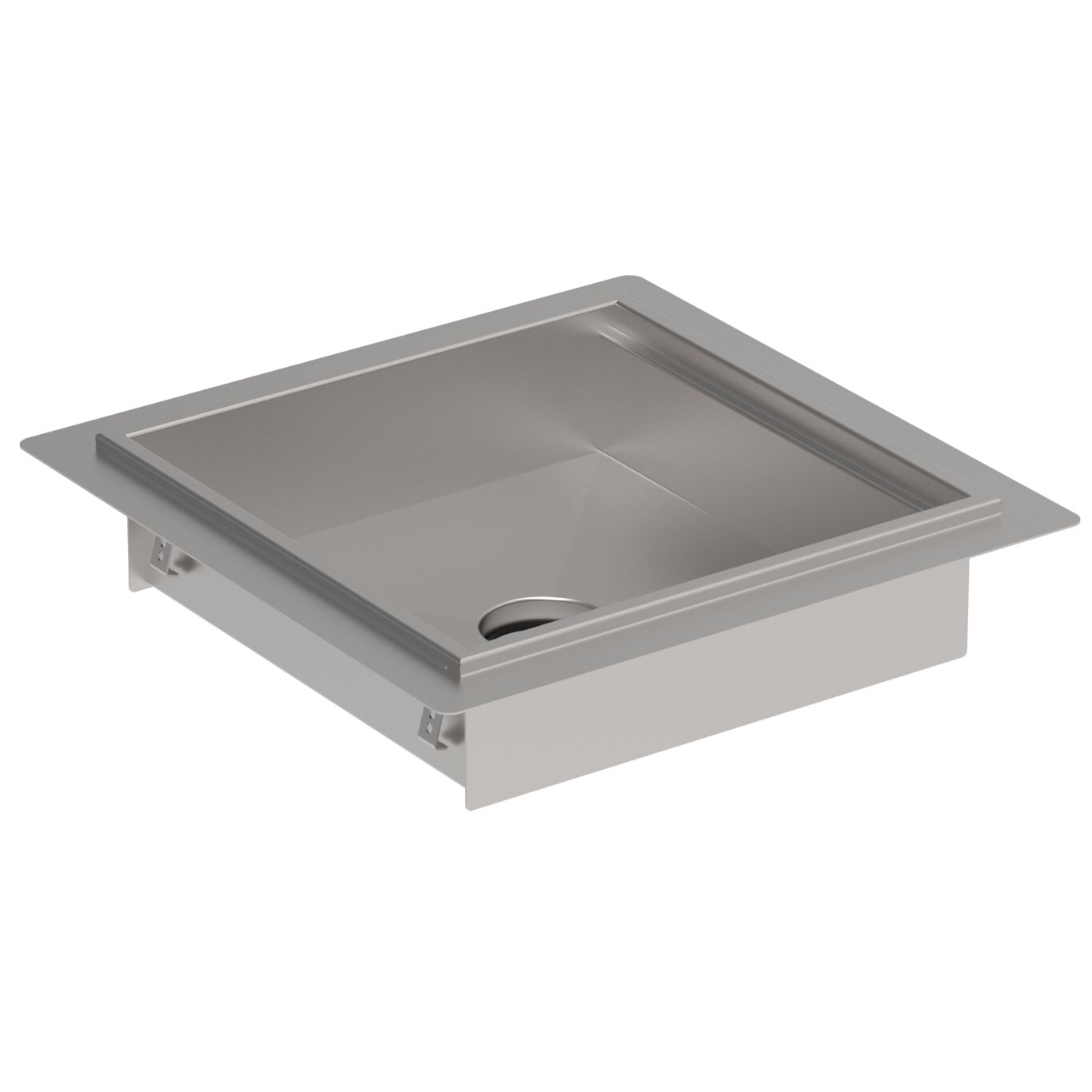

KITCHEN CHANNEL 500x500 - (664GH005-15)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664GH005-15
EAN no.: 5705499126082
Size: 500x500
KITCHEN CHANNEL 20 x 20
-Floor: concrete, tiled and resin
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 211 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 500x500 |
| Size of Frame (Inch) | 20 x 20 |
| Weight (kg) | 17.42 |
| Weight (lbs) | 38.4 |
-
