CHANNEL 200x4000 CENTER OUTLET - (672DH040-20BA)

Part Of the Series: Channel-Vinyl

Type no.: 672DH040-20BA

EAN no.: 5705499130331

Size: 200x4000

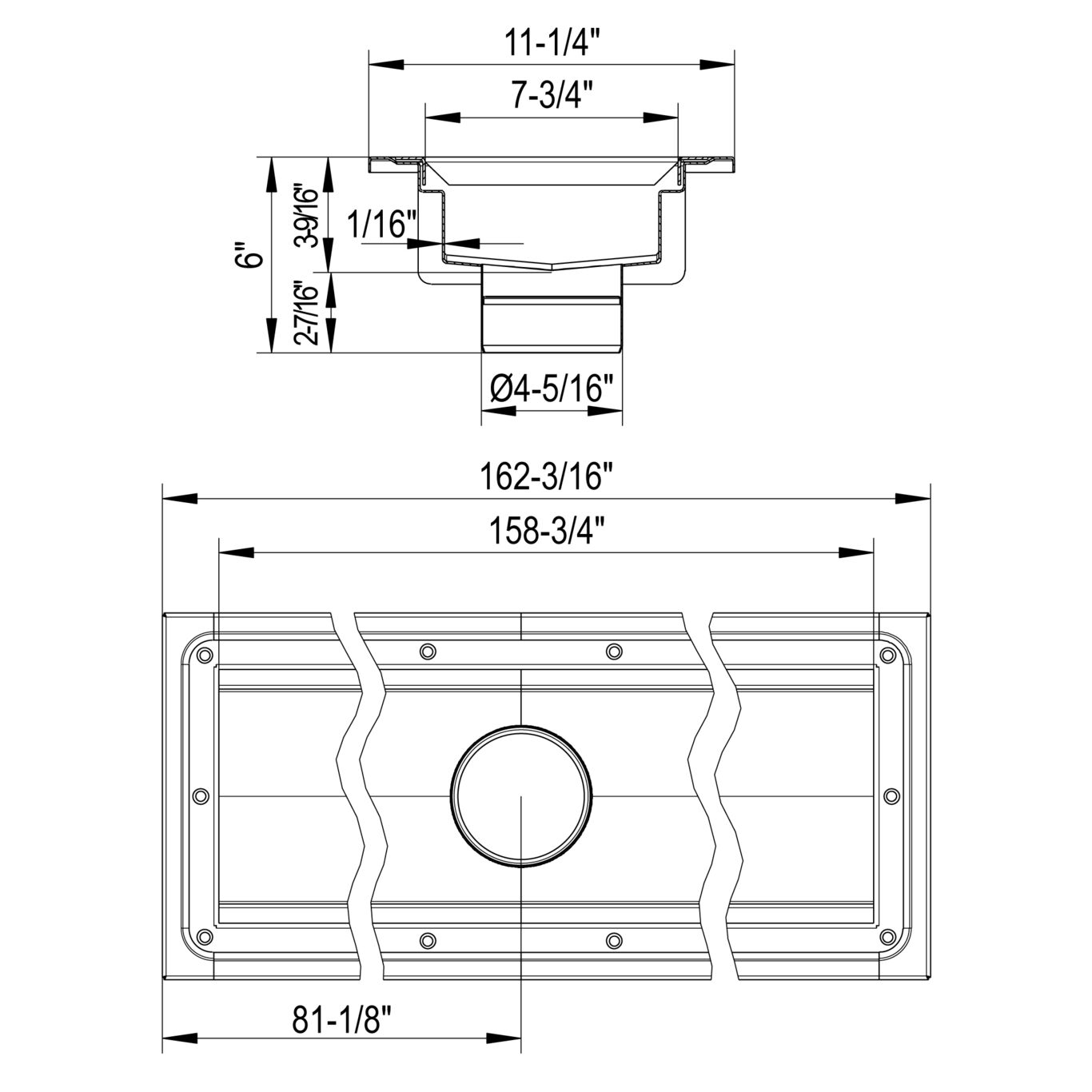

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 200x4000
Size of Frame (Inch) 7-7/8 x 157-1/2
Weight (kg) 28.07
Weight (lbs) 61.88
