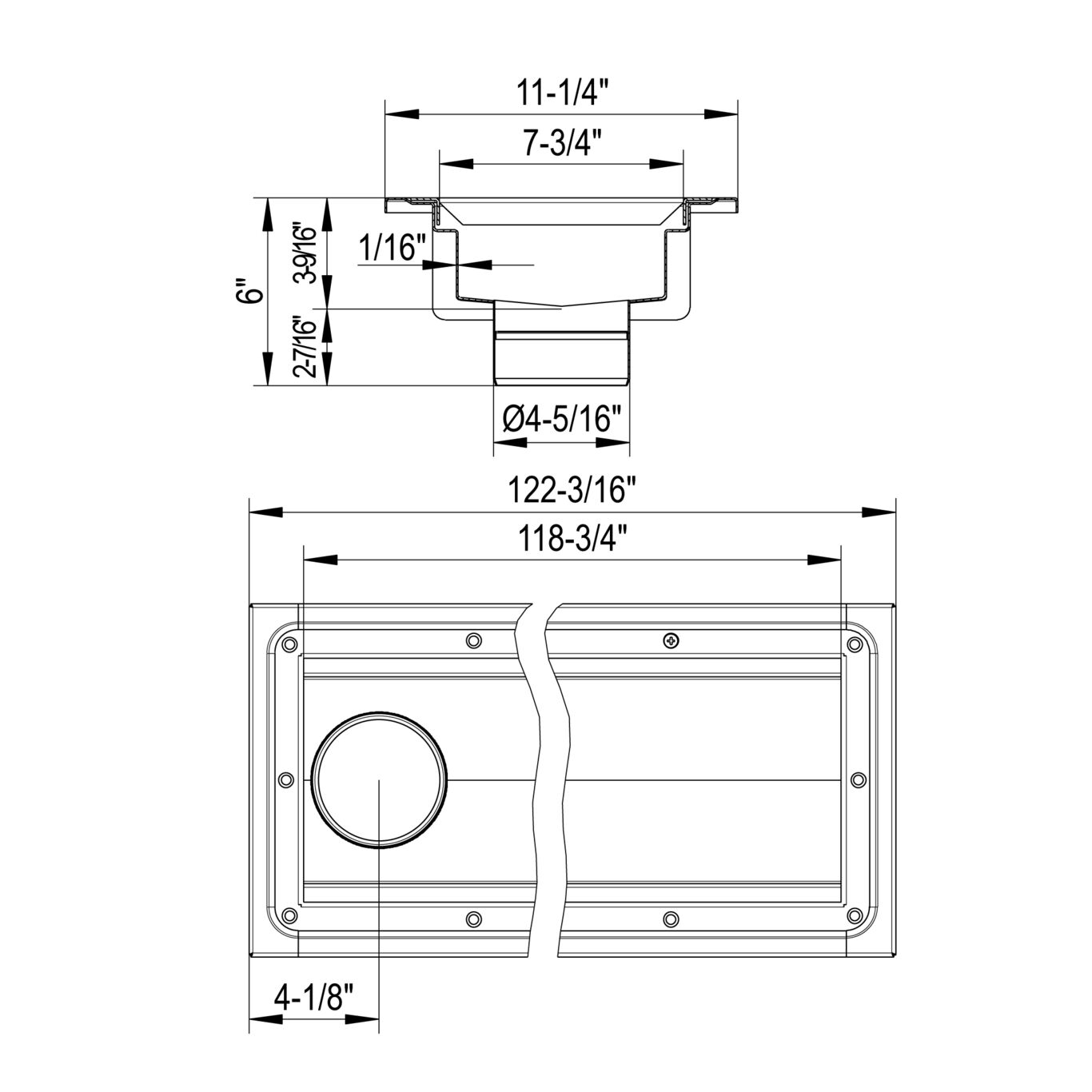

CHANNEL 200x3000 END OUTLET - (672DH030-00BA)

Part Of the Series: Channel-Vinyl

Type no.: 672DH030-00BA

EAN no.: 5705499130300

Size: 200x3000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 200x3000
Size of Frame (Inch) 7-7/8 x 118-1/8
Weight (kg) 20.69
Weight (lbs) 45.61
