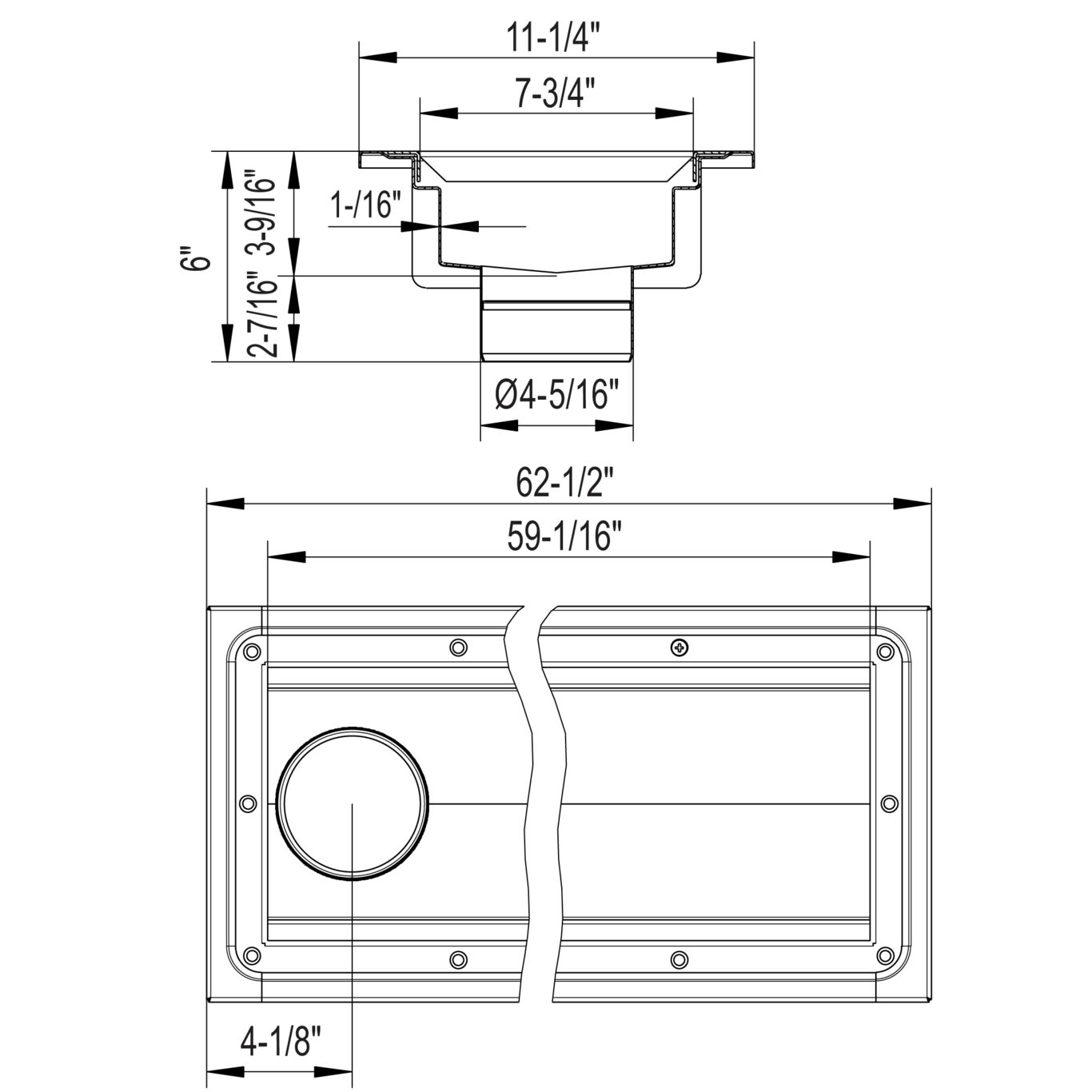

CHANNEL 200x1500 END OUTLET - (672DH015-00BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672DH015-00BA
EAN no.: 5705499130263
Size: 200x1500
CHANNEL 7-7/8 x 59 END OUTLET
-Floor: vinyl
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 200x1500 |
| Size of Frame (Inch) | 7-7/8 x 59 |
| Weight (kg) | 11.92 |
| Weight (lbs) | 26.28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
