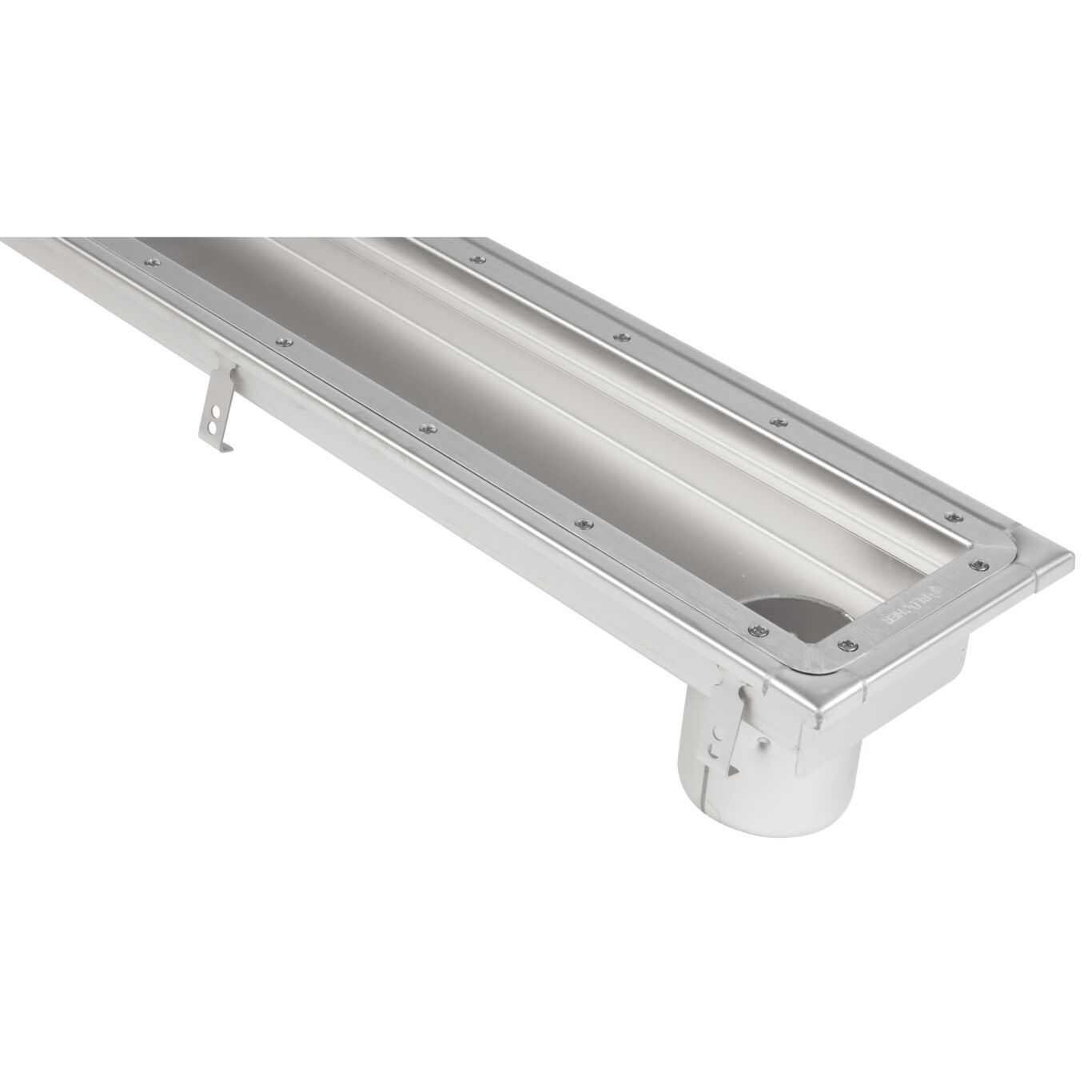

CHANNEL 150x2000 END OUTLET - (672CH020-00BA)
Part Of the Series: Channel-Vinyl
Type no.: 672CH020-00BA
EAN no.: 5705499124811
RSK no.: 7121784
NRF no.: 3397094
Size: 150x2000

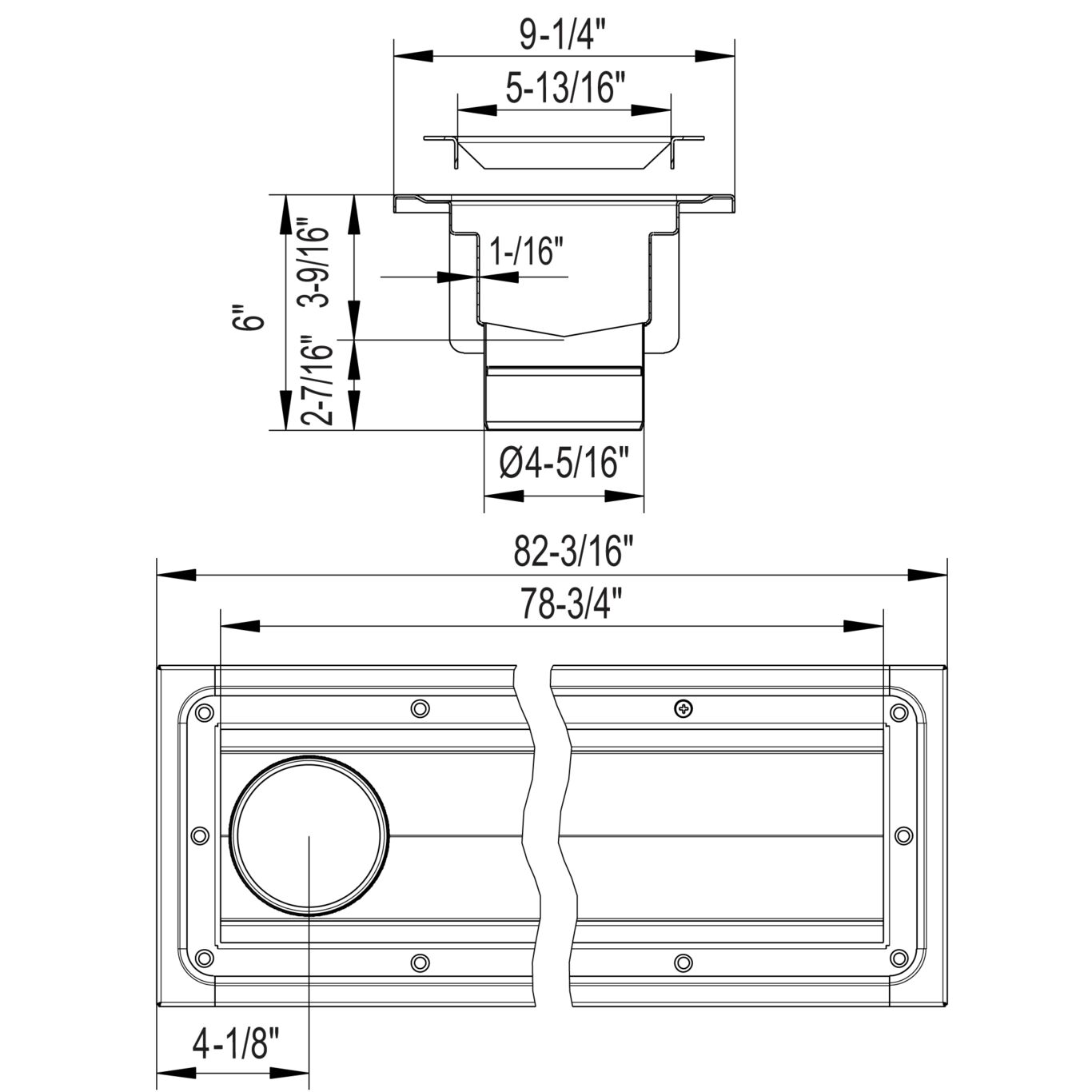

CHANNEL 5-7/8 x 78-3/4 END OUTLET
-Floor: vinyl
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 152 |
Outlet Box | No |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (mm) | 150x2000 |
Size of Frame (Inch) | 5-7/8 x 78-3/4 |
Weight (kg) | 12.52 |
Weight (lbs) | 27.6 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
