CHANNEL 150x1200 END OUTLET - (672CH012-00BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672CH012-00BA
EAN no.: 5705499124231
RSK no.: 7121778
NRF no.: 3397089
LVI no.: 3304946
Size: 150x1200

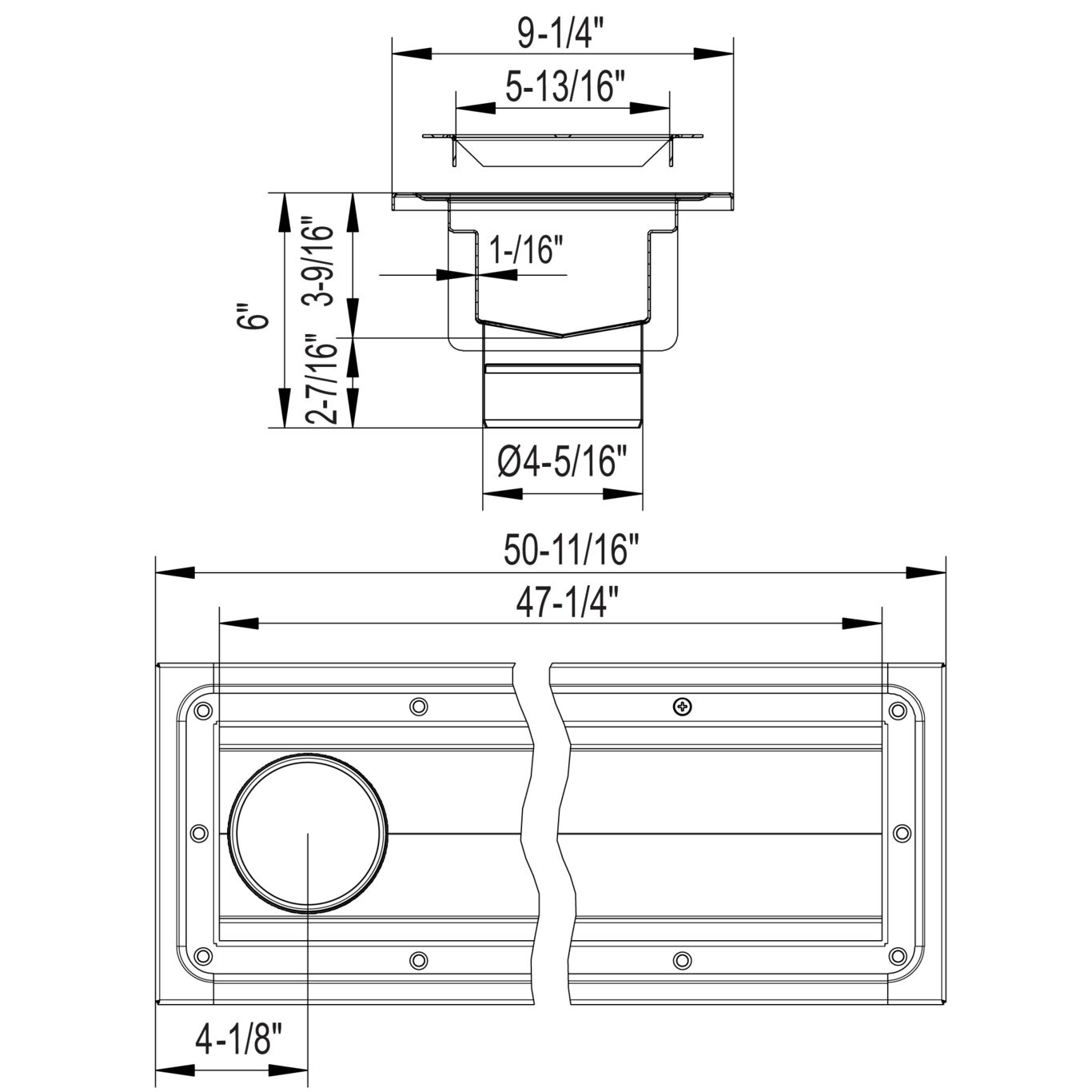

CHANNEL 5-7/8 x 47-1/4 END OUTLET
-Floor: vinyl
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x1200 |
| Size of Frame (Inch) | 5-7/8 x 47-1/4 |
| Weight (kg) | 8 |
| Weight (lbs) | 17.64 |
-
