HYGIENICPRO CHANNEL 150x3000 CENTER OUTLET - (676CC030-15DF)

Part Of the Series: Channel-No membrane

Type no.: 676CC030-15DF

EAN no.: 5705499136838

VVS no.: 221801130

LVI no.: 3305671

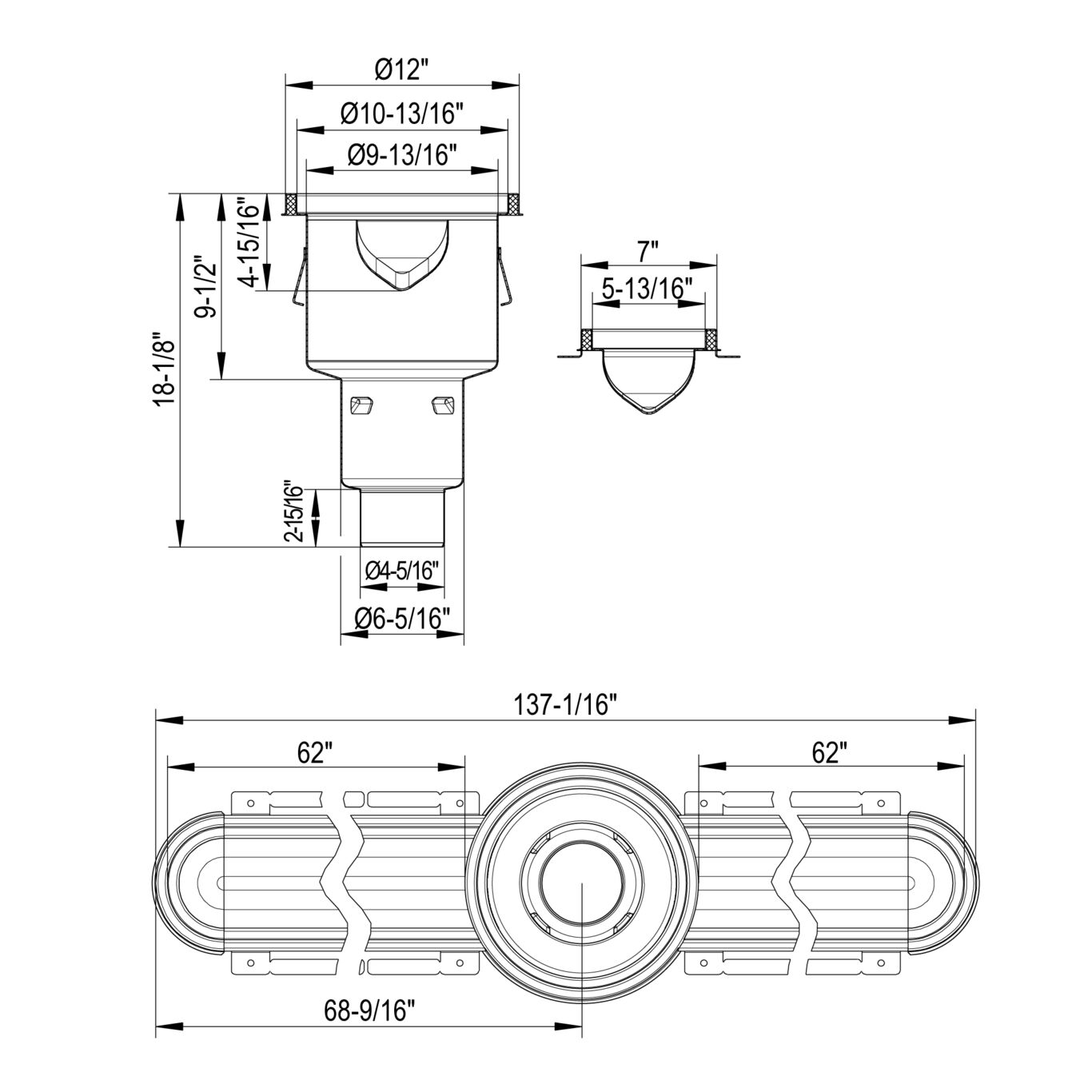

Size: 150x3000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 460
Outlet Box Yes
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 150x3000
Size of Frame (Inch) 5-7/8 x 118-1/8
Weight (kg) 26.82
Weight (lbs) 59.13
