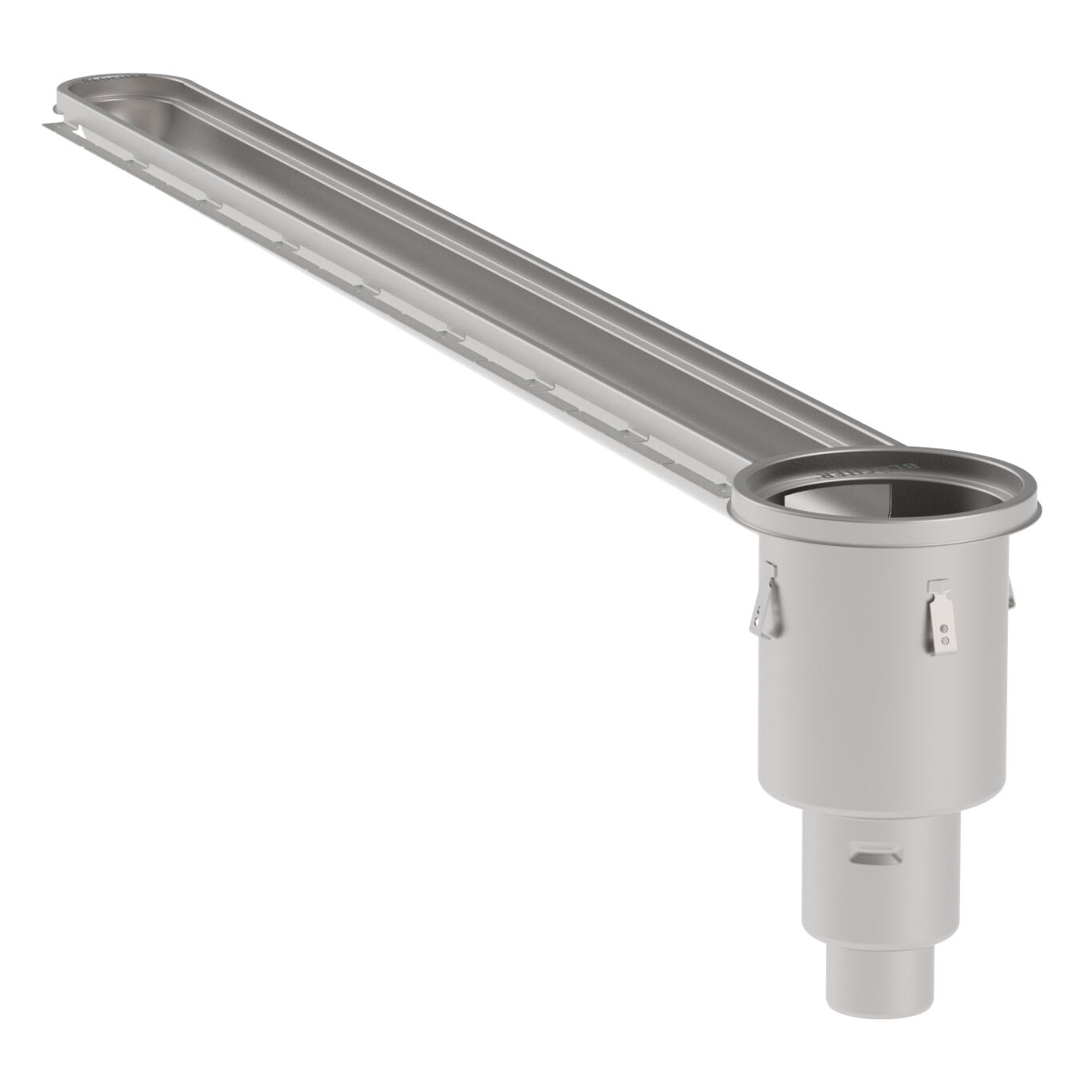

HYGIENICPRO CHANNEL 150x2000 END OUTLET - (676CC020-00EF)

Part Of the Series: Channel-No membrane

Type no.: 676CC020-00EF

EAN no.: 5705499135770

VVS no.: 221800220

LVI no.: 3305637

Size: 150x2000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 545
Outlet Box Yes
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 150x2000
Size of Frame (Inch) 5-7/8 x 78-3/4
Weight (kg) 20.96
Weight (lbs) 46.21
