HYGIENICPRO CHANNEL 150x2000 CENTER OUTLET - (676CC020-10DF)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CC020-10DF
EAN no.: 5705499136715
VVS no.: 221801120
LVI no.: 3305665

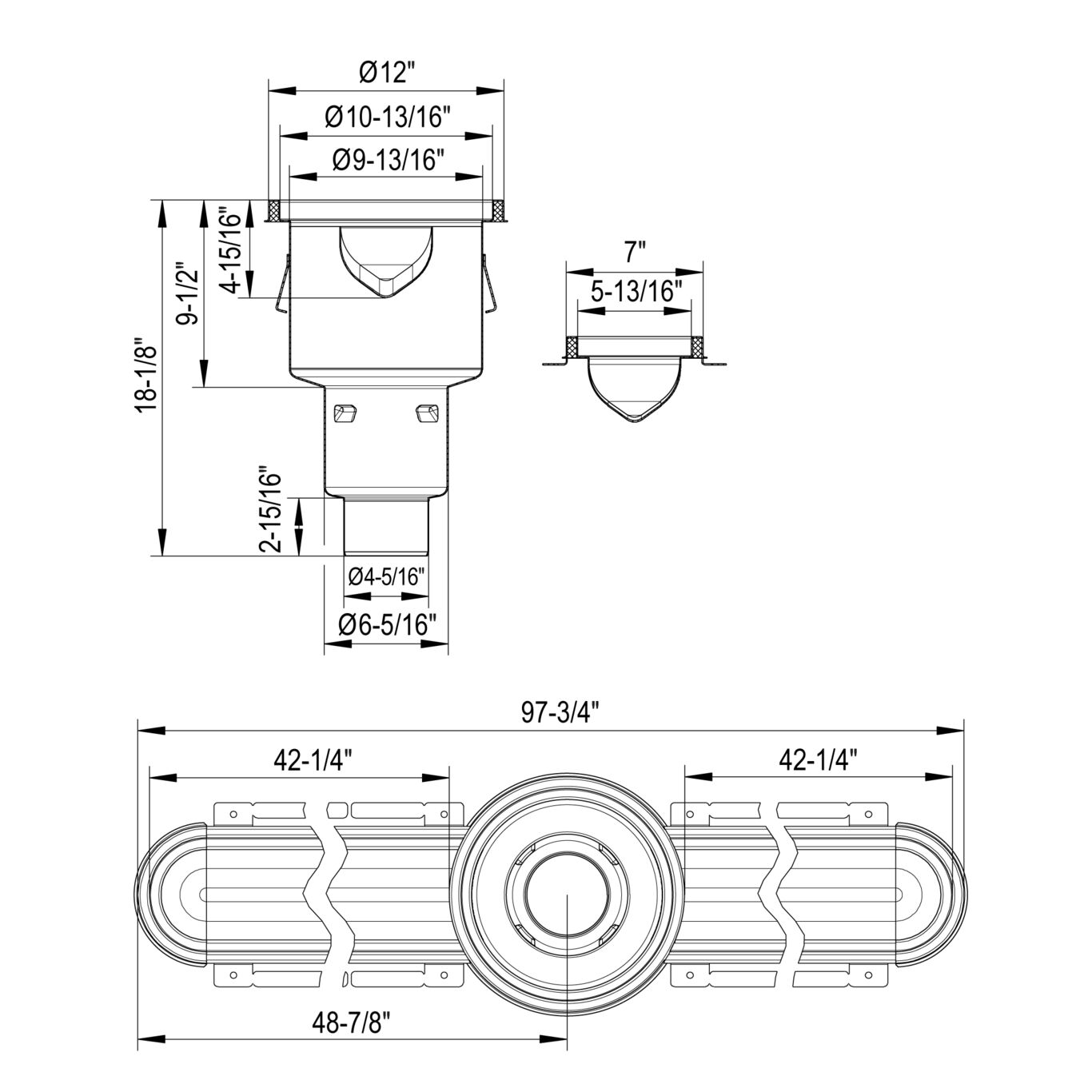

Size: 150x2000
HYGIENICPRO CHANNEL 5-7/8 x 78-3/4 CENTER OUTLET
-Medium model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 460 |
| Outlet Box | Yes |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x2000 |
| Size of Frame (Inch) | 5-7/8 x 78-3/4 |
| Weight (kg) | 20.61 |
| Weight (lbs) | 45.44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
