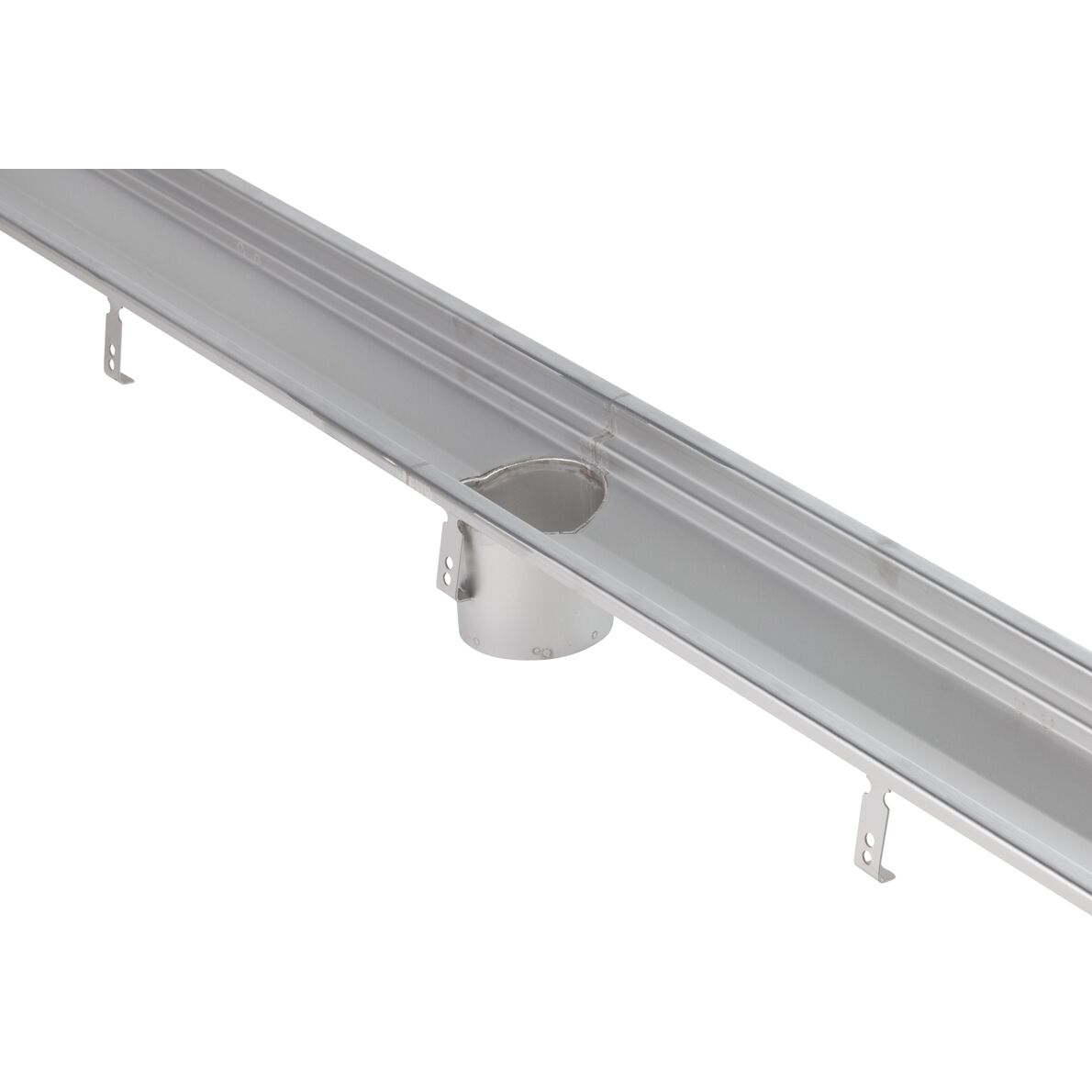

CHANNEL 150x1000 CENTER OUTLET - (670CH010-05BA)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670CH010-05BA
EAN no.: 5705499129427
NRF no.: 3397063
Size: 150x1000

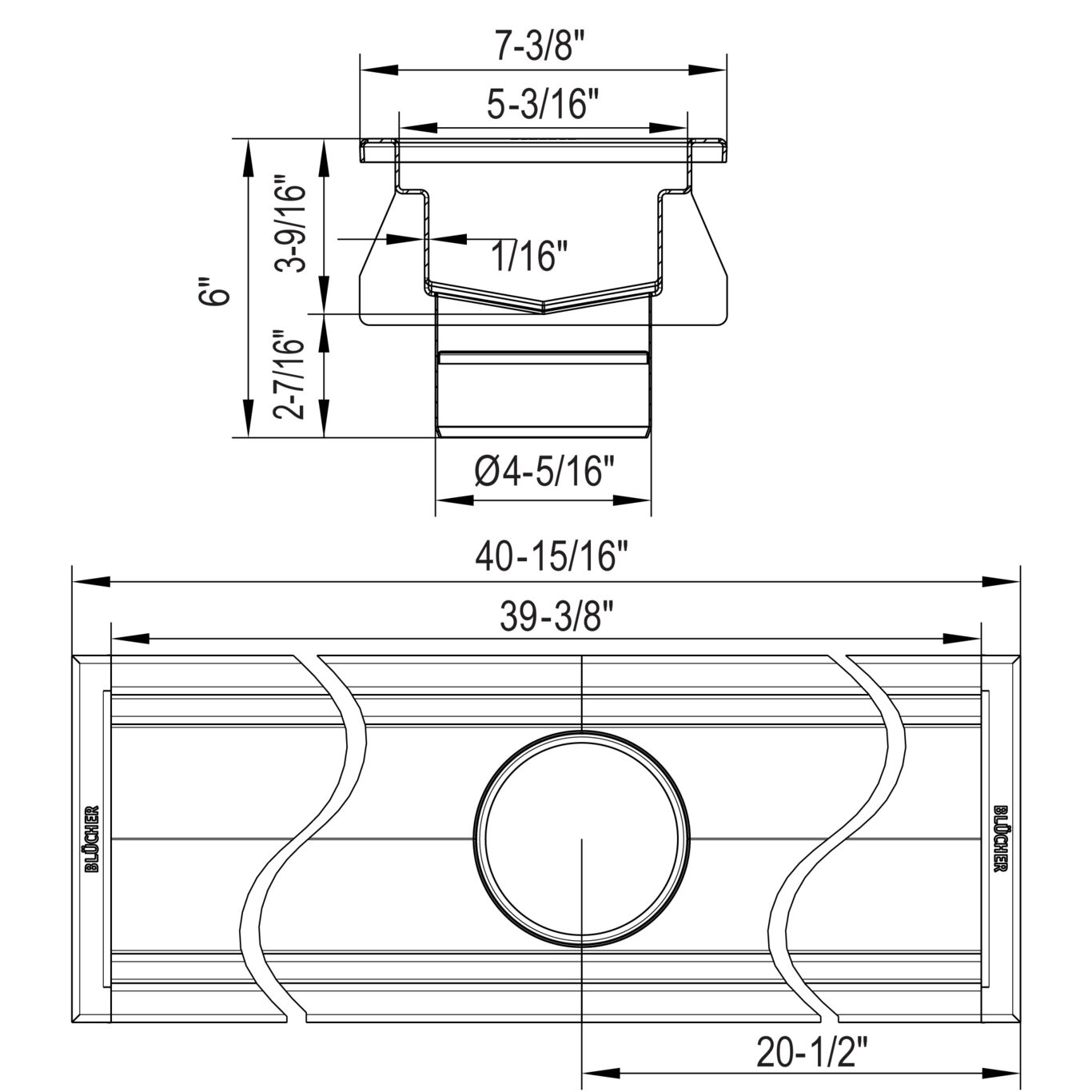

CHANNEL 5-7/8 x 39-3/8 CENTER OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x1000 |
| Size of Frame (Inch) | 5-7/8 x 39-3/8 |
| Weight (kg) | 6.25 |
| Weight (lbs) | 13.78 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
BLÜCHER® Channels EPD
US - NSF
NO - PS3079-21
AUS - WMKT00204 - 24 Lloyds Register LR22419510TA TÜRK LOYDU - 25041616077231247 RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA
