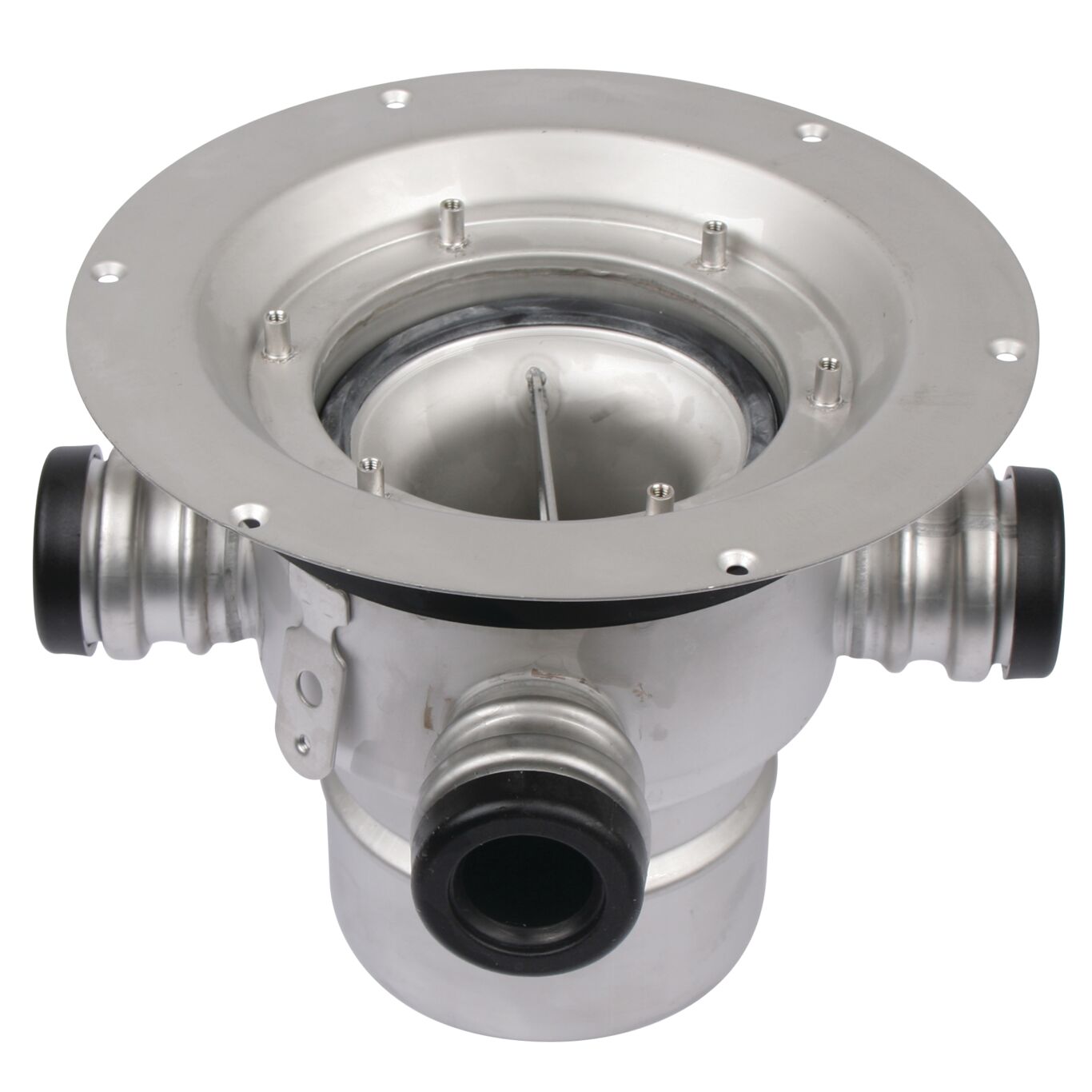

ADJUSTABLE LOWER PART MULTI - (251.200.110 V)

Part Of the Series: MULTI lower part

Type no.: 251.200.110 V

EAN no.: 5705499133271

NRF no.: 3394339

LVI no.: 3303885


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 206
Minimum Height (mm) 176
Number of Inlets 3 (Ø32/40mm)
Number of Inlets (Inch) 3 (Ø1-1/4 inch, 1-1/2 inch)
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Water Seal Height (mm) 50
Weight (kg) 1.77
Weight (lbs) 3.9
