ADJUSTABLE LOWER PART MULTI - (251.200.075 S)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 251.200.075 S
EAN no.: 5705499105766
RSK no.: 7120298

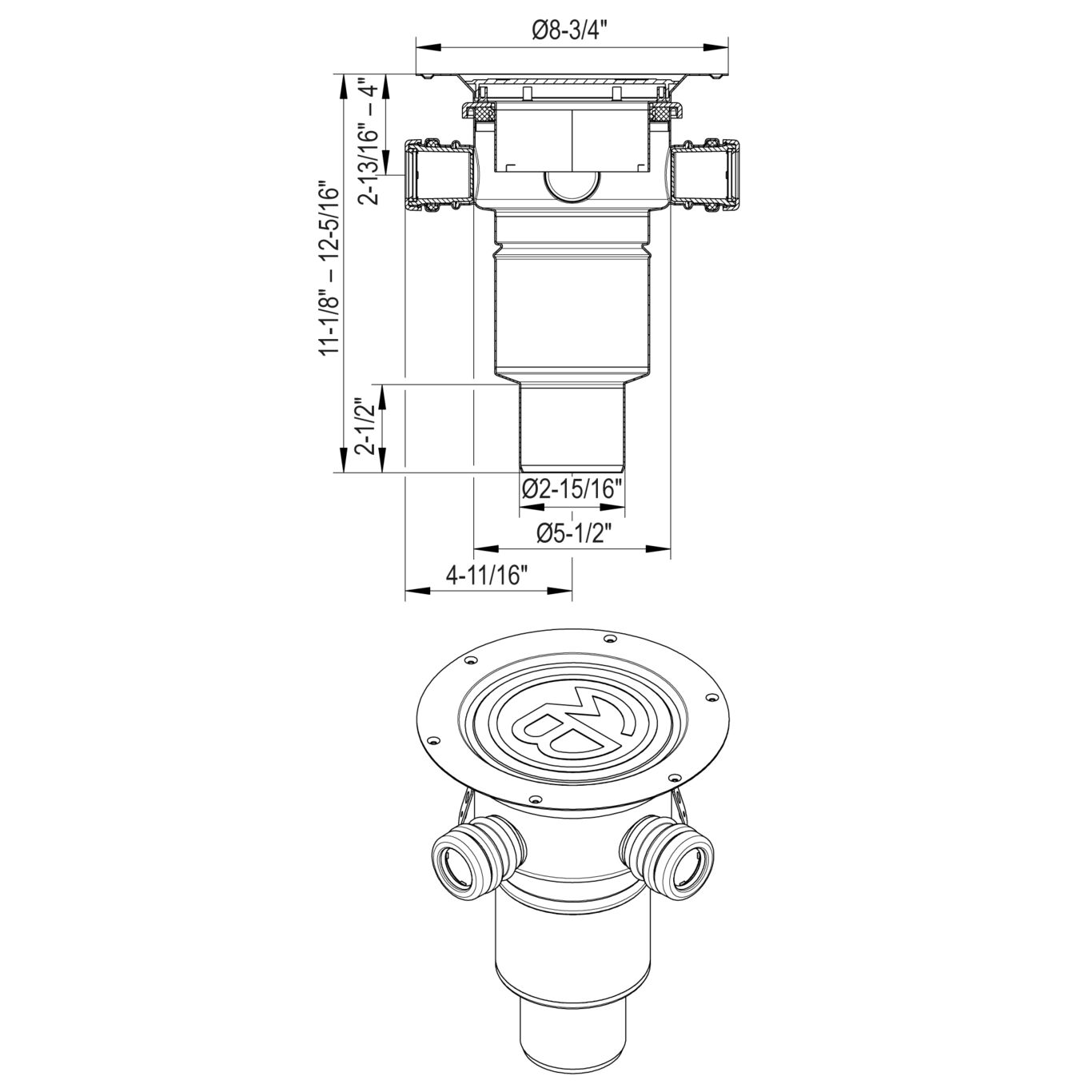

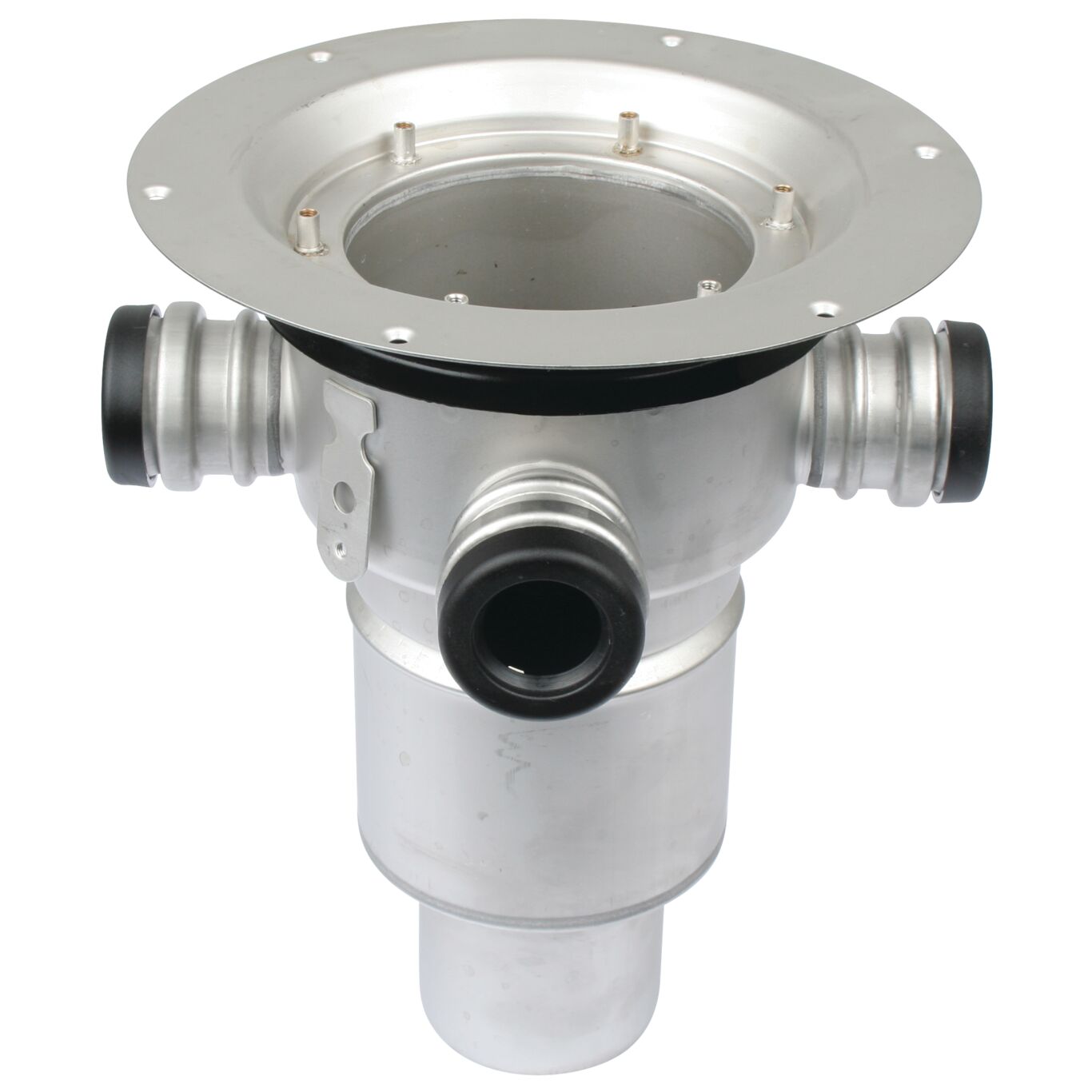

ADJUSTABLE LOWER PART MULTI
-With side inlets
-Floor: vinyl
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 313 |
| Minimum Height (mm) | 283 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of Inlets (Inch) | 3 (Ø1-1/4 inch, 1-1/2 inch) |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Weight (kg) | 1.8 |
| Weight (lbs) | 3.97 |
-
