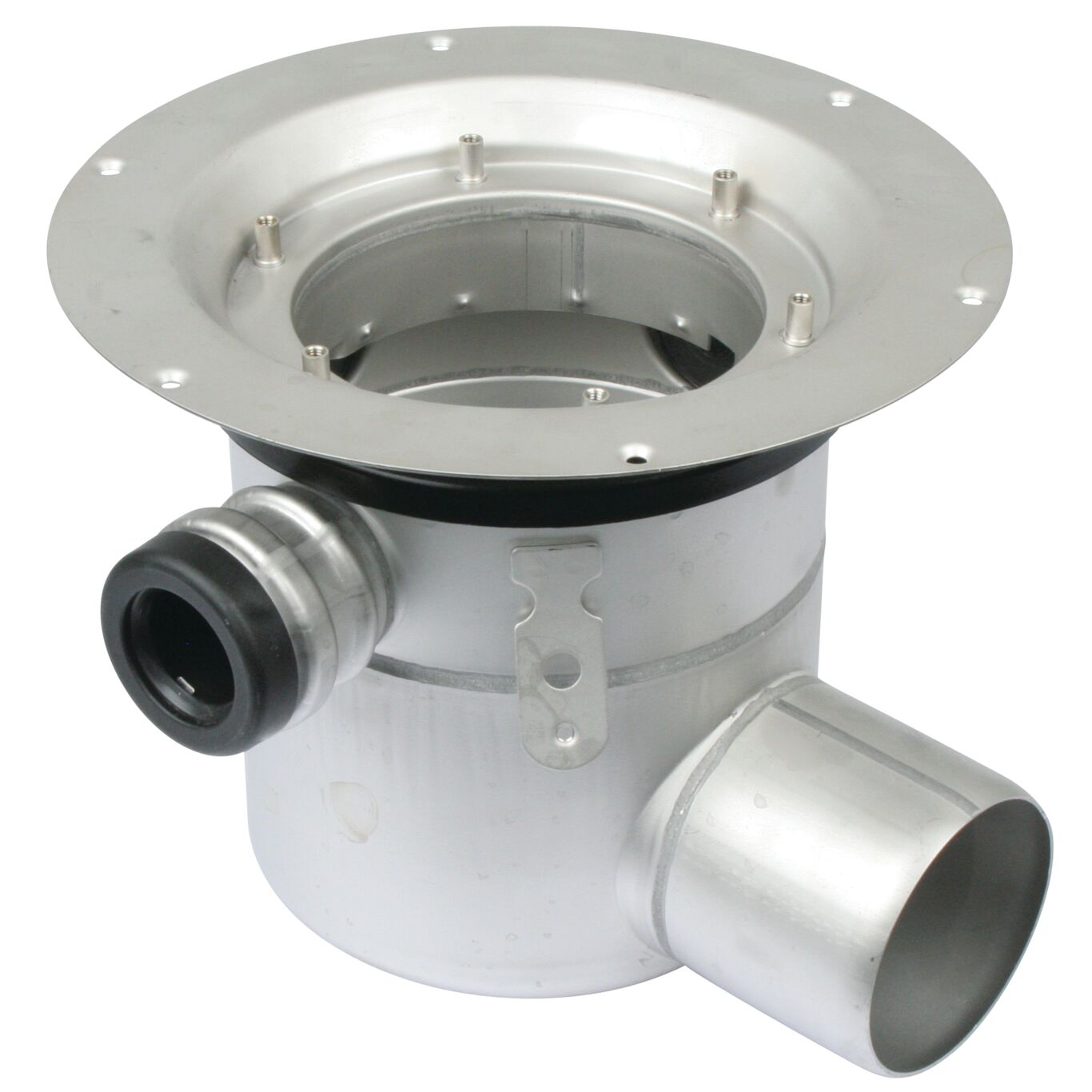

ADJUSTABLE LOWER PART MULTI - (211.200.075 VS)

Part Of the Series: MULTI lower part

Type no.: 211.200.075 VS

EAN no.: 5705499105827

RSK no.: 7120176

LVI no.: 3304123


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Material AISI 316L
Material (EN) EN 1.4404

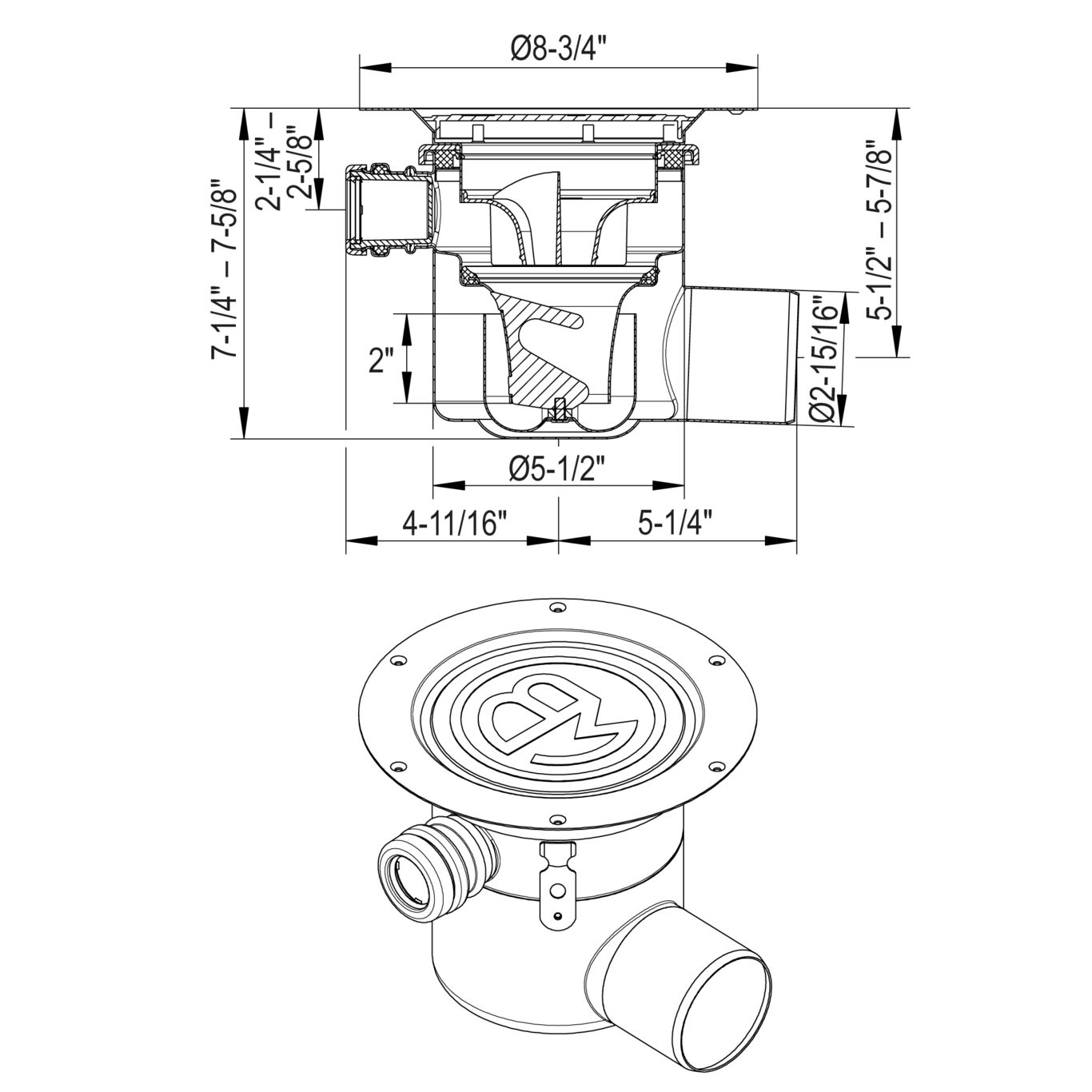

Maximum Height (mm) 194
Minimum Height (mm) 184
Number of Inlets 3 (Ø32/40mm)
Number of Inlets (Inch) 3 (Ø1-1/4 inch, 1-1/2 inch)
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Horizontal
Water Seal Height (mm) 50
Weight (kg) 2
Weight (lbs) 4.41
