ADJUSTABLE LOWER PART MULTI - (210.200.075 V)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 210.200.075 V
EAN no.: 5705499105797
RSK no.: 7119272
NRF no.: 3394886
LVI no.: 3303878

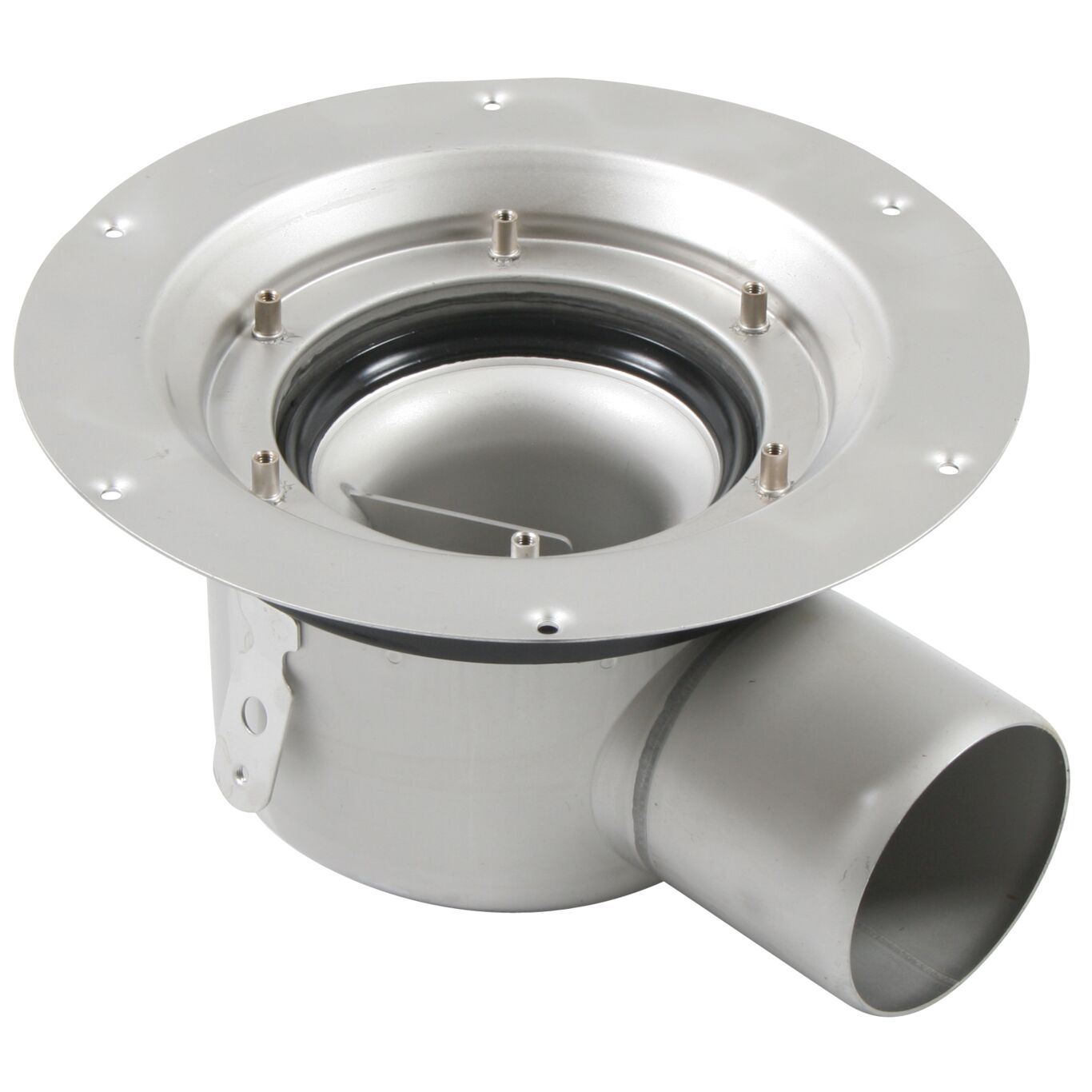

ADJUSTABLE LOWER PART MULTI
-With removable water trap
-Outlet: Ø3 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 153 |
| Minimum Height (mm) | 123 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1.6 |
| Weight (lbs) | 3.53 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
