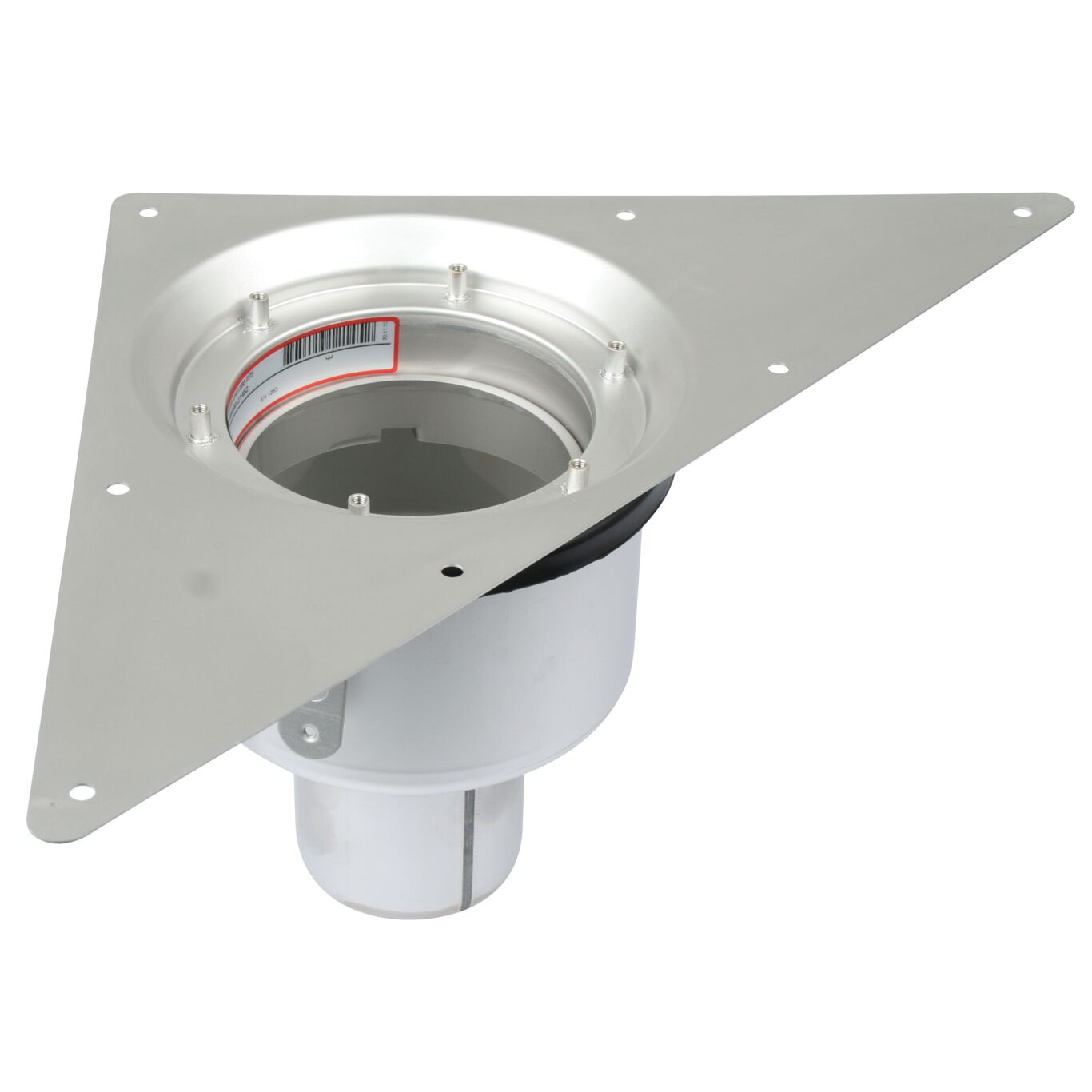

ADJUSTABLE LOWER PART MULTI FOR TRIO - (250.260.075)

Part Of the Series: MULTI lower part-triangular

Type no.: 250.260.075

EAN no.: 5705499121452

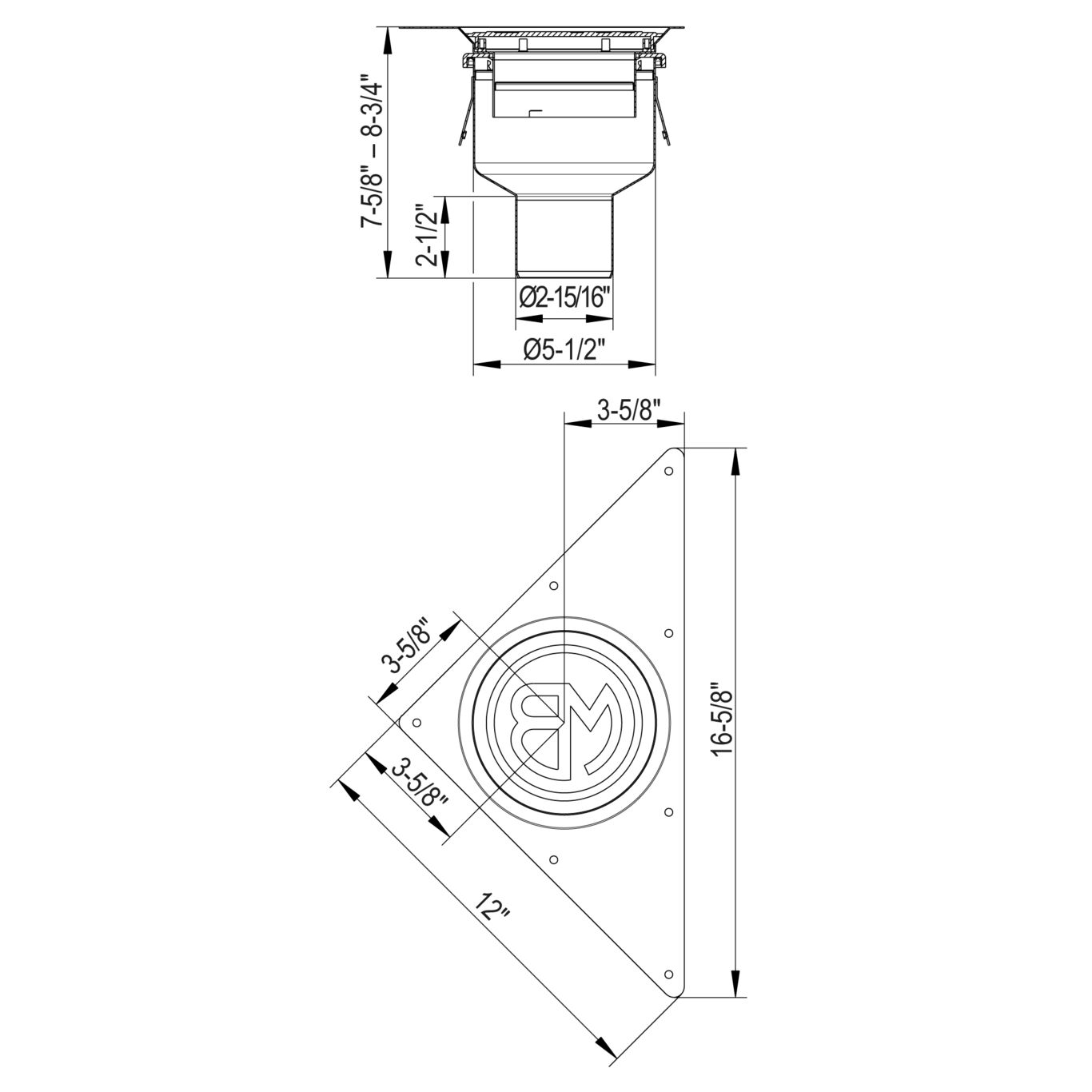

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 223
Minimum Height (mm) 193
Number of Inlets 0
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Vertical
Weight (kg) 1.28
Weight (lbs) 2.82
