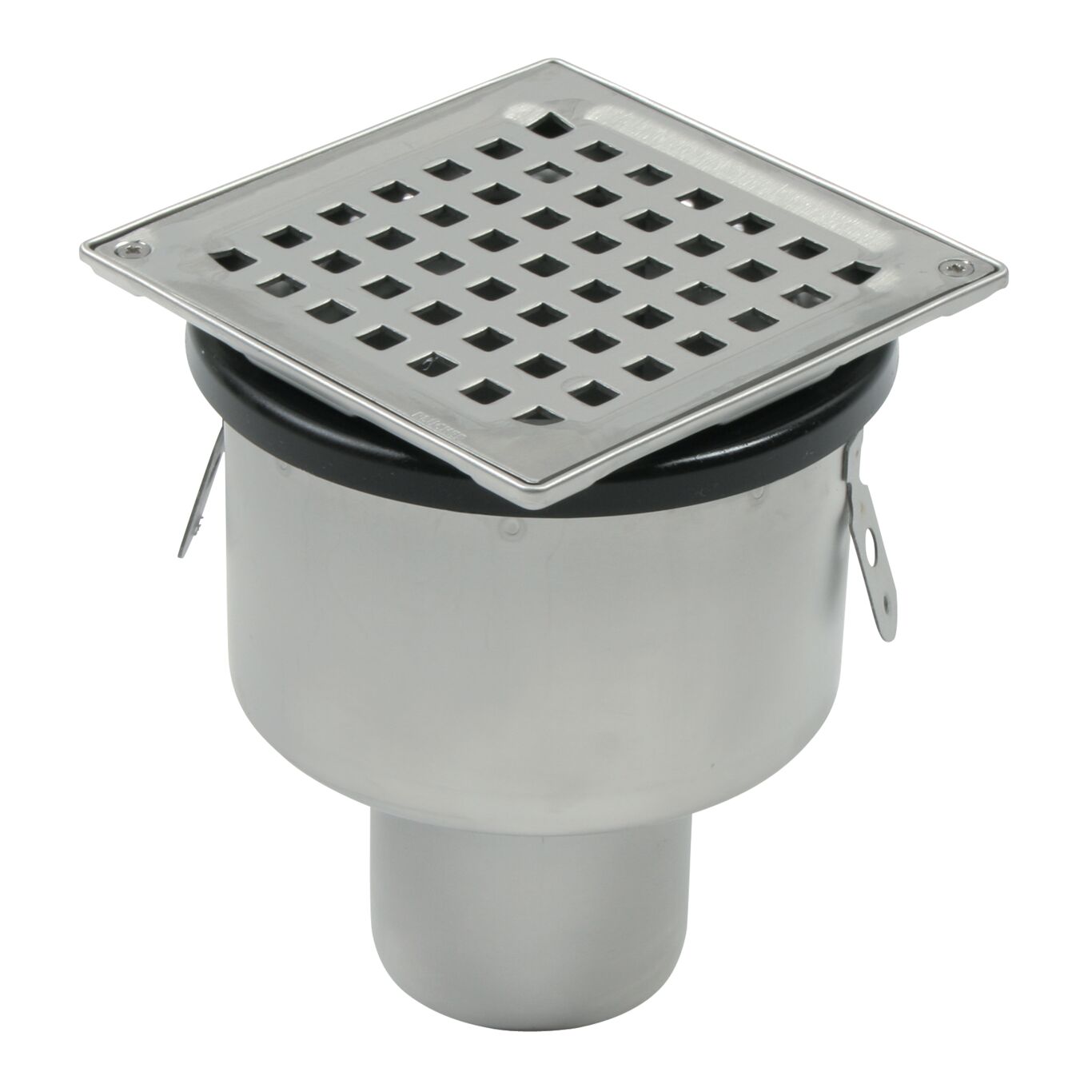

ADJUSTABLE SHOWER DRAIN SQUARE - (150.300.075 S)

Part Of the Series: Drain-No membrane-145

Type no.: 150.300.075 S

EAN no.: 5705499104899

VVS no.: 153321143

LVI no.: 3305757

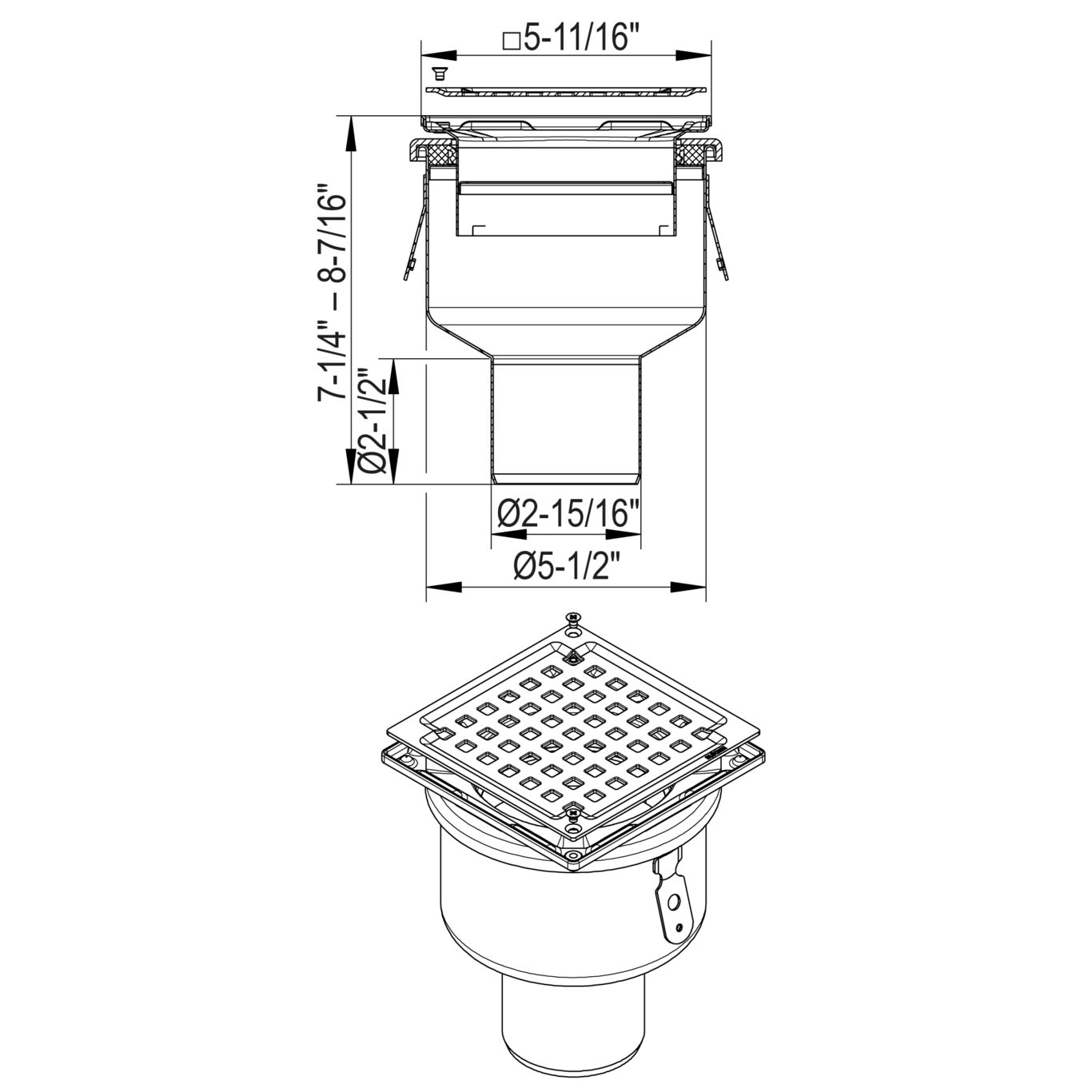

Size: 145x145


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 316L
Material (EN) EN 1.4404
Maximum Height (mm) 215
Membrane Type No Membrane
Number of Inlets 0
Number of Screw Holes 2
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Vertical
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 1.3
Weight (lbs) 2.87
