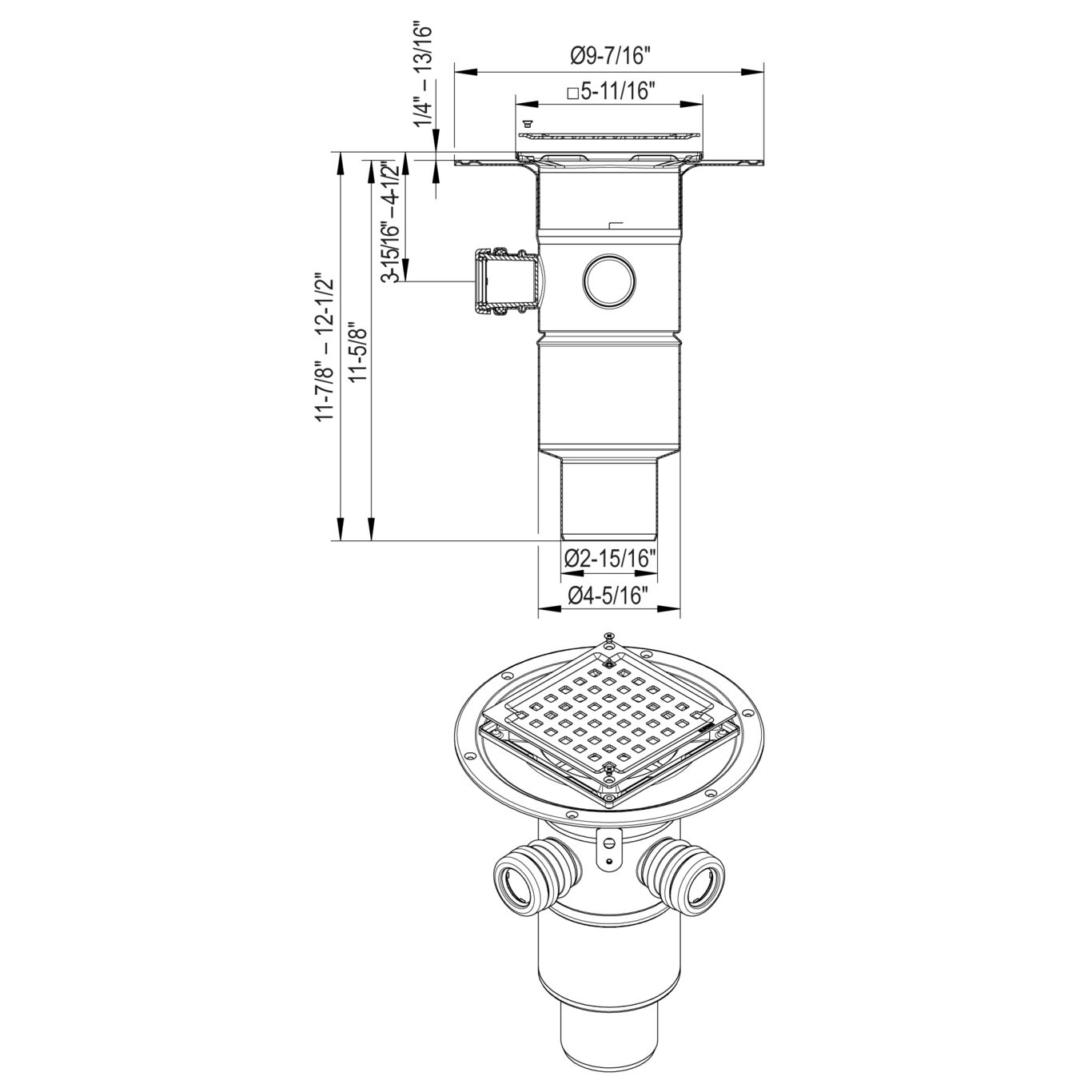

ADJUSTABLE SHOWER DRAIN SQUARE - (361.300.075)

Part Of the Series: Drain-Liquid membrane-145

Type no.: 361.300.075

EAN no.: 5705499105544

VVS no.: 153584313

NRF no.: 3394703

Size: 145x145


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 317
Membrane Type Liquid Membrane
Number of Inlets 2 (Ø32/40mm)
Number of Inlets (Inch) 2 (Ø1-1/4 inch, 1-1/2 inch)
Number of Screw Holes 2
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Vertical
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 1.9
Weight (lbs) 4.19
