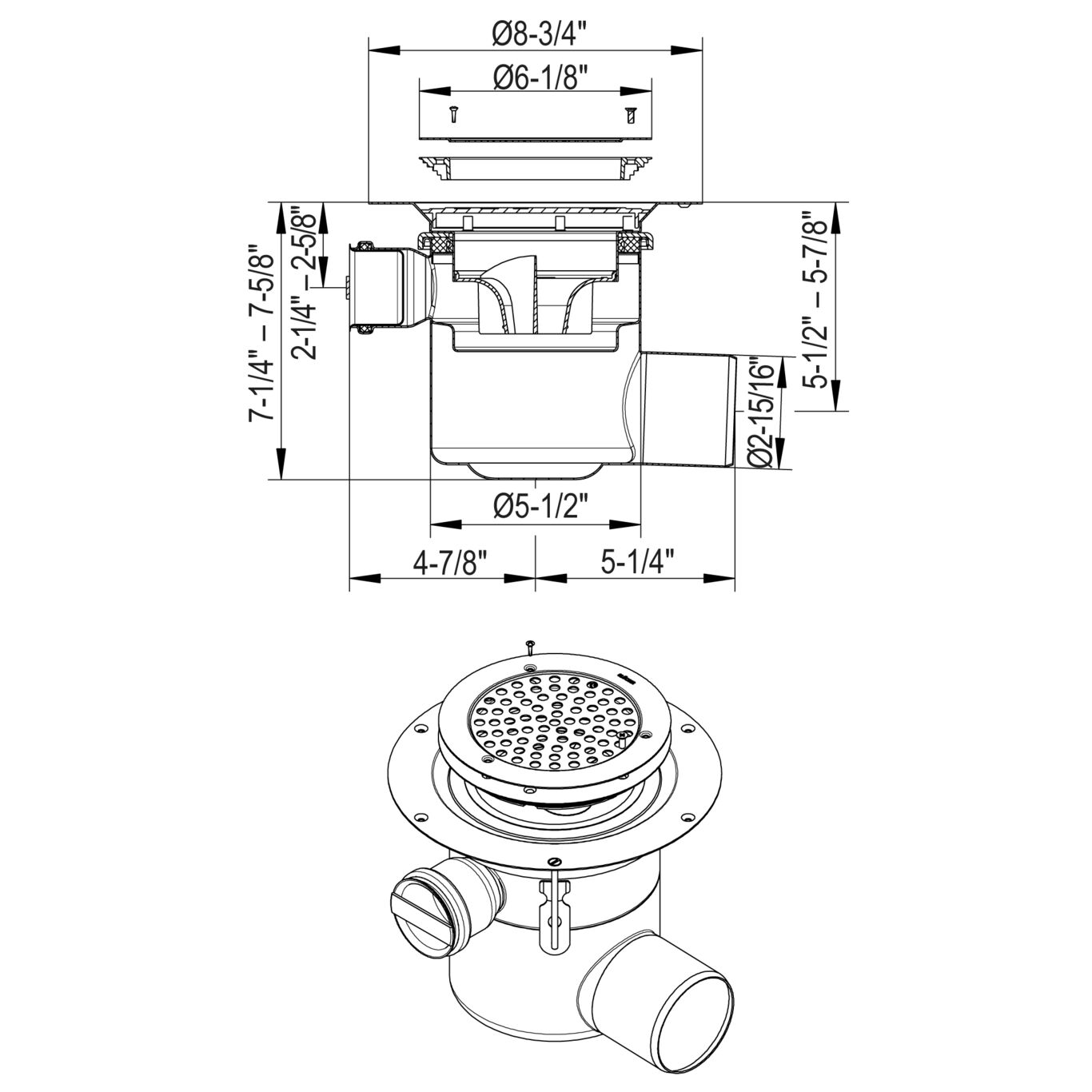

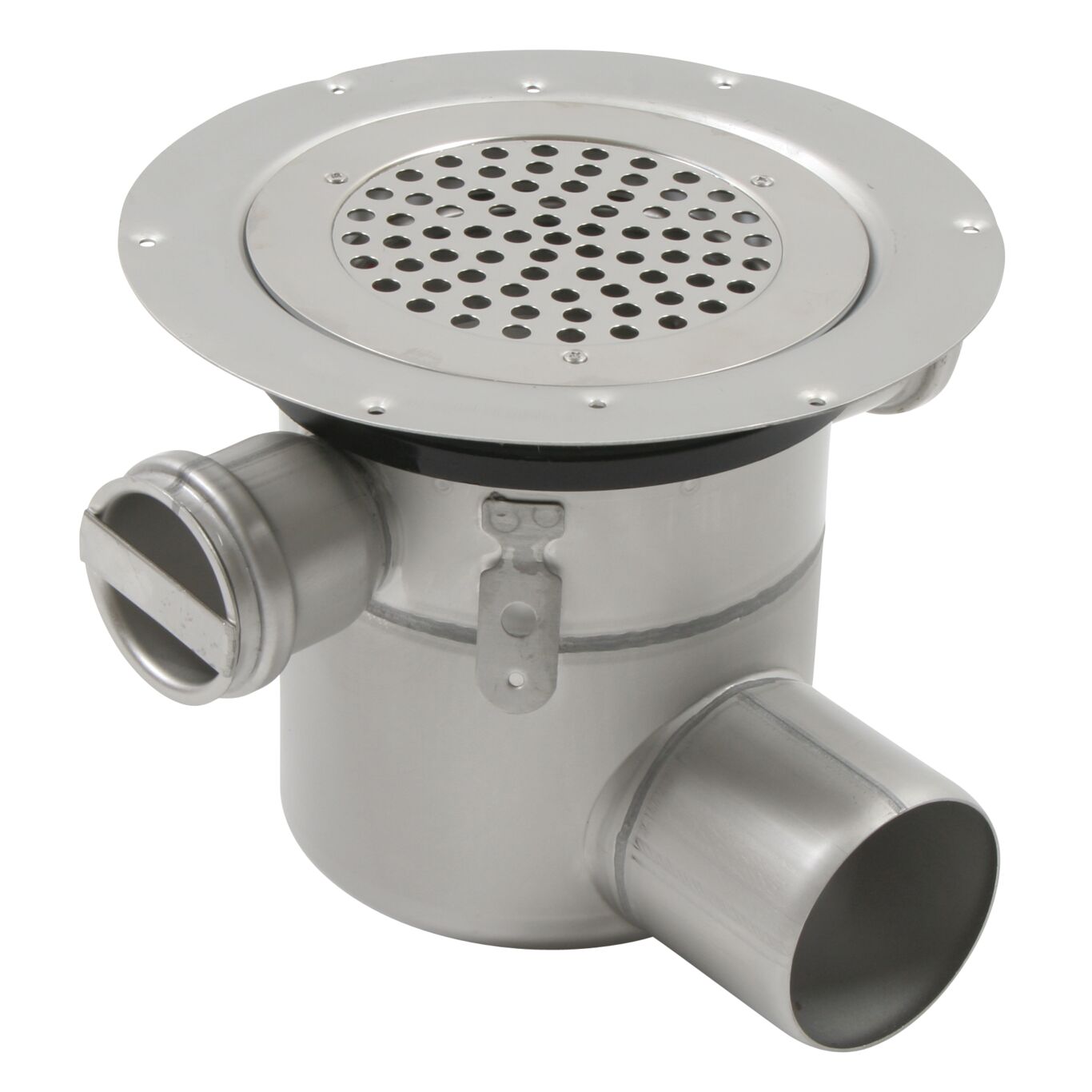

ADJUSTABLE SHOWER DRAIN CIRCLE - (211.303.075)

Part Of the Series: Drain-Vinyl-155

Type no.: 211.303.075

EAN no.: 5705499123722

LVI no.: 3305777

Size: Ø155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Vinyl
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 193
Minimum Height (mm) 183
Number of Inlets 3 (Ø50mm)
Number of Inlets (Inch) 3 (Ø2 inch)
Number of Screw Holes 3
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Horizontal
Shape Round
Size (mm) Ø155
Size of Frame (Inch) Ø6-1/8
Weight (kg) 1.96
Weight (lbs) 4.32
