INDUSTRIAL DRAIN, LOW - (726.502.110)
×
![]()
Part Of the Series: Drain-No membrane-205
Type no.: 726.502.110
EAN no.: 5705499108965
VVS no.: 153050302
NRF no.: 3396369
LVI no.: 3303663
Size: Ø205

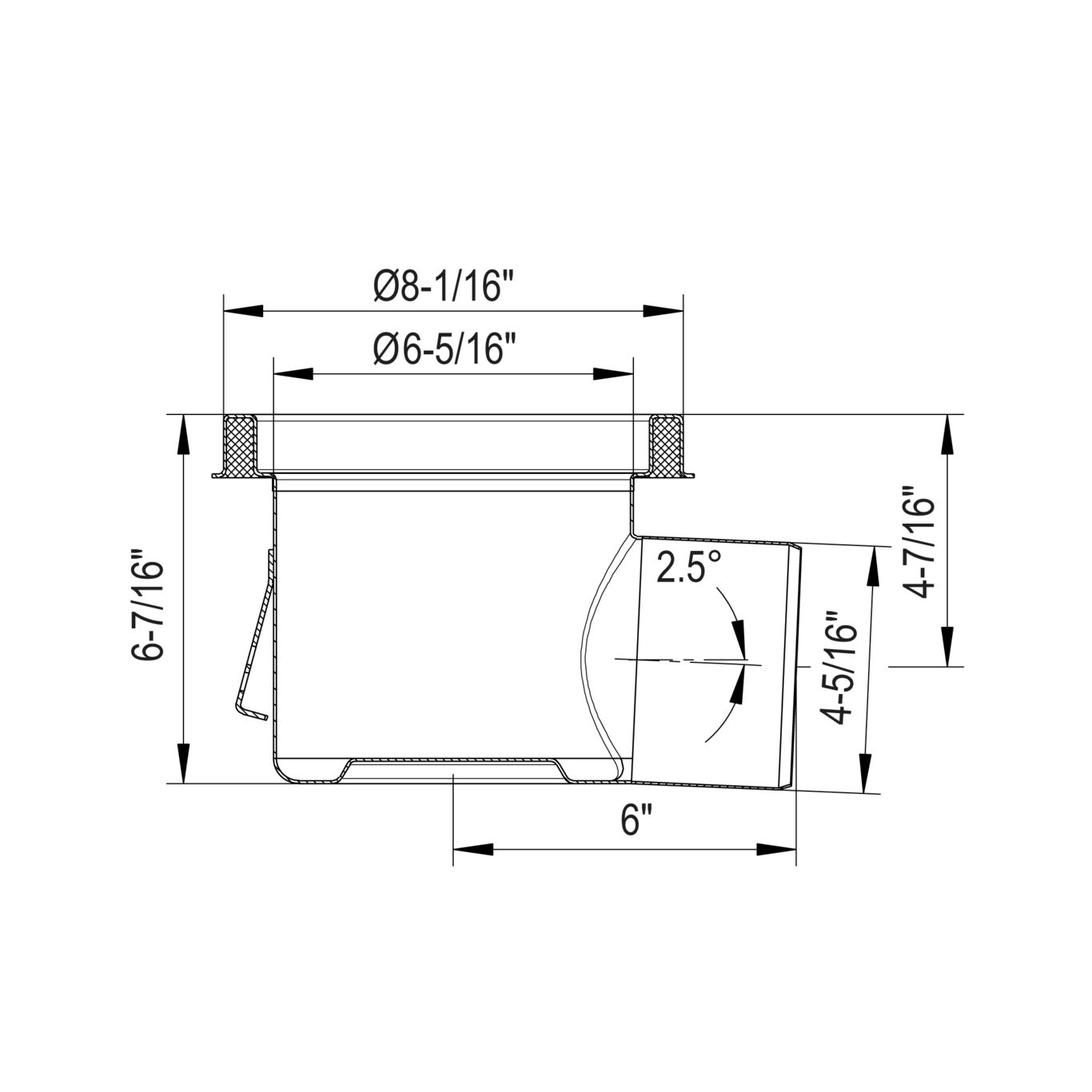

INDUSTRIAL DRAIN, LOW
-Floor: resin
-Frame: Ø8-1/8 inch
-Outlet: Ø4 inch, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-424-SO
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 164 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø205 |
| Size of Frame (Inch) | Ø8-1/8 |
| Weight (kg) | 2.25 |
| Weight (lbs) | 4.96 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
