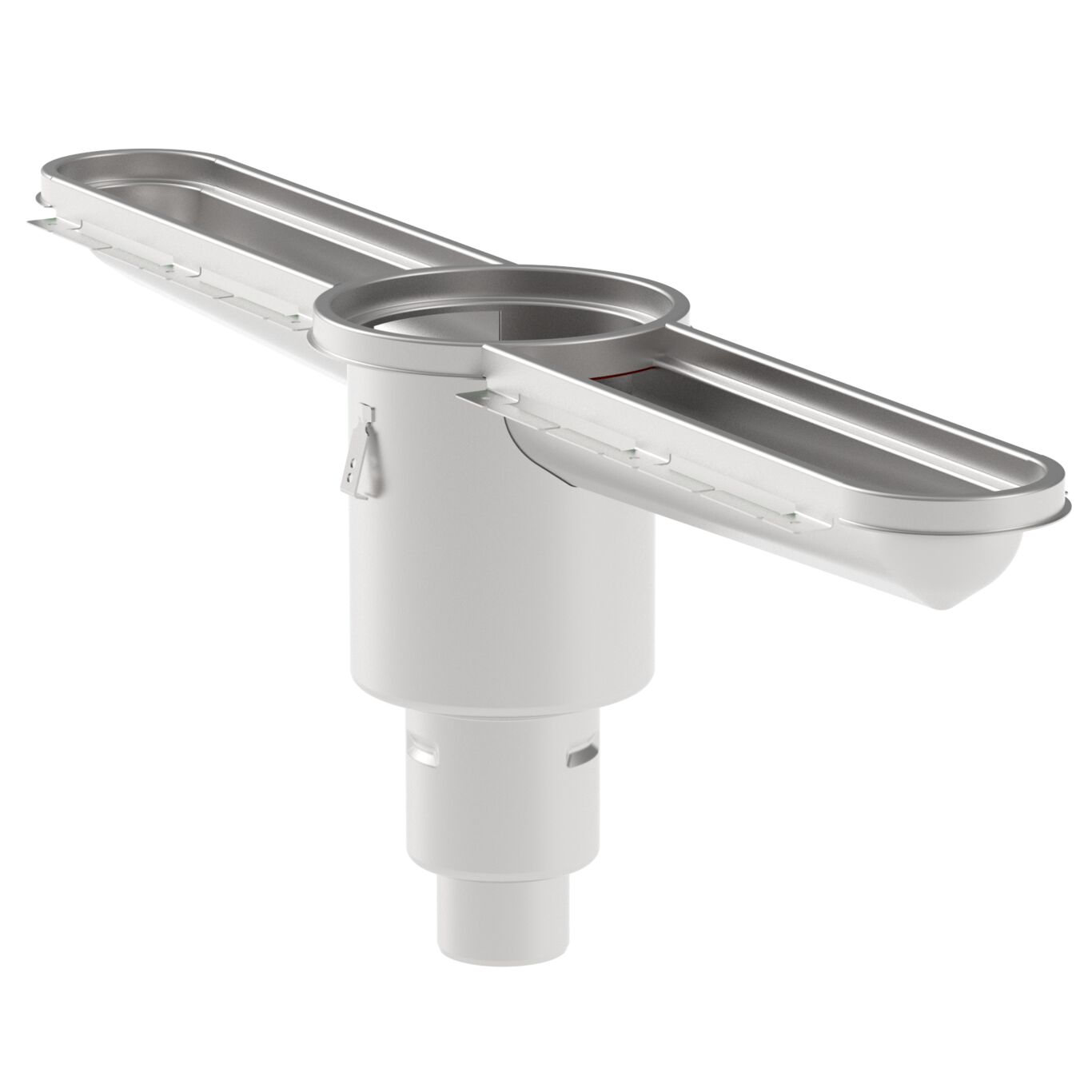

HYGIENICPRO CHANNEL 150x10000 CENTER OUTLET - (676CC100-50EF S)

Part Of the Series: Channel-No membrane

Type no.: 676CC100-50EF S

EAN no.: 5705499137712

LVI no.: 3305716

Size: 150x10000

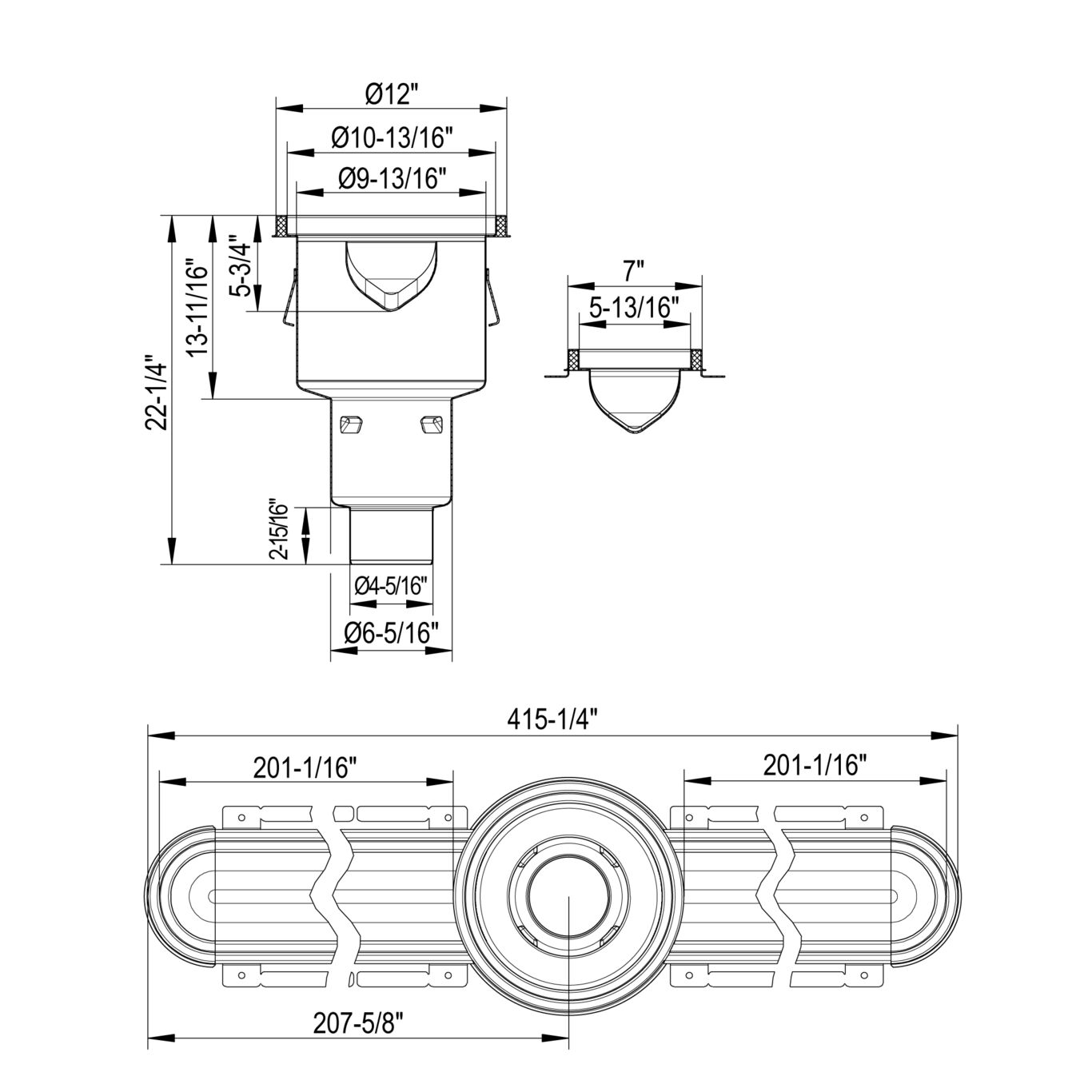

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Minimum Height (mm) 565
Outlet Box Yes
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 150x10000
Size of Frame (Inch) 5-7/8 x 393-3/4
Weight (kg) 77.47
Weight (lbs) 170.79
  • Approval Information

    For approval information, please refer to the below approval certificates.
