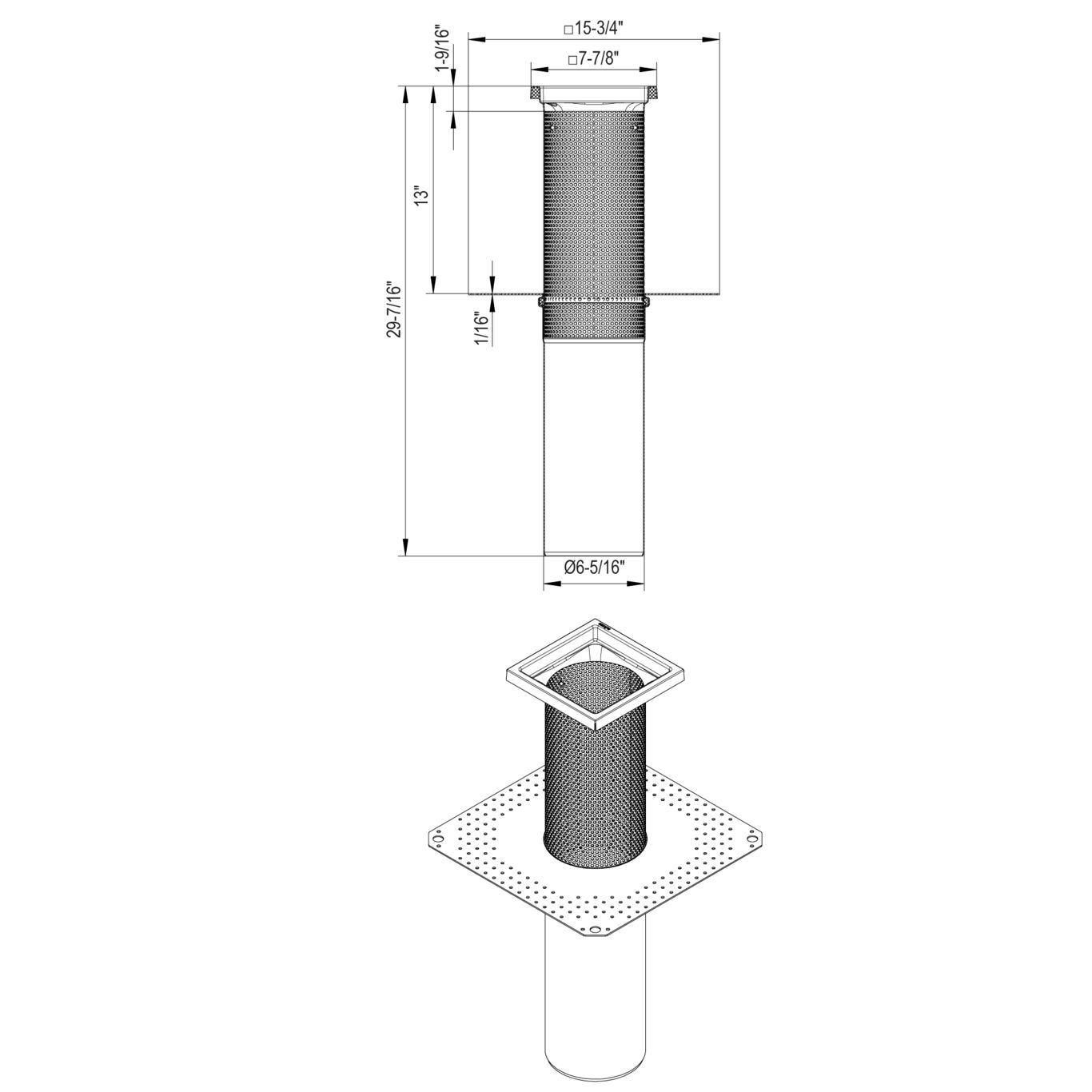

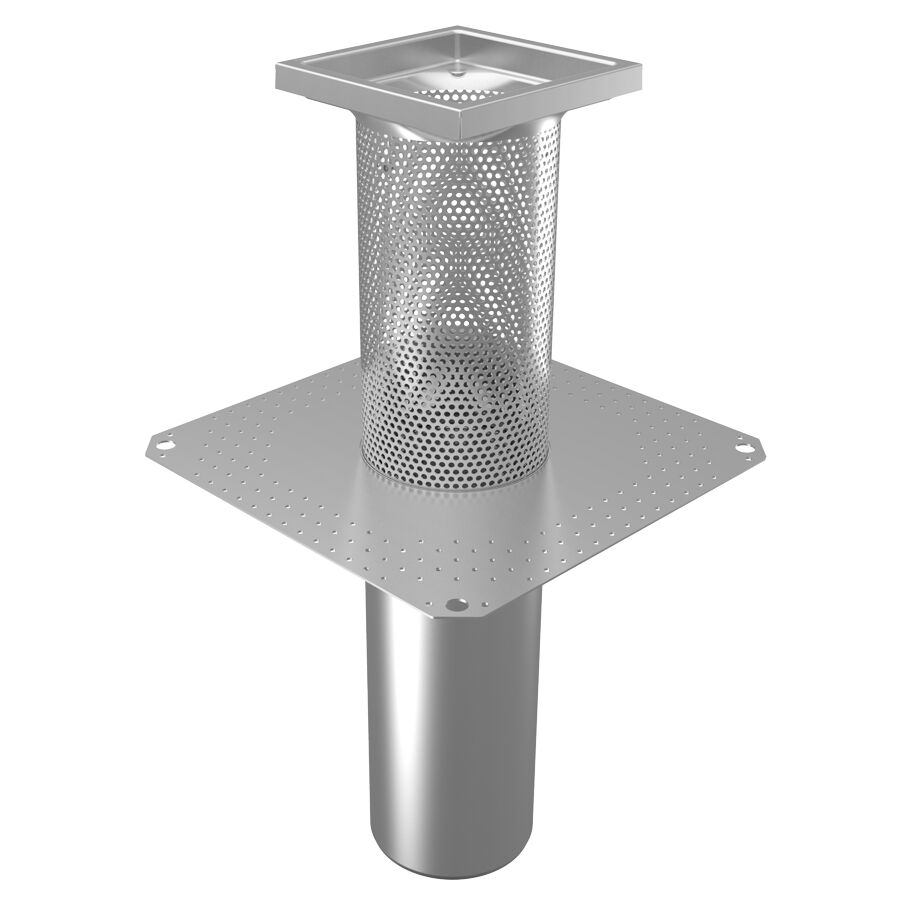

ROOF DRAIN FOR GRAVITY - (401.170.160)

Part Of the Series: Drain for gravity-bitumen

Type no.: 401.170.160

EAN no.: 5705499134889

VVS no.: 164107160


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 14.1
Minimum Height (mm) 748
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Roof Bitumen
System Gravity
Weight (kg) 6.14
Weight (lbs) 13.54
