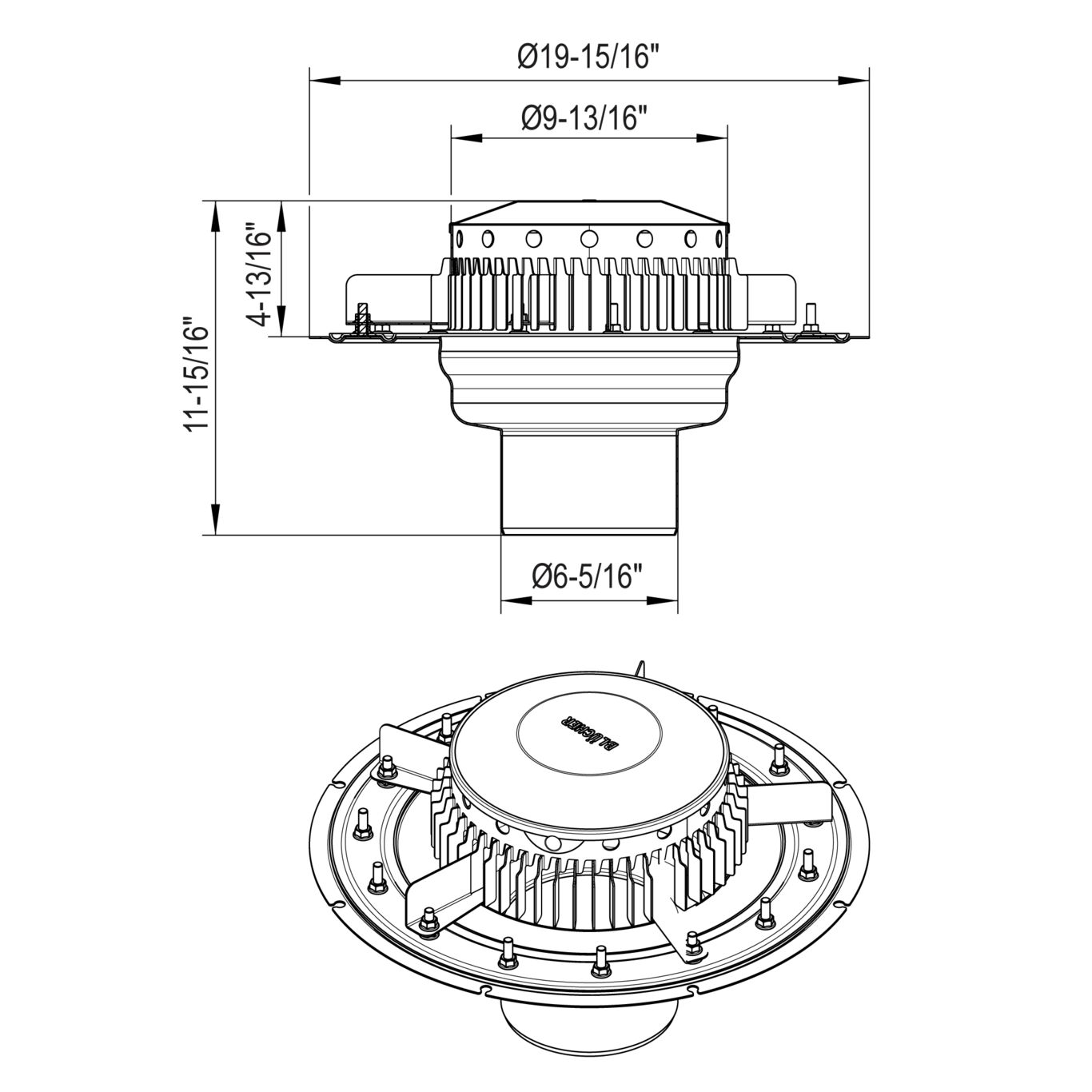

ROOF DRAIN FOR GRAVITY - (408.101.160)

Part Of the Series: Drain for gravity-bitum or single ply membrane

Type no.: 408.101.160

EAN no.: 5705499139020

NRF no.: 3397206


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 14.3
Minimum Height (mm) 303
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Roof Bitumen / Single ply membrane
System Gravity
Weight (kg) 6.55
Weight (lbs) 14.44
