PENETRATION WITH SPIGOT - (872.114.110 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.114.110 S
EAN no.: 5705499411379
NRF no.: 2170348

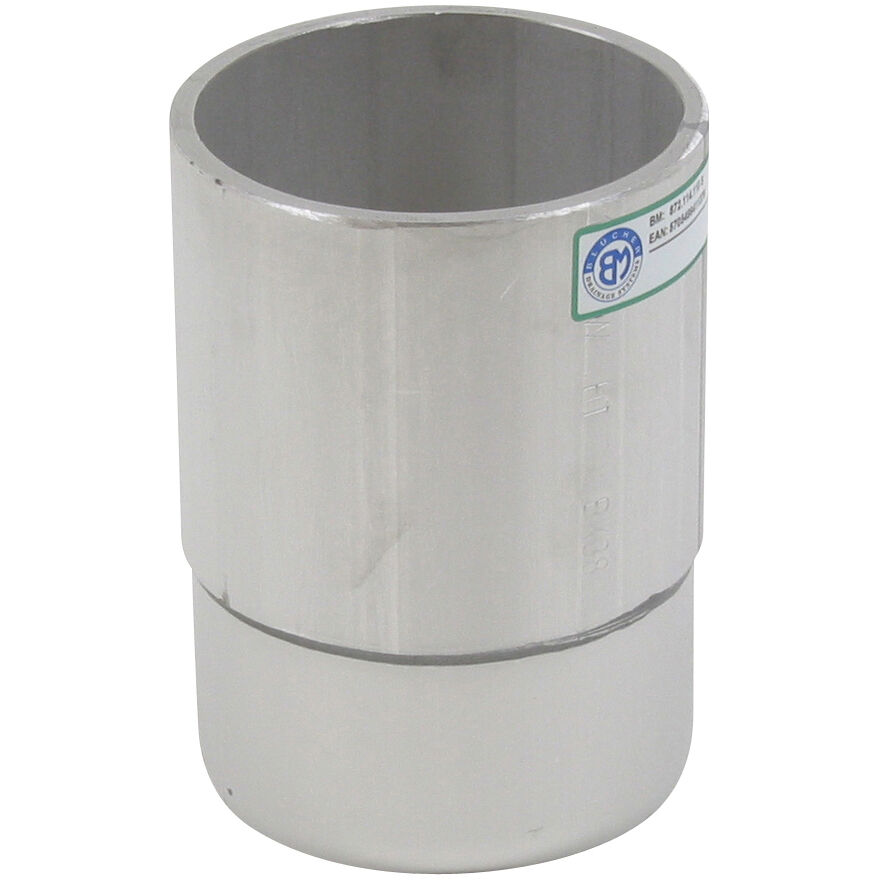

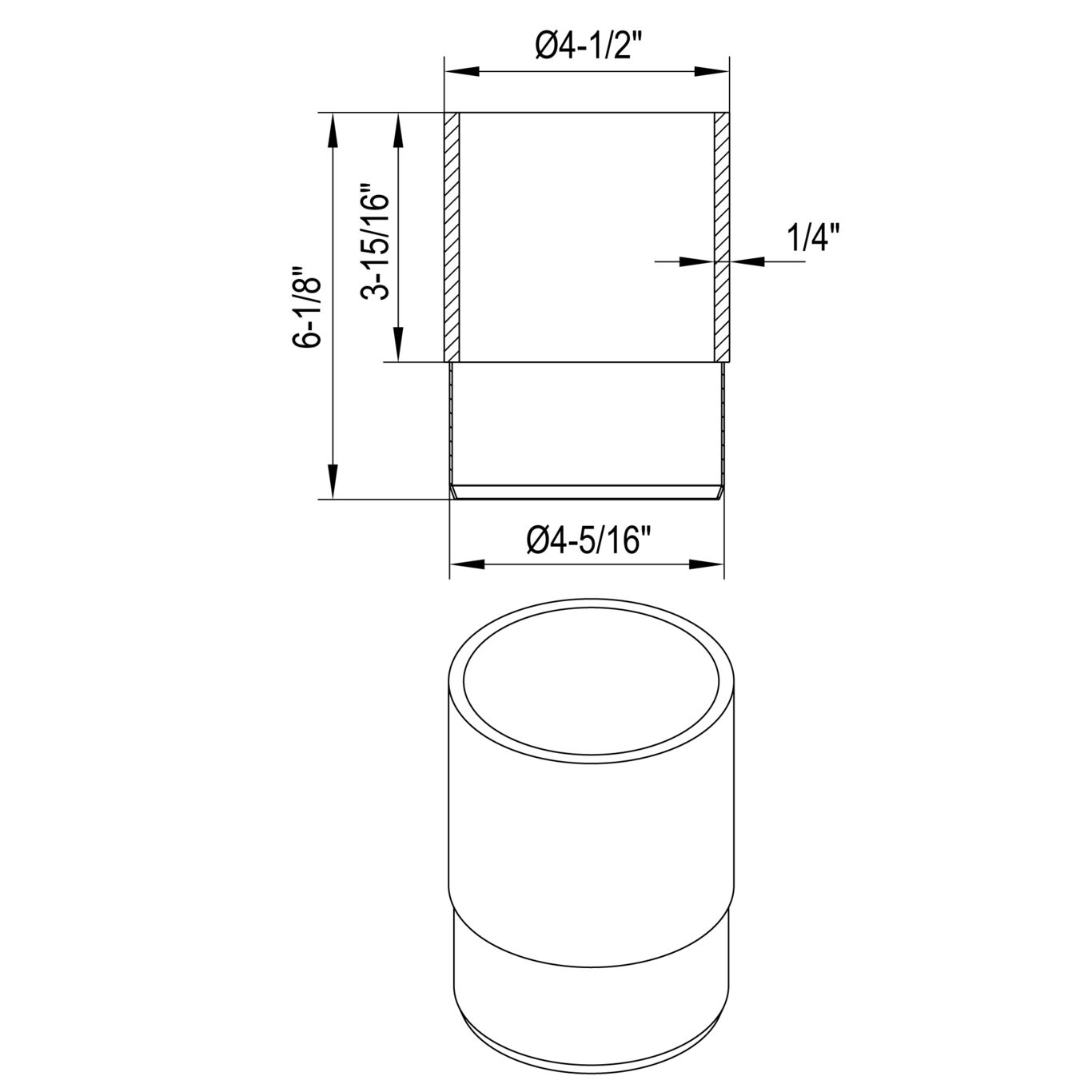

PENETRATION WITH SPIGOT
- Welding transition: Ø114.3mm
- Diameter: Ø110mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 155 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1.77 |
| Weight (lbs) | 3.9 |
-
Approval Information
For approval information, please refer to the below approval certificates.
Declaration of Conformity Welded penetrations
DK - VA 2.42/19617-23
HACCP Food Safety Programme - Europe
BLÜCHER® EuroPipe EPD
