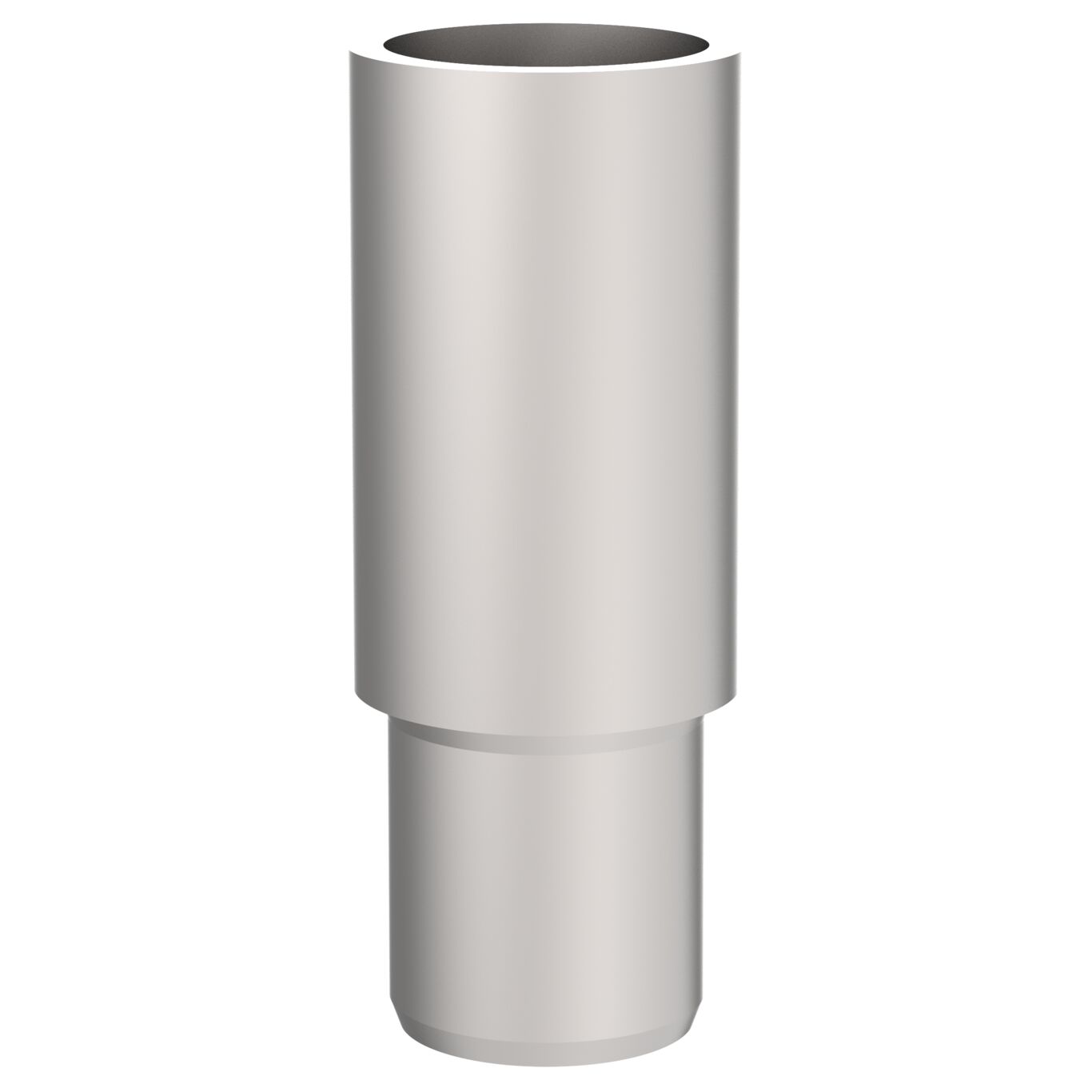

PENETRATION WITH SPIGOT - (872.060.050 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.060.050 S
EAN no.: 5705499411348
NRF no.: 2170344
PENETRATION WITH SPIGOT

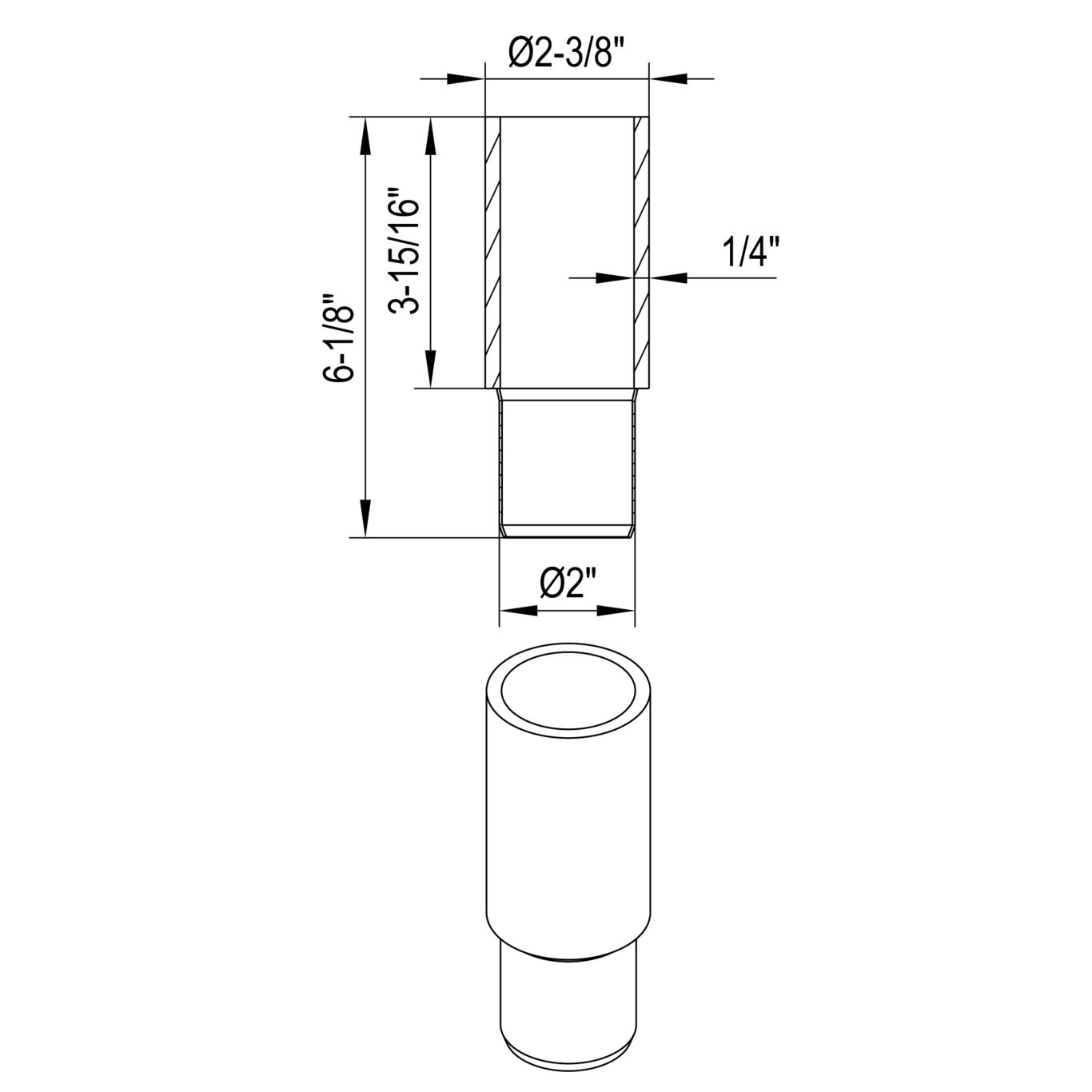

- Welding transition: Ø60.3mm
- Diameter: Ø50mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 155 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.82 |
| Weight (lbs) | 1.81 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DNV - MEDB000016W, Rev7 KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 ABS - LD1716353-PDA Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings
