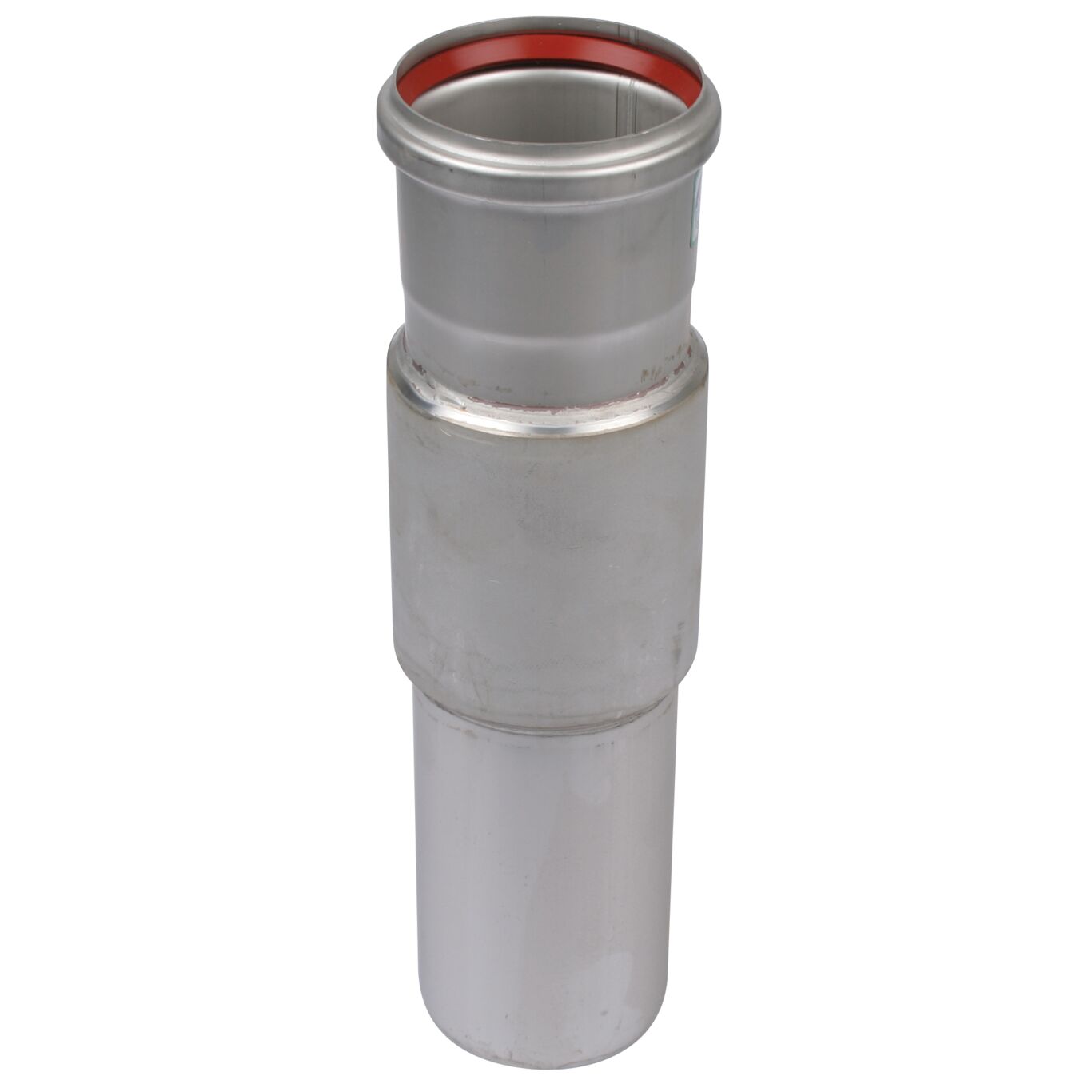

PENETRATION WITH SLEEVE - (866.025.075.10F)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.075.10F
EAN no.: 5705499411119
NRF no.: 2172388
PENETRATION WITH SLEEVE
-Diameter: Ø75mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 1.5 |
| Weight (lbs) | 3.31 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.42/19617-23
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Australasia
Declaration of Conformity Welded penetrations
