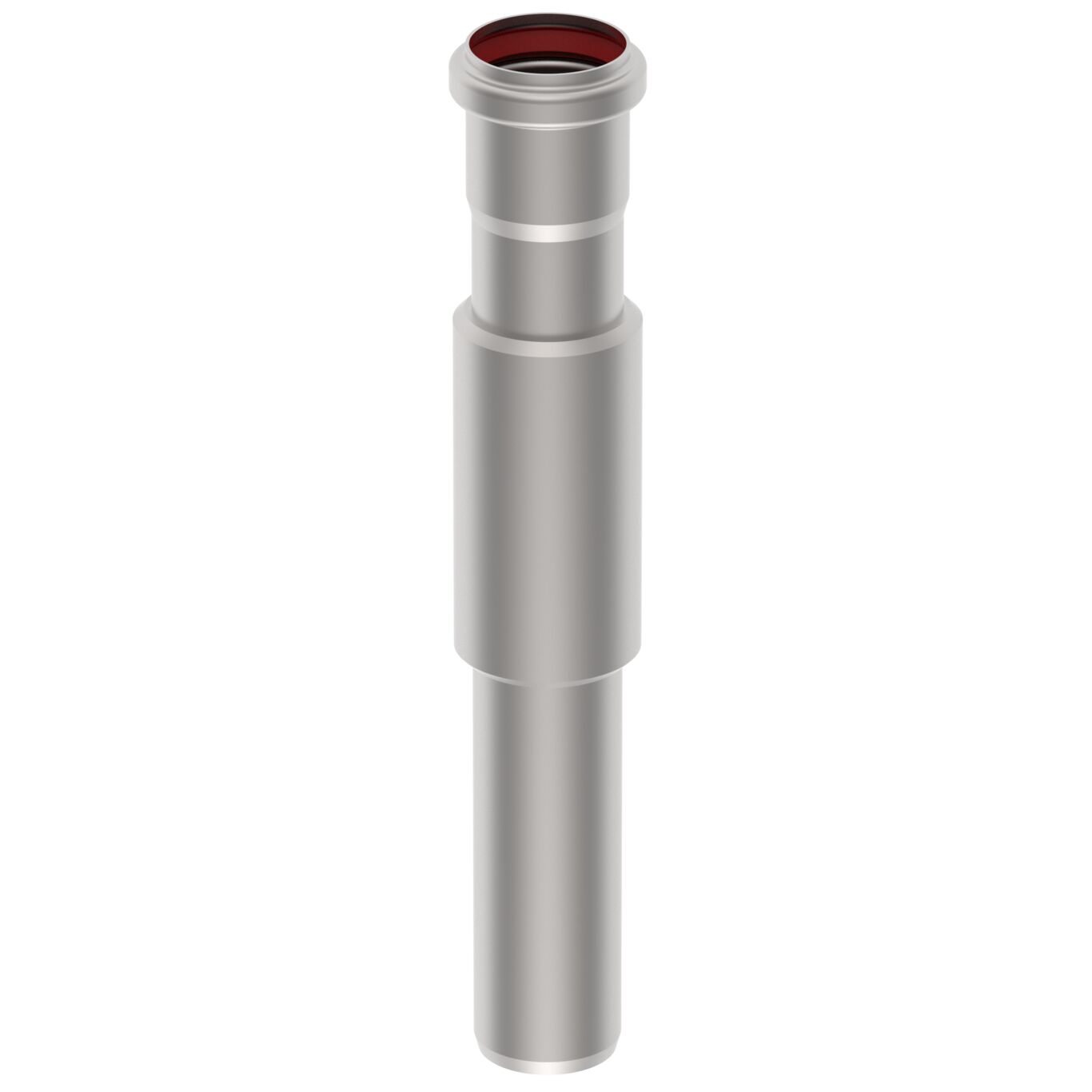

PENETRATION WITH SLEEVE - (866.025.040.10FS)

Part Of the Series: Penetration-welding sleeve-steel

Type no.: 866.025.040.10FS

EAN no.: 5705499413267

NRF no.: 2172742


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Deck Steel
EC/MED (Bulkhead) A0-A60
EC/MED (Deck) A0-A60
Length (mm) 250
Material AISI 316L
Material (EN) EN 1.4404
Outlet dia. (mm) 40
Outlet Diameter (Inch) 1-1/2
Weight (kg) 0.83
Weight (lbs) 1.83

Clamps

Oil/Lubricant

Plugs

Sealing rings
