PENETRATION WITH SLEEVE - (866.032.050.05)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel-wash basin
Type no.: 866.032.050.05
EAN no.: 5705499403985
NRF no.: 2170328

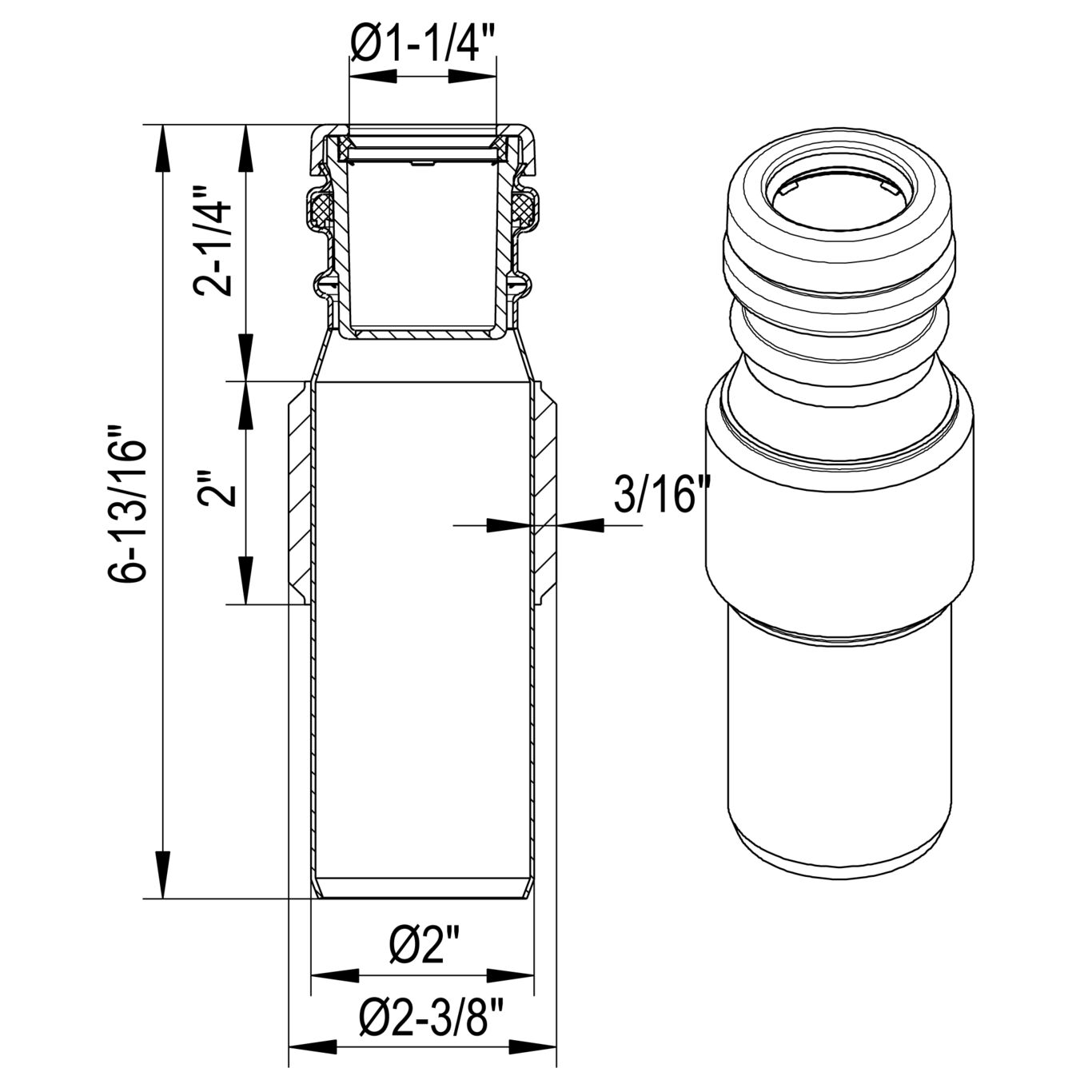

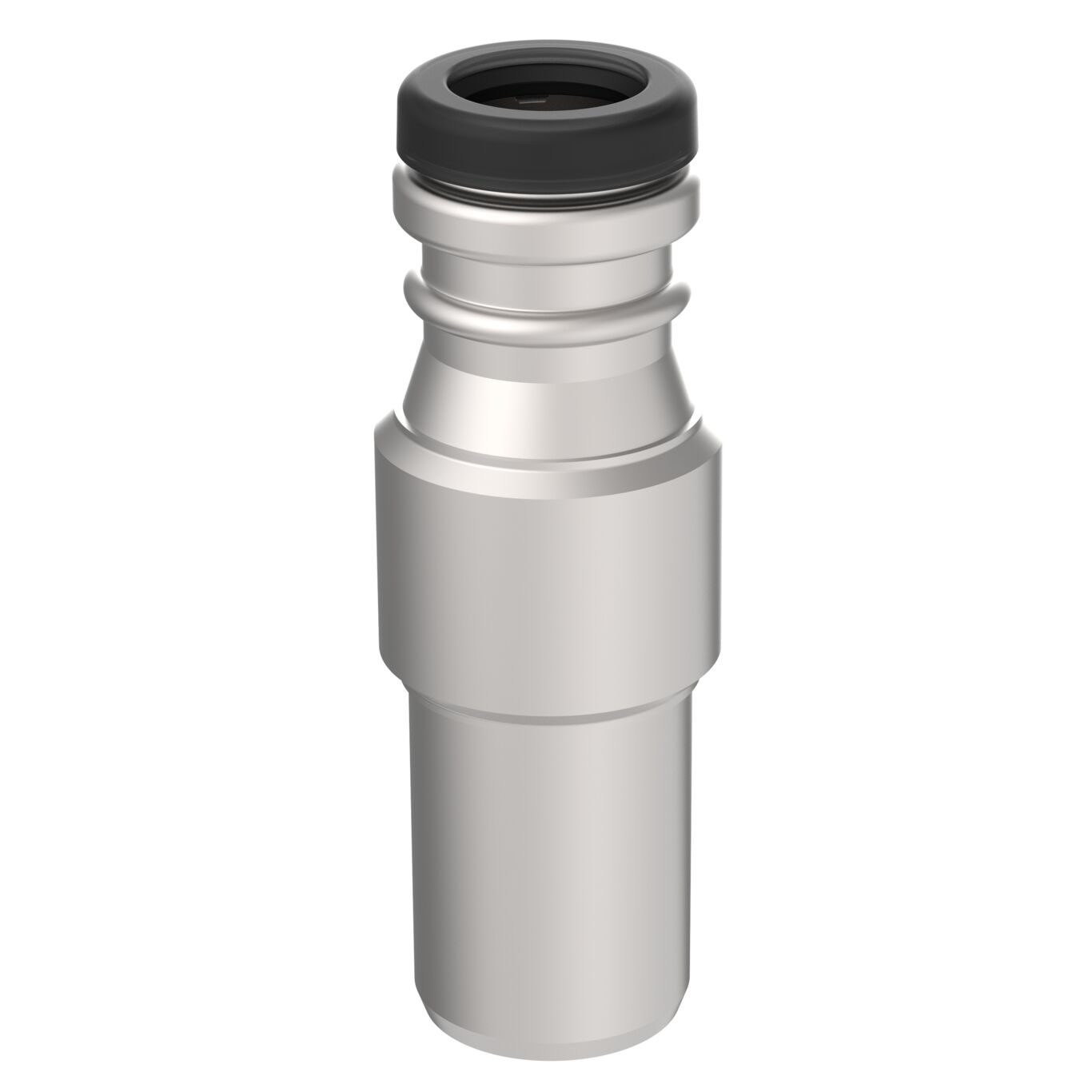

PENETRATION WITH SLEEVE
-Diameter: Ø32/50mm
-For wash basin
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 128 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 173 |
| Outlet dia. (mm) | 32 |
| Outlet Diameter (Inch) | 1-1/4 |
| Weight (kg) | 0.6 |
| Weight (lbs) | 1.32 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
